Compliance 1.2x50-12.3PF 500 - Surge Tester Waveform with 500Ω Output Impedance

Name: Compliance 1.2x50-12.3PF 500 - Surge Tester Waveform with 500Ω Output Impedance
Brand: Compliance West
SKU: Compliance1.2x50-12.3PF 500
Price: 15545.45 USD
Availability: InStock

0 reviews | Catalog: 00-MP1.2x50-12.3PF 500 | Model: Compliance West 1.2x50-12.3PF 500

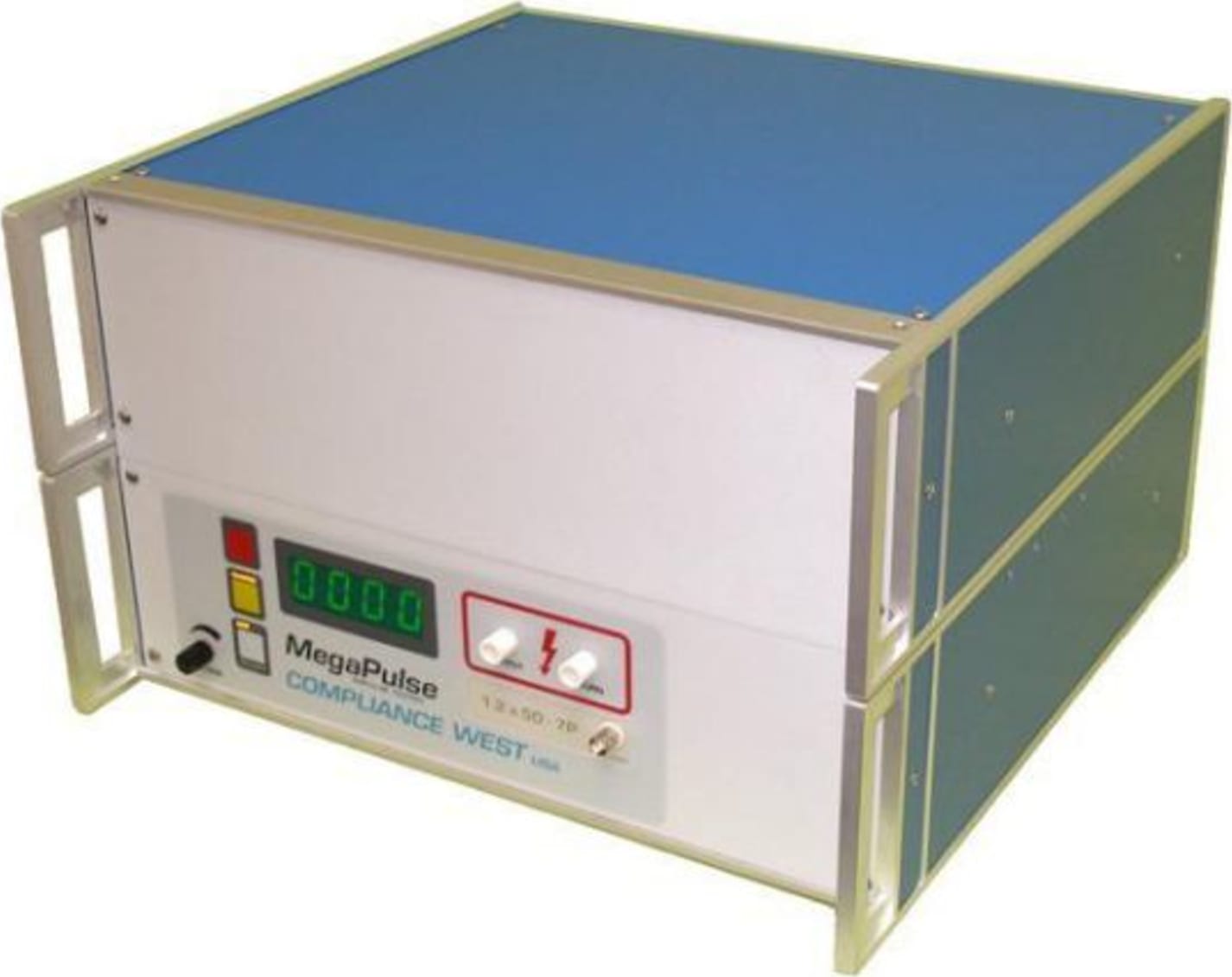

Compliance 1.2x50-12.3PF 500 Mega Pulse Surge Tester

Compare

Mega Pulse 1.2x50-12.3PF 500 ohm, 400-12.3kV, 3 sec charge time, 500 ohm virtual impedance; internal charge capacitor (bulk cap) can be charged to 12k.3V 0.5 Joules.

Up to 10 kV peak test voltage
Micro controller technologies, front panel voltage meter indicates test peak open circuit voltage and polarity
Output voltage and polarity are controlled manually from the front panel
Ergonomically designed for safety, speed and efficiency
Cables, manual and calibration certificate included
Optional USB Testminder, computer control
Optional external interlock disables HV output and defeats test when circuit is open
One year calibration cycle
One year warranty

View Product Details

List Price: $15,960.00

Your Price: $15,545.45

Sign-in for EDU Pricing!

In Stock:

View Payment Options

Request Quote

Non-Cancellable / Non-Returnable

Recommended for you

Compliance West 1.2x50-12.3PF 500 Accessories

Choose a Category

Software

for the Compliance West 1.2x50-12.3PF 500

Compliance West TMM TestMinder For MegaPulse P series w/repetitive pulse capability

Catalog: 00-TMM

(0)

In Stock!

Add to Cart

Compliance 1.2x50-12.3PF 500

Up to 10 kV peak test voltage
Micro controller technologies, front panel voltage meter indicates test peak open circuit voltage and polarity
Output voltage and polarity are controlled manually from the front panel
Ergonomically designed for safety, speed and efficiency

Surge Tester Waveform with 500Ω Output Impedance

A Compliance West surge Tester. That means it outputs a guaranteed waveform but won't break the bank. The tester outputs the waveform it is supposed to, time after time.

Built-in the USA. Email and phone support free for life. Reasonable repair and calibration charges. Timely and helpful customer service always.

Specifications
Output Peak	10 kV Tolerance ±3%
Open Circuit Rise Time	1.2uS, tolerance ±30% [Trise=1.67(T90% - T30%)]
Open Circuit Duration Time	50uS, tolerance ±20%
Short peak current	24A max for 500Ω testers
Voltage Control	Manually, by turning a knob in front panel
Polarity Control	Positive and negative. Alternating control available with optional computer control
Charge Time	1 second nominal
Voltage Display	5 digit LED display
Voltage Meter Accuracy	400 to 999V ±10V, 1000 to 12000V ± 1% full Scale
Duty Cycle	A pulse every 10s
Line Voltage	120V AC, 50/60Hz *optional different line voltage
Environmental
Operating Temperature	15 - 40 ºC
Relative Humidity Range	0 - 90% non - condensing
General
Dimensions	17" wide x 12" high x 17" in deep
Weight	40 lbs approx

Test Equipment General Attributes
Product Weight	40 LBS
Product Height	12 IN
Product Length	17 IN
Product Width	17 IN
Shipping Weight	50 LBS
Shipping Height	15.00 IN
Shipping Length	21.00 IN
Shipping Width	21.00 IN
