Comet SN204M - Temperature Probe Pt1000TR160/M, MiniDin Connector, Cable 20m

Name: Comet SN204M - Temperature Probe Pt1000TR160/M, MiniDin Connector, Cable 20m
Brand: Comet
SKU: CometSN204M
Price: 110.00 USD
Availability: InStock

0 reviews | Model: Comet SN204M

Compare

Temperature Probe Pt1000TR160/M, MiniDin Connector, Cable 20m

Temperature Probe with Pt1000 sensor
Connector: MiniDIN
Enclosure diameter: 6mm
Temperature range: -30 to +80 °C
Cable length: 20m

View Product Details

Your Price: $110.00

Sign-in for EDU Pricing!

In Stock:

View Payment Options

Request Quote

Items in This Series



Product	Comet SN204M Temperature Probe Pt1000TR160/M, MiniDin Connector, Cable 20m	Comet SN204 Temperature Probe Pt1000TR160/0, without Connector, Cable 20m	Comet SN204C Temperature Probe Pt1000TR160/C, CINCH Connector, Cable 20m	Comet SN204E Temperature Probe Pt1000TR160/E, ELKA Connector, Cable 20m
Price
In Stock
Application/Properties	General	General, Other	General	General
Max Temperature	80 C	80 C	80 C	80 C
Min Temperature	-30 C (-22 F)	-30 C (-22 F)	-30 C (-22 F)	-30 C (-22 F)
Compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Comet SN204M

Temperature Probe with Pt1000 sensor
Connector: MiniDIN
Enclosure diameter: 6mm
Temperature range: -30 to +80 °C
Cable length: 20m

Temperature Probe Pt1000TR160/M, MiniDin Connector, Cable 20m

This temperature sensor from Comet comes with a cable and plastic housing for measuring temperatures of gaseous and liquid substances or solids ranging from -30°C to 80 °C intended for universal application. The SN204M is a low cost multi-purpose probe that is watertight (IP67).

Comet SN204M Specifications
TEMPERATURE SENSOR
Measuring Range	30 to +80 °C
Accuracy	± (0.3 + 0.005 t) at °C
Accuracy Class	A
Time Response	t0.5 <12 s (in flowing water at > 0.2 m/s) t50 <12s, t90 <32s (in liquid)
Type of Sensing Element	Pt1000
Temperature Coefficient	3850 ppm / °C
GENERAL TECHNICAL DATA
Wire Connection	2-wire connection
Material of the Case	POLYAMIDE-based plastic

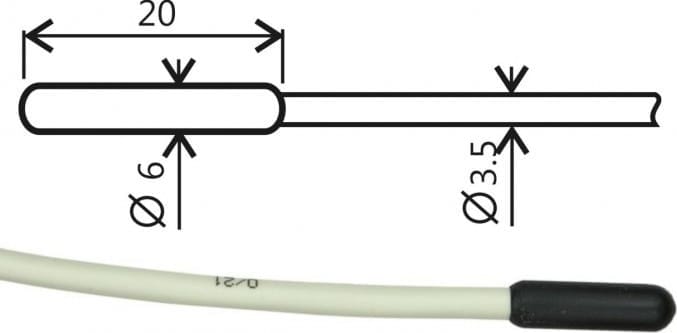

Dimensions of the Case	Length 20 mm; Diameter 5.7 ± 0.1 mm
Lead-in Cable	PVC shielded
Length of Lead-in Cable	20 meters
Connector	MiniDin
IP Protection	IP67
Warranty	30 months

Tech Specs

Accessories/Probes/Temperature Probes Template
Application/Properties	General
Max Temperature	80 C
Min Temperature	-30 C (-22 F)
Temperature Probe Types	PT1000 RTD
Wire Termination	Other
Insulation Material	PVC
Probe Length	20 MM (39.37 IN)
Lead Length	20 M (20000 MM)
Test Equipment General Attributes
Warranty	30 MONTHS (2.5 YEARS)
IP Rating	IP67
Product Weight	0.11 LBS
Product Length	20 MM (0.787 IN) Product Length Dimensions of the case
Product Width	5.7 MM (0.224 IN)
Shipping Weight	0.13 LBS
Country of Origin	Czech Republic
