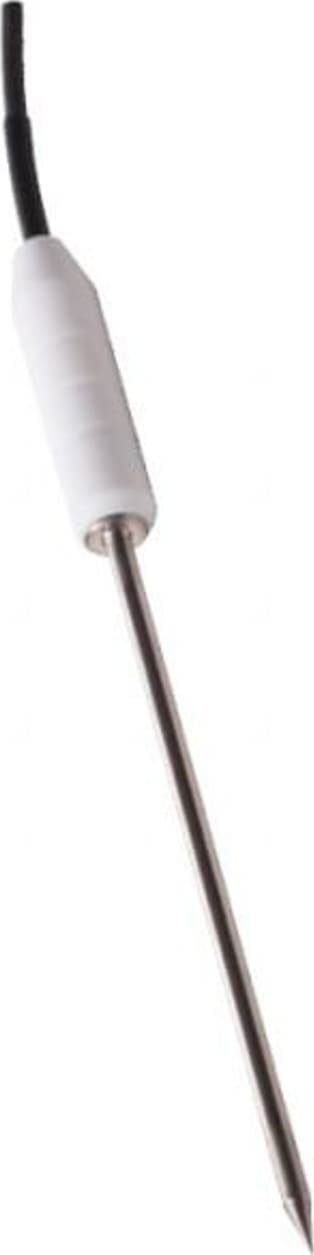

Comet SN181 - Temperature Probe 2061-200/0, without Connector, Cable 10m

Name: Comet SN181 - Temperature Probe 2061-200/0, without Connector, Cable 10m
Brand: Comet
SKU: CometSN181
Price: 242.00 USD
Availability: InStock

0 reviews | Model: Comet SN181

Compare

Temperature Probe 2061-200/0, without Connector, Cable 10m

2061-200/0
Temperature probe with Pt1000 sensor
Cable 10m
Hand-held pointed tip probe -50 to +200°C
Stainless steel 17241 for food industry with Teflon handle and silicon
IP68
Without connector
Time response t63<7s, t95<15s, measured in fluid

View Product Details

Your Price: $242.00

Sign-in for EDU Pricing!

In Stock:

View Payment Options

Request Quote

Recommended for you

Comet SN181 - Temperature Probe 2061-200/0, without Connector, Cable 10m

Temperature probe with Pt1000 sensor.

Hand-held pointed tip probe -50 to +200°C, stainless steel 17241 for food industry with Teflon handle and silicon cable 1 meter, IP68, without connector.

Time response t63<7s, t95<15s, measured in fluid.

Technical Parameters:
Type of element	Pt 1000 / 3850 ppm / °C
Accuracy class of element *	±(0,15 + 0,002 \|t\|) in °C
Temperature element wiring	Two-wire configuration
Measuring range	-30 °C to 250 °C
Power supply	SELV or PELV
Max. / recomm. measuring current	1 mA / 0,3 mA
Sensor IP code	IP 68 h 1m according to EN 60 529
Response time	< 5 sec (on smooth surface without paste)
Housing material	Stainless steel DIN 1.4301
Housing diameter	4,0 ± 0,1mm
Housing length	125 mm
Dielectric strength	500 VAC according to EN 60730-1
Insulation resistance	>200 MΩ at 500VDC, 25 ± 3 °C
Supply cable type	Shielded PTFE 2 x 0,14 mm²
Supply cable length
Supply leads resistance	0,254Ω/1 m at a temperature of 25 °C
Material of the grip	PTFE (white)
Diameter / length of the grip	14 mm / 57 mm
Weight	0,1 kg / 1 m

Tech Specs

Accessories/Probes/Temperature Probes Template
Max Temperature	200 C
Min Temperature	-50 C (-58 F)
Probe Length	4.9 IN
Lead Length	393.7 IN (25.40 MM)
Test Equipment General Attributes
IP Rating	IP68
Product Weight	0.11 LBS
Shipping Weight	0.13 LBS
Country of Origin	Czech Republic
