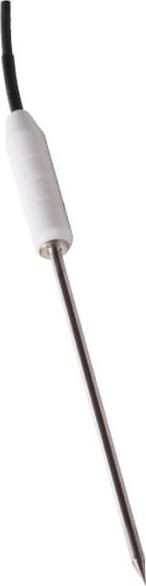

Comet SN178C - Temperature Probe 2061-200/C, CINCH Connector, Cable 1m

Name: Comet SN178C - Temperature Probe 2061-200/C, CINCH Connector, Cable 1m
Brand: Comet
SKU: CometSN178C
Price: 174.00 USD
Availability: InStock

0 reviews | Model: Comet SN178C

Compare

Temperature Probe 2061-200/C, CINCH Connector, Cable 1m

2061-200/C
Temperature probe with Pt1000 sensor
Hand-held pointed tip probe -50 to +200°C
Stainless steel 17241 for food industry with Teflon handle and silicon cable 1 meter
IP68
With CINCH connector

View Product Details

Your Price: $174.00

Sign-in for EDU Pricing!

In Stock:

View Payment Options

Request Quote

Recommended for you

Comet SN178C - Temperature Probe 2061-200/C, CINCH Connector, Cable 1m

Temperature probe with Pt1000 sensor.

Hand-held pointed tip probe -50 to +200°C, stainless steel 17241 for the food industry with Teflon handle and silicon cable 1 meter, IP68, with CINCH connector.

Time response t63<7s, t95<15s, measured in the fluid.

Comet SN178C Specifications
Type of element	Pt 1000 / 3850 ppm / °C
Accuracy class of element *	± (0,15 + 0,002\|t\|) in °C
Temperature element wiring	Two-wire configuration
Measuring range	-30 °C to 250 °C
Power supply	SELV or PELV
Max. / recomm. measuring current	1 mA / 0,3 mA
Sensor IP code	IP 68 h 1m according to EN 60 529
Response Time	τ0,5 ≤ 5 sec (on smooth surface without paste)
Housing Material	Stainless steel DIN 1.4301
Housing Diameter	4,0 ± 0,1 mm
Housing length	125 mm
Dielectric strength	500 VAC according to EN 60730-1
Insulation resistance	≥ 200 MΩ at 500VDC, 25 ± 3 °C
Supply cable type shielded	PTFE 2 x 0,14 mm2
Supply cable length
Supply leads resistance	0,254 Ω / 1 m at a temperature of 25 °C
Material of the grip	PTFE (white)
Diameter / length of the grip	14 mm / 57 mm
Weight	0,1 kg / 1 m

* for two wire connection the influence of the cable resistance must be add to measured value, for example at temperature 25°C must be add the value 0,066 °C / 1m.

Accessories/Probes/Temperature Probes Template
Max Temperature	200 C
Min Temperature	-122 F
Lead Length	39.37 IN (25.40 MM)
Test Equipment General Attributes
IP Rating	IP68
Shipping Weight	1.00 LBS
Country of Origin	Czech Republic
