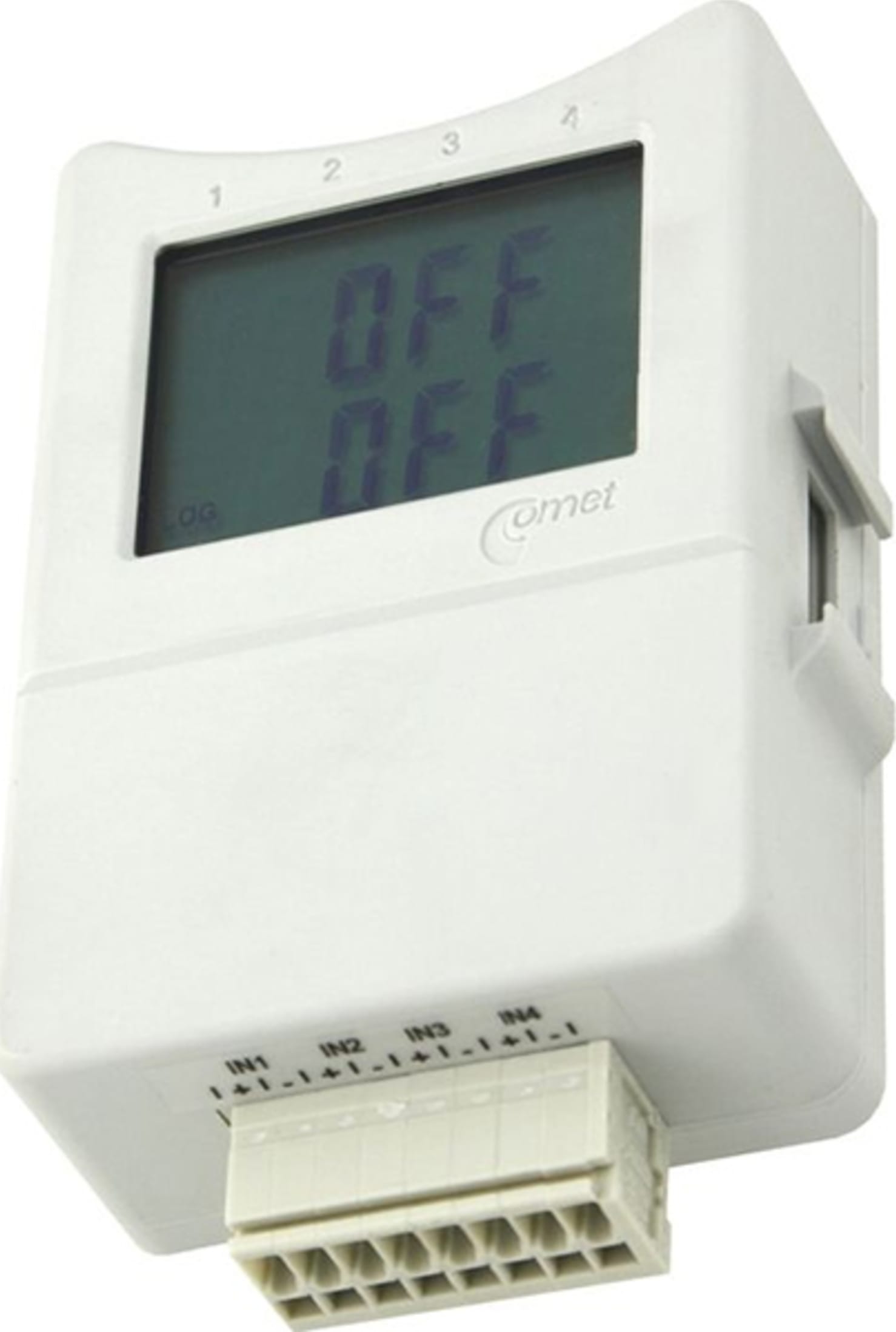

Event Data Logger
Four-channel data logger is designed for the record of two-state events. Values are stored in non-volatile electronic memory. Data transfer to the personal computer for further analysis is performed via USB, RS232, GSM, or Ethernet interface by means of a proper communication adapter.
Advantages of Data Logger
- Variability of PC connectivity - RS232, USB, Ethernet, GSM modem
- Permanent connection to the PC enabled, data is possible to download even during logging
- Large dual line display, switchable
- Robust case
- Easy installation, locking enabled
- Low power consumption from battery, battery life up to 4 years
- Indication of remaining battery life, easy replacement of the battery
- Logging start/stop is enabled in several ways: at a certain time and date programmed from a computer, by delivered magnet, or depending on logical state on channel 4 input
- Each logical state is possible to describe from the PC with a text of a maximum of 8 characters. The description is used on the list of the recorded values
- Each logger is possible to describe with the text of a maximum of 32 characters
- Each channel is possible to describe with the text of a maximum of 16 characters
- Password protection is enabled to prevent unauthorized manipulation with logger
