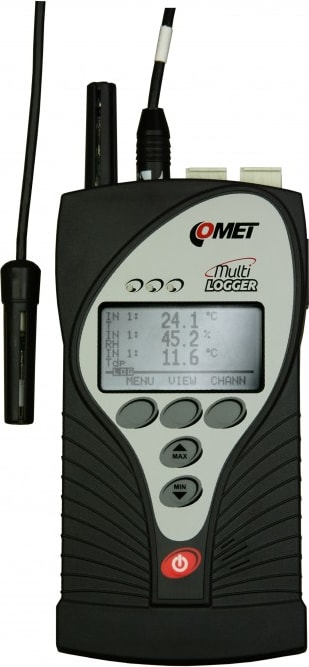

Comet M1322 - Ethernet Multilogger Thermo-Hygro-C02 Meter w/2 MiniDIN and 2 Terminals

Name: Comet M1322 - Ethernet Multilogger Thermo-Hygro-C02 Meter w/2 MiniDIN and 2 Terminals
Brand: Comet
SKU: CometM1322
Price: 1790.00 USD
Availability: InStock

0 reviews | Model: Comet M1322

Comet M1322 Ethernet Multilogger Thermo-Hygro-C02 Meter with 2 MiniDIN and 2 Terminals

Images (7)

Compare

Multilogger M1322 - hand held thermo-hygro-CO2 meter with 2 MiniDIN and 2 Terminals

M1322 Ethernet Multilogger - Thermo-Hygro-CO2 Meter with 2 MiniDIN and 2 Terminals
Measuring and processing input quantities; the maximum number of the measured and calculated quantities is 16
Models for measuring barometric pressure allow sea level recalculation
Finding and storing minimal and maximal values for each measured quantity
Acquiring autonomous time record of measured values, independent of the mains supply
Recorded values can be stored as separate samples in the recording time or as average/ minimal/ maximal values during the logging interval
Recording may be continuous, or only during an alarm optionally
Creating alarm states and perform actions
On-line monitoring of the measured values and states
Collecting and processing data in the central database

View Product Details

Your Price: $1,790.00

Sign-in for EDU Pricing!

In Stock:

View Payment Options

Request Quote

Items in This Series



Product	Comet M1322 Multilogger M1322 - hand held thermo-hygro-CO2 meter with 2 MiniDIN and 2 Term ...	Comet M1323 Multilogger M1323 - hand held thermo-hygro-CO2-barometer with 2 MiniDIN and 2 ...	Comet M1321 Multilogger M1321 - thermo-hygro-barometer with 2 MiniDIN and 2 Terminals	Comet M1140 Multilogger M1140 - hand held thermo hygro meter with 4 MiniDIN inputs	Comet M1200 Multilogger M1200 - hand held thermo meter with 4 Thermocouple inputs	Comet M1200E Datalogger M1200E - hand held thermo meter with 4 Thermocouple inputs
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Comet M1322 Accessories

Choose a Category

for the Comet M1322

Comet MP026 External audio unit for MS data loggers

Catalog: MP026

(0)

In Stock!

Add to Cart

Comet MLP008 Multilogger Holder for DIN Rail 35 mm

Catalog: MLP008

(0)

In Stock!

Add to Cart

Comet SP009 Wall Holder for External Probes DIGIL

Catalog: SP009

(0)

In Stock!

Add to Cart

Comet MLP006 Adapter for Connection of U/I Signals to Multilogger

Catalog: MLP006

(0)

In Stock!

Add to Cart

Comet TL-WIFI 150 Mbps Wireless N Nano Router TL-WR702N

Catalog: TL-WIFI

(0)

In Stock!

Add to Cart

Comet CV Analytical Software for Dataloggers and Multiloggers

Catalog: CV

(0)

In Stock! Contact us for price

Call Us

Comet DIGIL/M Digital Temperature/Humidity Probe with MiniDin Connector

Catalog: DIGIL/M

(0)

In Stock!

Add to Cart

Comet DIGIL/M-1 Digital Temperature/Humidity Probe with MiniDin Connector, 1m Cable

Catalog: DIGIL/M-1

(0)

In Stock!

Add to Cart

Comet DIGIL/M-10 Digital Temperature/Humidity Probe with MiniDin Connector, 10m Cable

Catalog: DIGIL/M-10

(0)

In Stock!

Add to Cart

Comet DIGIL/M-15 Temperature and Relative Humidity probe DigiL/M with filter, cable 15 m

Catalog: DIGIL/M-15

(0)

In Stock!

Add to Cart

Comet DIGIL/M-2 Digital Temperature/Humidity Probe with MiniDin Connector, 2m Cable

Catalog: DIGIL/M-2

(0)

In Stock!

Add to Cart

Comet DIGIL/M-5 Temperature and Relative Humidity probe DigiL/M with filter, cable 5 m

Catalog: DIGIL/M-5

(0)

In Stock!

Add to Cart

Comet DIGIS/M Digital Temperature/Humidity Probe with MiniDin Connector

Catalog: DIGIS/M

(0)

In Stock!

Add to Cart

Comet DIGIS/M-1 Digital Temperature/Humidity Probe with MiniDin Connector, 1m Cable

Catalog: DIGIS/M-1

(0)

In Stock!

Add to Cart

Comet DIGIS/M-10 Digital Temperature/Humidity Probe with MiniDin Connector, 10m Cable

Catalog: DIGIS/M-10

(0)

In Stock!

Add to Cart

Comet DIGIS/M-15 Digital Temperature/Humidity Probe with MiniDin Connector, 15m Cable

Catalog: DIGIS/M-15

(0)

In Stock!

Add to Cart

Comet DIGIS/M-2 Digital Temperature/Humidity Probe with MiniDin Connector, 2m Cable

Catalog: DIGIS/M-2

(0)

In Stock!

Add to Cart

Comet DIGIS/M-5 Digital Temperature/Humidity Probe with MiniDin Connector, 5m Cable

Catalog: DIGIS/M-5

(0)

In Stock!

Add to Cart

Comet SN104M Temperature Probe Pt1000TG8/M, MiniDin connector

Catalog: SN104M

(0)

In Stock!

Add to Cart

Comet SN105M Temperature Probe Pt1000TG8/M, MiniDin connector, 2m Cable

Catalog: SN105M

(0)

In Stock!

Add to Cart

Comet SN108M Temperature Probe Pt1000TG8/M, MiniDin Connector, 5m Cable

Catalog: SN108M

(0)

In Stock!

Add to Cart

Comet SN113M Temperature Probe Pt1000TG8/M, MiniDin Connector, 10m Cable

Catalog: SN113M

(0)

In Stock!

Add to Cart

Comet SN164M Temperature Probe Pt1000TG7/M, MiniDin Connector

Catalog: SN164M

(0)

In Stock!

Add to Cart

Comet SN165M Temperature Probe Pt1000TG7/M, MiniDin Connector, Cable 2m

Catalog: SN165M

(0)

In Stock!

Add to Cart

Comet SN166M Temperature Probe Pt1000TG7/M, MiniDin Connector, Cable 5m

Catalog: SN166M

(0)

In Stock!

Add to Cart

Comet SN167M Temperature Probe Pt1000TG7/M, MiniDin Connector, Cable 10m

Catalog: SN167M

(0)

In Stock!

Add to Cart

Comet SN168M Temperature Probe 2304-220/M, MiniDin Connector, Cable 1m

Catalog: SN168M

(0)

In Stock!

Add to Cart

Comet SN169M Temperature Probe 2021-150/M, MiniDin Connector, Cable 1m

Catalog: SN169M

(0)

In Stock!

Add to Cart

Comet SN175M Temperature Probe 2034-220/M, MiniDin Connector, Cable 1m

Catalog: SN175M

(0)

In Stock!

Add to Cart

Comet SN178M Temperature Probe 2061-200/M, MiniDin Connector, Cable 1m

Catalog: SN178M

(0)

In Stock!

Add to Cart

Comet SN179M Temperature Probe 2061-200/M, MiniDin Connector, Cable 2m

Catalog: SN179M

(0)

In Stock!

Add to Cart

Comet SN180M Temperature Probe 2061-200/M, MiniDin Connector, Cable 5m

Catalog: SN180M

(0)

In Stock!

Add to Cart

Comet SN181M Temperature Probe 2061-200/M, MiniDin Connector, Cable 10m

Catalog: SN181M

(0)

In Stock!

Add to Cart

Comet SN182M Temperature Probe PTS350A-5/M, MiniDin Connector, Cable 5m

Catalog: SN182M

(0)

In Stock!

Add to Cart

Comet SN183M Temperature Probe PTS350A-10/M, MiniDin Connector, Cable 10m

Catalog: SN183M

(0)

In Stock!

Add to Cart

Comet SN185M Temperature Probe Pt1000TGL40/M, MiniDin Connector, Cable 1m

Catalog: SN185M

(0)

In Stock!

Add to Cart

Comet SN186M Temperature Probe Pt1000TGL40/M, MiniDin Connector, Cable 2m

Catalog: SN186M

(0)

In Stock!

Add to Cart

Comet SN200M Temperature Probe Pt1000TR160/M, MiniDin Connector, Cable 2m

Catalog: SN200M

(0)

In Stock!

Add to Cart

Comet SN201M Temperature Probe Pt1000TR160/M, MiniDin Connector, Cable 5m

Catalog: SN201M

(0)

In Stock!

Add to Cart

Comet SN202M Temperature Probe Pt1000TR160/M, MiniDin Connector, Cable 10m

Catalog: SN202M

(0)

In Stock!

Add to Cart

Comet SN203M Temperature Probe Pt1000TR160/M, MiniDin Connector, Cable 15m

Catalog: SN203M

(0)

In Stock!

Add to Cart

Comet SN210M Stick-in Probe 2091-250/M, MiniDin Connector, Cable 1m

Catalog: SN210M

(0)

In Stock!

Add to Cart

Comet SN211M Stick-in Probe 2091-250/M, MiniDin Connector, Cable 2m

Catalog: SN211M

(0)

In Stock!

Add to Cart

Comet SN212M Stick-in Probe 2091-250/M, MiniDin Connector, Cable 5m

Catalog: SN212M

(0)

In Stock!

Add to Cart

Comet SN213M Stick-in Probe 2091-250/M, MiniDin Connector, Cable 10m

Catalog: SN213M

(0)

In Stock!

Add to Cart

Comet SN232M Temperature Probe Pt1000TG68/M, MiniDin Connector, Cable 2m

Catalog: SN232M

(0)

In Stock!

Add to Cart

Comet SN233M Temperature Probe Pt1000TG68/M, MiniDin Connector, Cable 5m

Catalog: SN233M

(0)

In Stock!

Add to Cart

Comet SN234M Temperature Probe Pt1000TG68/M, MiniDin Connector, Cable 10m

Catalog: SN234M

(0)

In Stock!

Add to Cart

Comet SN243M Ambient Temperature Probe with Pt1000 Sensor, 200-80/M

Catalog: SN243M

(0)

In Stock!

Add to Cart

Comet SN263M Temperature Probe Pt1000TG8Ex/M, MiniDin Connector, for ATEX Zone II

Catalog: SN263M

(0)

In Stock!

Add to Cart

Comet M1322

Up to 16 values can be calculated from 4 connected sensors/signals.
This is the sum of measured and calculated values. E.g. dew point temperature, absolute humidity, specific enthalpy, inter-channel conversion (difference between two connected temperature sensors)

Ethernet Multilogger Thermo-Hygro-C02 Meter w/2 MiniDIN and 2 Terminals

The Multilogger has been designed for measuring and recording physical and electric quantities with an adjustable logging interval from 1 second to 24 hours. The device is equipped with 4 inputs (connectors) for external probes or signals. Moreover, some versions also include an internal atmospheric pressure and/or CO2 concentration sensor. The production line consists of several models with various combinations of the input ranges of the measured quantities. The Multilogger can be used either as a stationary or portable device.

Communication

To communicate with a PC and other systems, the device is equipped with a USB port (located on the side of the device), RS232 and Ethernet.
The multilogger comes with a USB and Ethernet interface. For WiFi communication, the multilogger can be connected to a TP-LINK WiFi router.

ETHERNET interface allows you to

Send e-mail if the Multilogger is in an alarm state. The Multilogger can also be connected to Local Are Network and comes with a web browser. COMET also supply a SQL Database that allows the customer to store, download and view historical data in detail for full analysis.
In case of connection failure, use DATALINK for upload values to COMET Database
Third-party applications to read the actual measured values using universal protocols SNMPv1 and XML

Output Alarm Out

Output can be used for controlling other devices when an alarm is launched, such as an external buzzer, telephone dialer, etc.
Users can receive alarms if the values go outside the parameters set. Alarms are indicated through an internal buzzer, 3 LEDs, or email alerts via Ethernet port.

Power Supply

Power supply is provided from the 5V DC AC adapter and operation of the device (except Ethernet interface) is backed up by replaceable batteries.
The device can be used permanently installed or as a portable device with the option to charge batteries directly using the AC adapter or using standard alkaline batteries size AA.

Software

Comet Database

Complex solution for data acquisition, analyzing, and sending SMS or email alarms. Easy to use and high flexible Database software for all Comet Data Loggers and Transmitters.

Comet Vision

Free configuration software for Comet Multiloggers.

Applications

Server rooms monitoring

Temperature/humidity monitoring of the server rooms, SNMP monitoring, alert by email and Syslog

Building HVAC management

Temperature/humidity monitoring of buildings, history data to Comet Database, alert by email or SMS

Warehouses

Temperature/humidity monitoring of storage, history data to Comet Database

Museums, archives, galleries

Temperature/humidity is requested for rooms where old valuable documents are stored, history data to Comet Database, alert by email or SMS

Factories and manufacturing

Temperature/humidity monitoring for food processing industry, pharmaceutical industry, aerospace industry, etc.

Air-conditioned rooms

Temperature rising indicates cooling fault, alert by email

Inputs:

Temperature
Humidity
Atmospheric Pressure
CO2 Level
Voltage
Current
Pulse Counting
Two-State Signal

Alarms:

E-mail, SNMP Trap
Two-State Signal
Display
Audio Signal

General Specifications
Temperature operating range:	-10 to +60°C
Humidity operating range:	5% to 85%RH, without condensation
Accuracy and range of dew point temperature output:	±1.5°C at ambient temperature lower than 25°C and RH>30% range -60 to +80°C
Temperature compensation of the humidity sensor:	all temperature range
Measuring interval:	1s to 24 hours
Available temperature units:	degrees Celsius, degrees Fahrenheit
Computed values:	dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy
Memory capacity (approx.):	1 000 000 values (noncyclic record), 600 000 values (cyclic record)
IP protection:	IP20
Communication interface:	Ethernet, USB, RS232
Ethernet communication protocols:	WWW, SNMPv1, XML, DATALINK
Alarm protocols:	E-Mail
Configuration:	Comet Vision, WWW configuration
Power:	AC adapter 230Vac/5Vdc (neccessary for Ethernet interface) NiMH rechargeable batteries 3x 1.2V AA (backup or portable application) or Alkaline batteries 3x 1.5V AA (for portable applications)
Power connector:	co-axial, diameter 5.5 x 2.1mm
Dimensions:	178 x 95 x 37mm (W x H x D), without attached cables

Tech Specs

Test Equipment General Attributes
Warranty	3 YEARS
Interfaces I/O	LAN / Ethernet, RS-232, USB
IP Rating	IP20
Product Weight	380 GRAMS (0.838 LBS)
Product Height	3.74 IN
Product Length	1.46 IN
Product Width	7.00 IN
Shipping Weight	1.00 LBS
Country of Origin	Czech Republic

0

Out of 5

Average Customer Review

Share your thoughts with other customers

Write a Review

Add to cart

Compare

Real people, here to help you.

Get Connected

Join the community and find out what we're up to, experience live product releases, webinars and more!

How Can We Help You?

Questions?

Log in to Your Account

Not a member yet? It's FREE!

Top Categories

Comet M1322 - Ethernet Multilogger Thermo-Hygro-C02 Meter w/2 MiniDIN and 2 Terminals

Items in This Series

Recommended for you

Comet M1322 Accessories

for the Comet M1322

Comet MP026 External audio unit for MS data loggers

Comet MLP008 Multilogger Holder for DIN Rail 35 mm

Comet SP009 Wall Holder for External Probes DIGIL

Comet MLP006 Adapter for Connection of U/I Signals to Multilogger

Comet TL-POE Splitter

Comet TL-WIFI 150 Mbps Wireless N Nano Router TL-WR702N

Comet CDB Database Software

Comet CV Analytical Software for Dataloggers and Multiloggers

Comet DIGIL/M Digital Temperature/Humidity Probe with MiniDin Connector

Comet DIGIL/M-1 Digital Temperature/Humidity Probe with MiniDin Connector, 1m Cable

Comet DIGIL/M-10 Digital Temperature/Humidity Probe with MiniDin Connector, 10m Cable

Comet DIGIL/M-15 Temperature and Relative Humidity probe DigiL/M with filter, cable 15 m

Comet DIGIL/M-2 Digital Temperature/Humidity Probe with MiniDin Connector, 2m Cable

Comet DIGIL/M-5 Temperature and Relative Humidity probe DigiL/M with filter, cable 5 m

Comet DIGIS/M Digital Temperature/Humidity Probe with MiniDin Connector

Comet DIGIS/M-1 Digital Temperature/Humidity Probe with MiniDin Connector, 1m Cable

Comet DIGIS/M-10 Digital Temperature/Humidity Probe with MiniDin Connector, 10m Cable

Comet DIGIS/M-15 Digital Temperature/Humidity Probe with MiniDin Connector, 15m Cable

Comet DIGIS/M-2 Digital Temperature/Humidity Probe with MiniDin Connector, 2m Cable

Comet DIGIS/M-5 Digital Temperature/Humidity Probe with MiniDin Connector, 5m Cable

Comet SN104M Temperature Probe Pt1000TG8/M, MiniDin connector

Comet SN105M Temperature Probe Pt1000TG8/M, MiniDin connector, 2m Cable

Comet SN108M Temperature Probe Pt1000TG8/M, MiniDin Connector, 5m Cable

Comet SN113M Temperature Probe Pt1000TG8/M, MiniDin Connector, 10m Cable

Comet SN164M Temperature Probe Pt1000TG7/M, MiniDin Connector

Comet SN165M Temperature Probe Pt1000TG7/M, MiniDin Connector, Cable 2m

Comet SN166M Temperature Probe Pt1000TG7/M, MiniDin Connector, Cable 5m

Comet SN167M Temperature Probe Pt1000TG7/M, MiniDin Connector, Cable 10m

Comet SN168M Temperature Probe 2304-220/M, MiniDin Connector, Cable 1m

Comet SN169M Temperature Probe 2021-150/M, MiniDin Connector, Cable 1m

Comet SN175M Temperature Probe 2034-220/M, MiniDin Connector, Cable 1m

Comet SN178M Temperature Probe 2061-200/M, MiniDin Connector, Cable 1m

Comet SN179M Temperature Probe 2061-200/M, MiniDin Connector, Cable 2m

Comet SN180M Temperature Probe 2061-200/M, MiniDin Connector, Cable 5m

Comet SN181M Temperature Probe 2061-200/M, MiniDin Connector, Cable 10m

Comet SN182M Temperature Probe PTS350A-5/M, MiniDin Connector, Cable 5m

Comet SN183M Temperature Probe PTS350A-10/M, MiniDin Connector, Cable 10m

Comet SN185M Temperature Probe Pt1000TGL40/M, MiniDin Connector, Cable 1m

Comet SN186M Temperature Probe Pt1000TGL40/M, MiniDin Connector, Cable 2m

Comet SN200M Temperature Probe Pt1000TR160/M, MiniDin Connector, Cable 2m

Comet SN201M Temperature Probe Pt1000TR160/M, MiniDin Connector, Cable 5m

Comet SN202M Temperature Probe Pt1000TR160/M, MiniDin Connector, Cable 10m

Comet SN203M Temperature Probe Pt1000TR160/M, MiniDin Connector, Cable 15m

Comet SN210M Stick-in Probe 2091-250/M, MiniDin Connector, Cable 1m

Comet SN211M Stick-in Probe 2091-250/M, MiniDin Connector, Cable 2m

Comet SN212M Stick-in Probe 2091-250/M, MiniDin Connector, Cable 5m

Comet SN213M Stick-in Probe 2091-250/M, MiniDin Connector, Cable 10m

Comet SN232M Temperature Probe Pt1000TG68/M, MiniDin Connector, Cable 2m

Comet SN233M Temperature Probe Pt1000TG68/M, MiniDin Connector, Cable 5m

Comet SN234M Temperature Probe Pt1000TG68/M, MiniDin Connector, Cable 10m

Comet SN243M Ambient Temperature Probe with Pt1000 Sensor, 200-80/M

Comet SN263M Temperature Probe Pt1000TG8Ex/M, MiniDin Connector, for ATEX Zone II

Comet M1322

Ethernet Multilogger Thermo-Hygro-C02 Meter w/2 MiniDIN and 2 Terminals

Tech Specs

Test Equipment General Attributes

0

Featured Review

We'd love to hear from you

Real people, here to help you.

Get Connected

My Account

Promotions & Offers

Resources

Company
