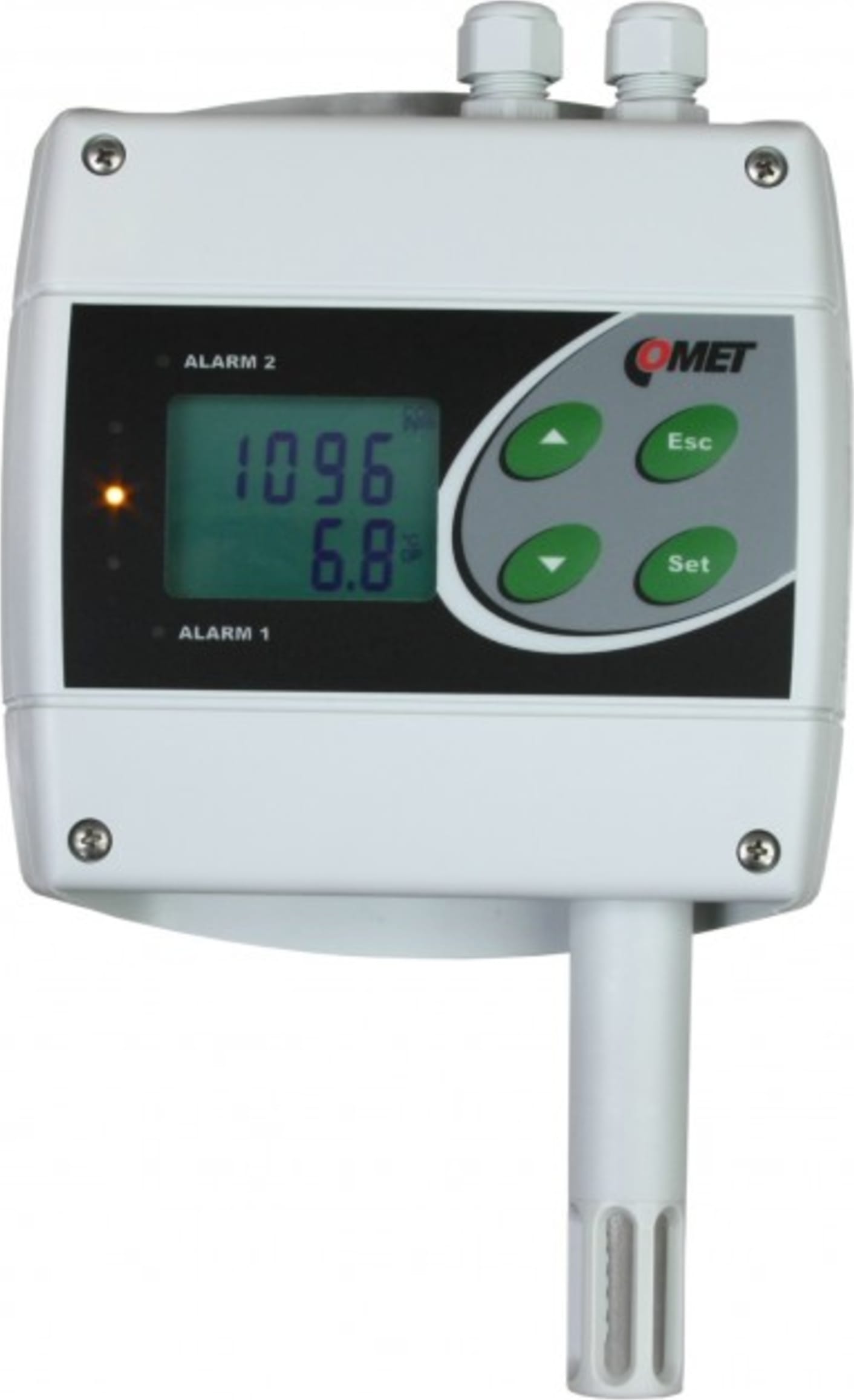

Temperature, Humidity and CO2 Regulator w/Ethernet Interface and Two Output Relays
The CO2 measurement is based on a 2-source, 2-beam process. CO2 measurement with long-term stability is guaranteed thanks to the proven non-dispersive infrared (NDIR) CO2 measurement cell. The unique patented auto-calibration procedure compensates for aging of the infrared source and guarantees high reliability, long term stability, and eliminates the need of periodical recalibration in the field.
The CO2 measurement is based on a 2-source, 2-beam process. CO2 measurement with long-term stability is guaranteed thanks to the proven non-dispersive infrared (NDIR) CO2 measurement cell. The unique patented auto-calibration procedure compensates for aging of the infrared source and guarantees high reliability, long term stability, and eliminates the need of periodical recalibration in the field.
High precision capacitive polymer sensor ensures excellent long-term calibration stability and ultimate accuracy. Measured values are also converted to other humidity interpretation: dew point temperature, absolute humidity, specific humidity, mixing ratio, and specific enthalpy.
The CO2 measurement is based on a 2-source, 2-beam process. CO2 measurement with long-term stability is guaranteed thanks to the proven non-dispersive infrared (NDIR) CO2 measurement cell. The unique patented auto-calibration procedure compensates for aging of the infrared source and guarantees high reliability, long term stability, and eliminates the need of periodical recalibration in the field.
These days there is a high demand for online monitoring and uninterruptable records of different types of values. With very fast development of computer technologies, it is still easier and easier to connect different kind of monitoring devices directly to Ethernet lines, to places where it was not possible before. If the Ethernet net has a direct connection to the internet. This high requirement could be done easily by Web Sensors and sensors with Ethernet output which can ensure long-term reliability, stable parameters, and very easy installation and usage. The devices can be protected against blackouts and data loss at the customer’s site. Of course, PoE supply is an option.
Continuous monitoring of critical parameters such as temperature and relative humidity can be very easily done by the help of Web Sensors. This production line consists of sensors for measuring temperature, relative humidity, CO2 concentration, atmospheric pressure, and the 4-20mA signal. Most sensors are equipped with an LCD display and can be easily incorporated into the existing network infrastructure.
The Web Sensors evaluate the measured values and in case of exceeding the alarm limits, the unit will send an email to a pre-set address, so this ensures that you are always informed of the conditions in your offices, server rooms, warehouses and factories, and everywhere where is necessary to monitor the supported values. By connecting directly to a computer network the thermometer or humidity meter can be integrated into the control systems of different manufacturers using SNMP, MODBUS TCP, SOAP, syslog. Of course, data in many formats is also available, for example, XML and so on.
Additional Features:
- CO2 concentration
- Temperature and humidity
- Dew point and computed quantities
- Relay outputs
- Binary inputs
- Dual-line LCD
- Acoustic alarms
- Ethernet interface
- WWW server
- Email
- History export to CSV
- ModbusTCP protocol
- SNMP protocol
- SNMP Trap
- SOAP protocol
- Syslog protocol
- SNTP protocol - time synchronization
Applications
- Building management
- Warehouses
- Factories and manufacturing
Software
- Comet Database
- T-Sensor software
- SensorReader software
