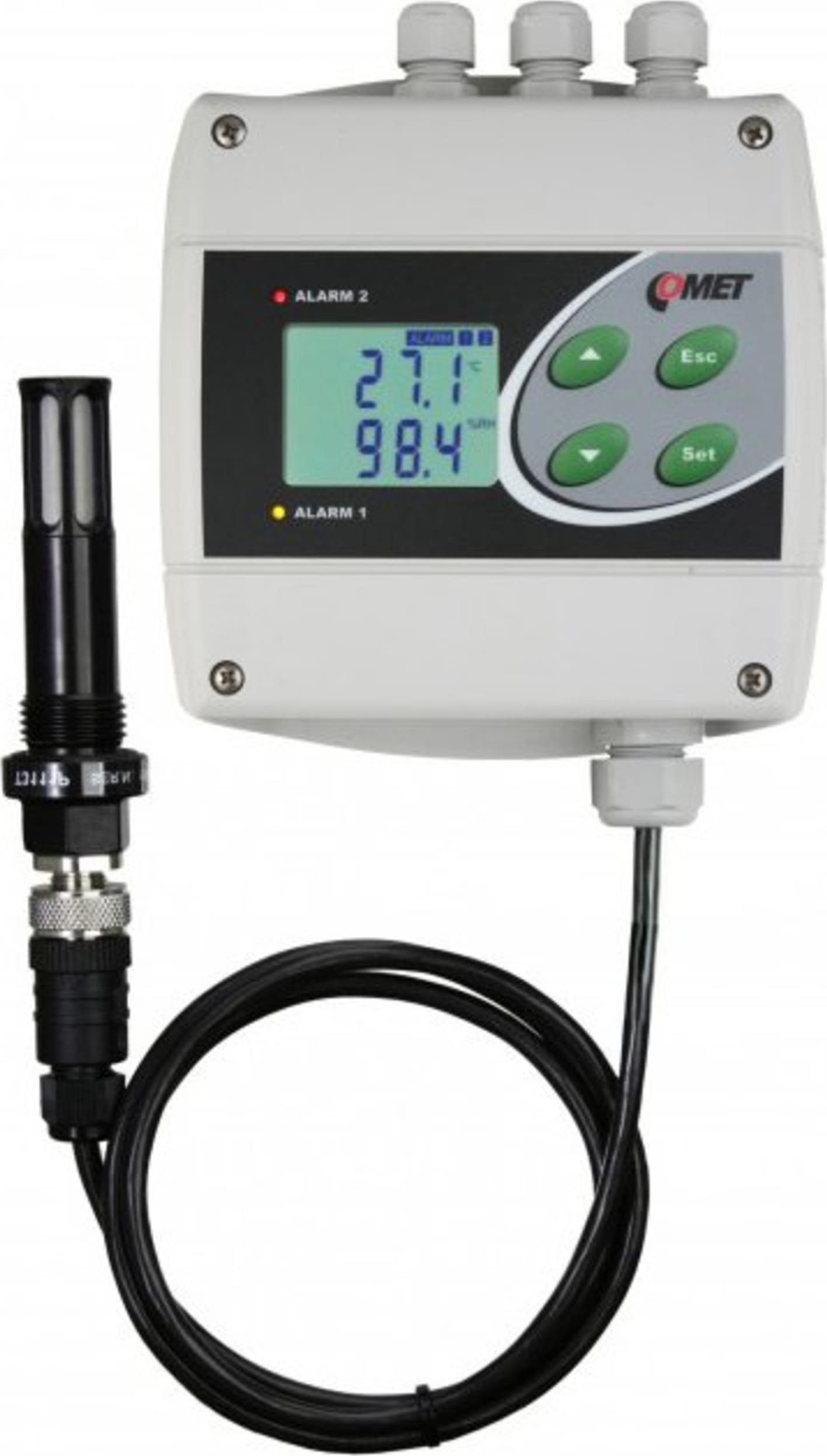

Compressed Air Temperature and Humidity Regulator
Humidistat, thermostat with two relay outputs. T+RH probe from hard-anodized duralumin for compressed air up to 25 bars. Outdoor, indoor use.
Humidity, temperature probe on a cable. Measured values are also converted to other humidity interpretation: dew point temperature, absolute humidity, specific humidity, mixing ratio, specific enthalpy.
The device is supplied with a T+RH probe with a 1m cable. Cable lengths 2m or 4m are available optionally.
Humidistat is designed for two-state control of e.g. heating, ventilation, humidifier, dehumidifier, etc. Transmitter is equipped with two relay outputs for alarm indication or control of external devices. Each relay can be assigned to any measured or computed value. For each relay setting of delay, hysteresis, an audible alarm is enabled. Measured temperature and relative humidity are recalculated to other humidity interpretations - dew point temperature, absolute humidity, specific humidity, mixing ratio, or specific enthalpy.
Parameters are easily adjustable from the regulator keyboard or from the computer. Large dual line LCD for simultaneous display of temperature, relative humidity, or other calculated humidity interpretation is an advantage.
State-of-the-art capacitive polymer sensor ensures excellent calibration long-term stability, inertia against water, and condensation. Transmitter is designed for use in a non-aggressive environment.
T+RH probe from hard-anodized duralumin with 1m cable. Cable lengths 2m or 4m are available optionally.
