• Frequency Range: 150 kHz to 30 MHz
• Meets applicable requirements of EN 55022: 2010+AC:2011 (CISPR 22: 2008, Edition 6.0) and CISPR 16-1-2: 2014, Edition 2.0
• For disturbance measurements on a single, unshielded, balanced pair
• Provided with Cat. 3 & Cat. 5 LCL Adapters
• Circuit concept per figure D.1 of EN 55022: 2010+AC:2011 (CISPR 22: 2008, Edition 6.0)

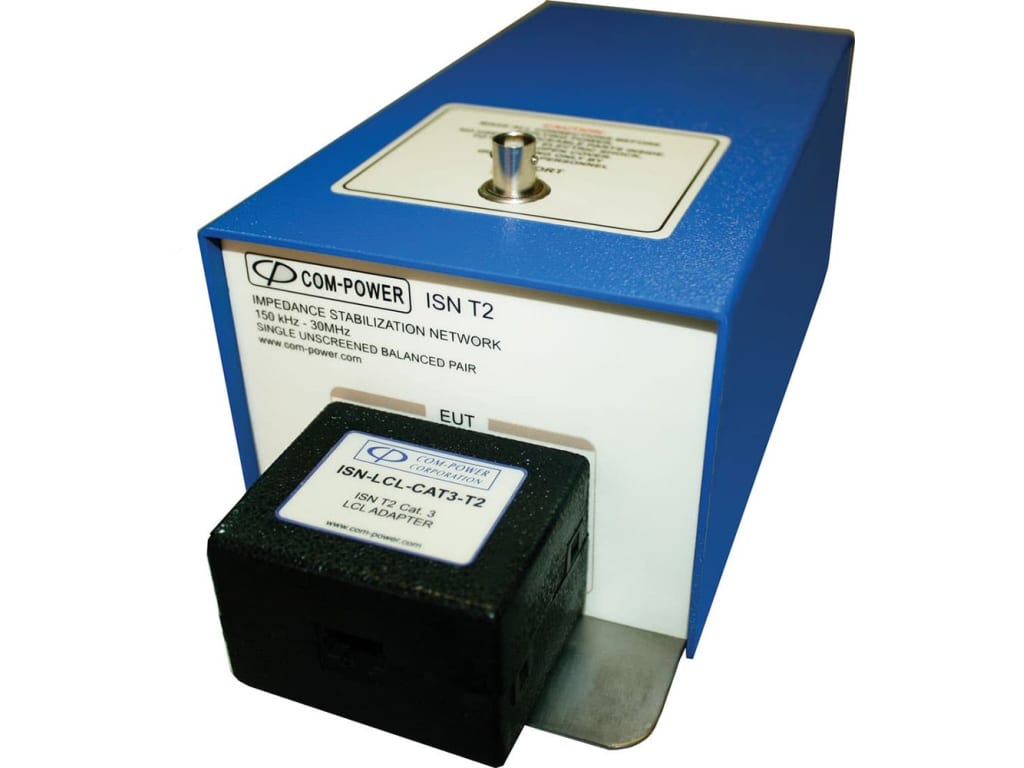

The Com-Power ISN T2 is used for common-mode disturbance voltage measurements on ports with a single, unshielded, balanced pair for Cat. 3 or Cat. 5 cabled networks. The RF input/output port is a 50Ω female BNC connector, located on the top of the ISN. The ISN is equipped with D-sub 25 pin female connectors located on the front and rear panels for connection to the LCL and connecting adapter, respectively
