0 reviews | Model: Com-Power AD-100
30 MHz to1 GHz Dipole Antenna Set (set of four baluns)
List Price: $2,993.00
We accept purchase orders and all major credit cards. We also provide financing via Klarna at checkout for qualifying purchases.
Have a question or need to apply for payment terms?
Contact us.
Have a question? Ask an expert.
(0)
In Stock!
(1)

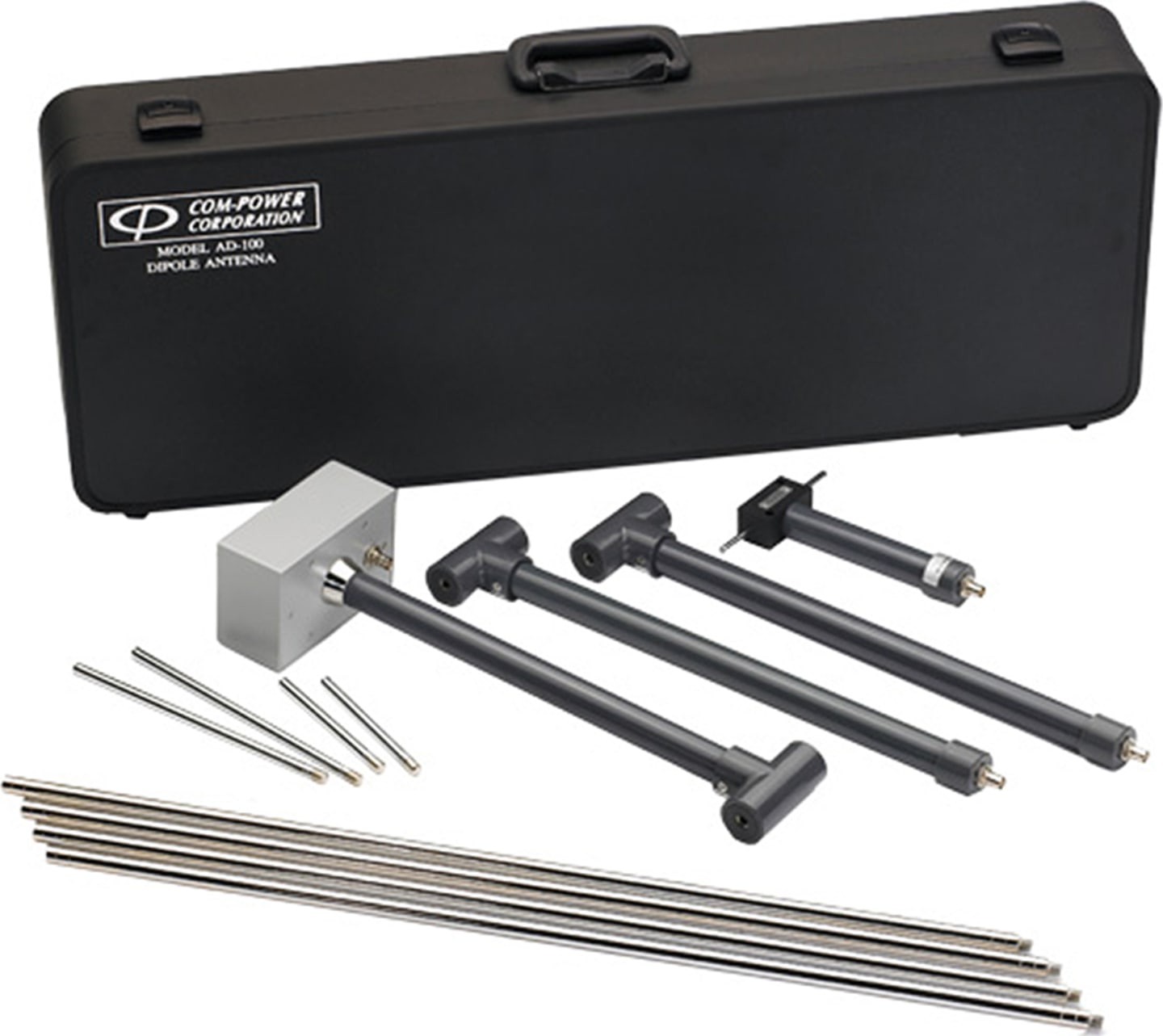

The AD-100A is a Half-Wave Tuned Dipole Antenna Set, complete with custom carrying/storage case. The set includes the four standard antenna balans described in ANSI C63.5, along with all of the necessary antenna elements for the frequency range of 30 MHz to 1 GHz. This frequency range is divided into four sub ranges, corresponding to the frequency range of each individual balan, as shown in the following table.
Dipole antennas are considered to be the reference (or standard) antenna. They are still the preferred antennas for discrete frequency field strength measurements associated with Normalized Site Attenuation (NSA) calibrations of Open Area Test Sites (OATS) and Semi-Anechoic Chambers (SAC), and for most radiated electromagnetic interference (EMI) compliance tests. Also, they are the only type of antenna that is to be used for calibration of broadband antennas (such as biconical dipoles log periodic dipole arrays, etc.) when employing the reference antenna method described in ANSI C63.5: 2006. Dipoles are also used as the “substitution antenna” for Effective Radiated Power (ERP) and/or Effective Isotropic Radiated Power (EIRP) tests of intentional radiators (RF transmitters).
The AD-100A Tuned Dipole Antenna Set is designed based on the Reference Antenna Example Drawings given in Appendix E of ANSI C63.5: 2006. As part of the manufacturing process, the insertion loss of each balun is verified to be less than 0.5 dB, and the VSWR less than 1.5:1 with the elements tuned to resonance at a low, middle and high end of each balun’s respective frequency range. The antennas are designed for durability using high quality materials. This makes the AD-100A set the ideal choice for use in laboratory environments.
