• HV connection adapter provides 4 sets of output terminals
• Maximum operating voltage: 10 kV

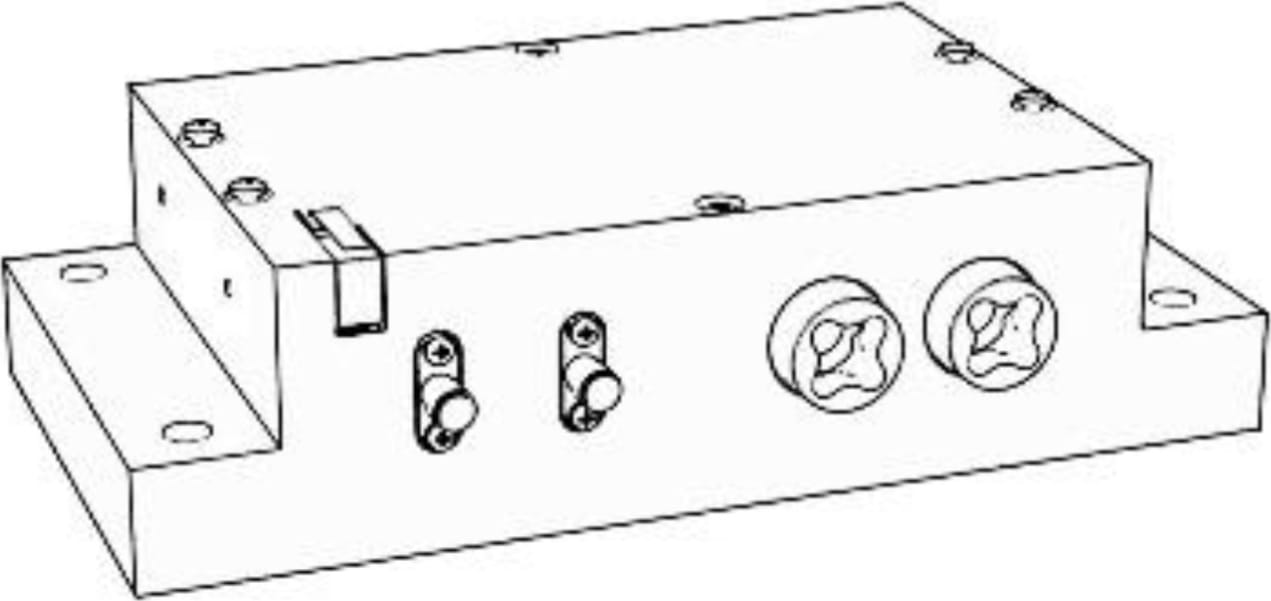

The B195001 HV connection adapter provides 4 sets of output terminals for connecting the adapter cables.

1 – RTN/Low: This terminal connects to the RTN/LOW terminal on the high voltage module of the 19501 partial discharge tester, which is a low potential terminal. This terminal is almost equal to the ground terminal on the chassis.

2 – Low Contact: This terminal connects to the HVCC-RTN terminal on the high voltage module of the 19501 partial discharge tester.

3 – HV Contact: This terminal connects to the HVCC-HV terminal on the high voltage module of the 19501 partial discharge tester.

4 – HV: This terminal connects to the HV terminal on the high voltage module of the 19501 partial discharge tester. Do not touch during testing and when the DANGER light is on.

1 – Interlock: This terminal is reserved for B195002 fixture and it is invalid to use it on the B195001.

2 – GND: Please use the enclosed ground wire to connect the GND terminal on the high voltage module of the 19501 partial discharge tester.
