Cementex CPPM-6702 0-40kV Digital Voltage Meter

• 0-40kV Digital Voltage Meter
• The digital display has a lighted background which can be switched on by operator; if needed, during use in poor light conditions.
• The meter is sold state design and eliminates problems associated with analog type meters.
• The unit is powered by a readily available 9-volt battery and is field replaceable.

The coiled, self-retracting cable is 16" retracted and 10' when fully extended. The design simplifies the use of the instrument.

Compact storage is provided by a rugged plastic case which can also accommodate a pair of add-on resistor extensions.

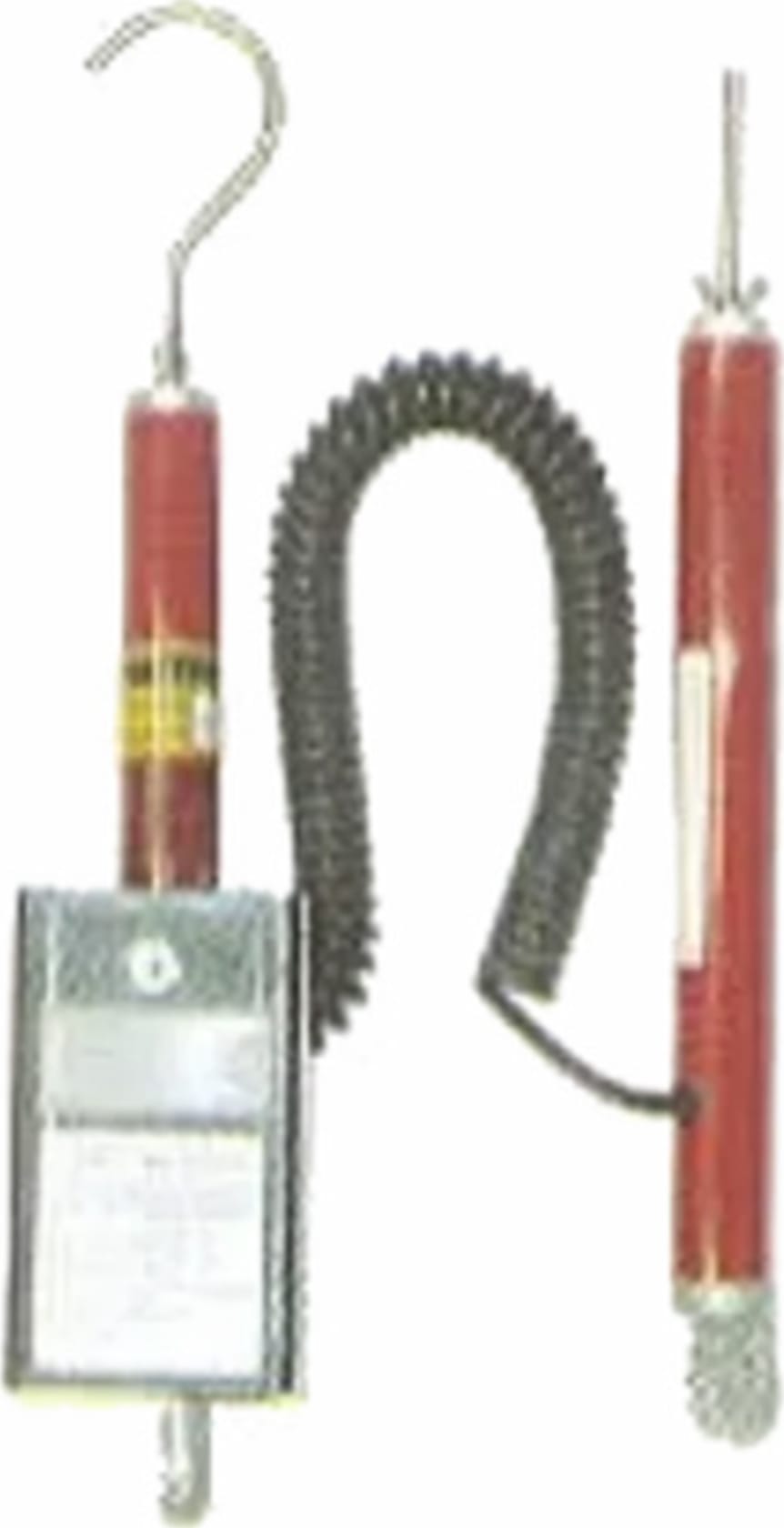

The meter and coiled cable is attached to two 1-1/4" diameter x 12" long fiberglass sticks. Female universal splines are provided on one end to allow attachement on all universal hot sticks. One conductor hook 2" diameter and one 2-1/2" straight probe is provided on other ends.

With use of add-on extension resistors unit can measure voltage up to 80 kV.
