Cal Test GE3421 High Voltage Oscilloscope Probe

Name: Cal Test GE3421 High Voltage Oscilloscope Probe
Brand: Cal Test
SKU: Cal TestGE3421
Price: 67.96 USD
Availability: InStock

0 reviews | UPC: 817050784008 | Model: Cal Test GE3421

Compare

Oprobe x100, 100MHz, 4kV - 3400 Series, 1.2m, ELD

100 MHz (-3 dB) bandwidth
High impedance input (100 MΩ/≈5 pF)
4,000 V CAT I
Voltage Coefficient (VCR) ≤30 ppm/V
Slim, stylish body
Snap-Locking Sprung Hook
Easily replaceable tip
Large accessory set
Meets IEC 61010-031
RoHS compliant

View Product Details

List Price: $78.15

Your Price: $67.96

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	Cal Test GE3421 Oprobe x100, 100MHz, 4kV - 3400 Series, 1.2m, ELD	Cal Test GE3125 Oprobe x100, 150MHz, 2kV, 1% - 3100 Series, 1.2m, ELD	Cal Test GE3225 Oprobe x100, 200MHz, 2kV, 1% - 3200 Series, 1.2m, ELD	Cal Test GE3425 Oprobe x100, 100MHz, 4kV, 1% - 3400 Series, 1.2m, ELD	Cal Test GE3121 Oprobe x100, 150MHz, 2kV - 3100 Series, 1.2m, ELD	Cal Test GE3122 Oprobe x100, 100MHz, 2kV - 3100 Series, 2.0m, ELD	Cal Test GE3231 Oprobe x100, 200MHz, 2kV - 3200 Series, 1.2m, ELD	Cal Test GE3422 Oprobe x100, 100MHz, 4kV - 3400 Series, 2.0m, ELD	Cal Test GE3121SA Oprobe x100, 150MHz, 2kV w/InBNC - 3100 Series, 1.2m, ELD	Cal Test GE3121RA Oprobe x100, 150MHz, 2kV w/RA - 3100 Series, 1.2m, ELD	Cal Test GE3421RA Oprobe x100, 100MHz, 4kV w/RA - 3400 Series, 1.2m, ELD
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

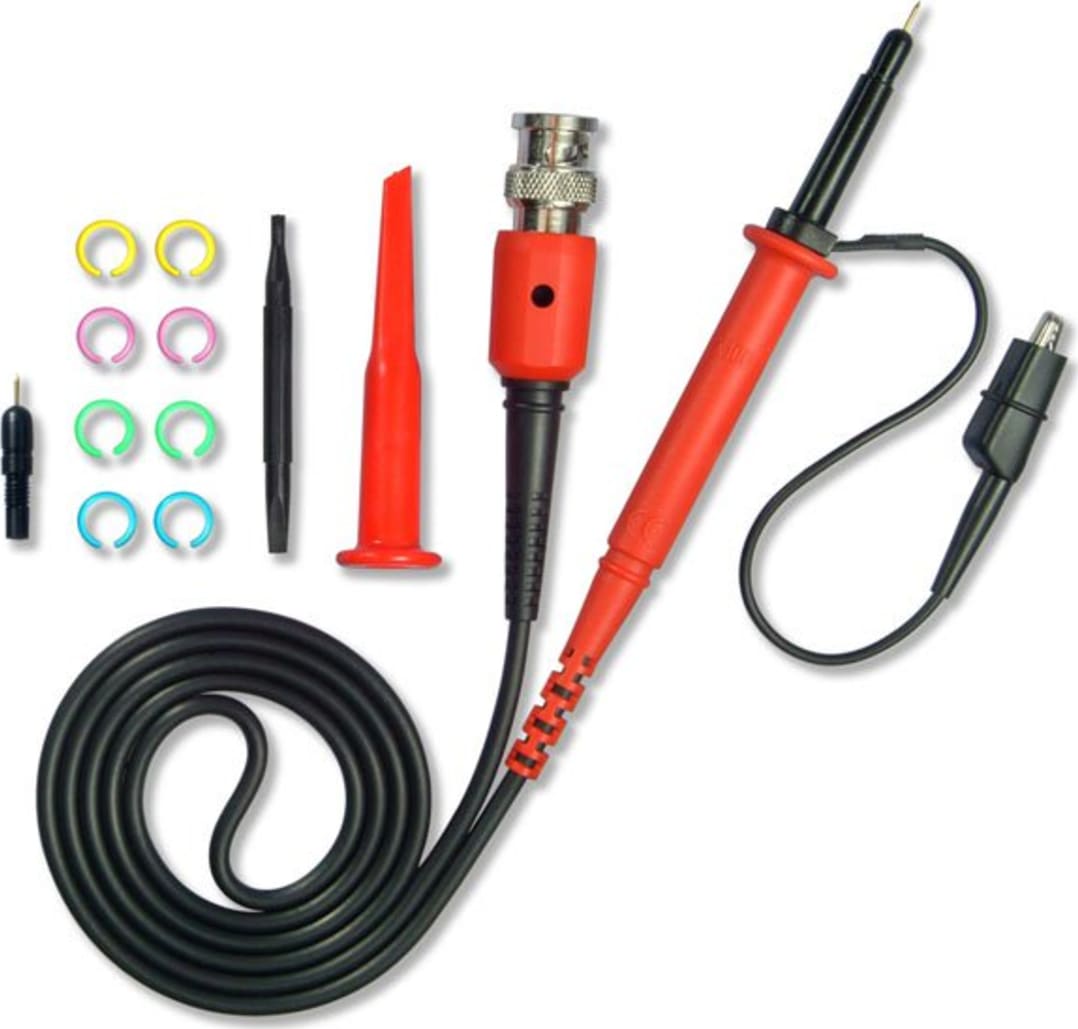

100 MHZ HIGH VOLTAGE OSCILLOSCOPE PROBE

Model GE3421 is a medium bandwidth, high voltage 100x passive voltage probe with a 100 MΩ input impedance. The GE Series is a high quality, easy to use family of 5 mm Passive Voltage Oscilloscope probes in stylish, slim-line bodies. The series features superior input impedances for enhanced measurement performance when compared to other oscilloscope probes. The series is marketed under the time-honored Elditest brand name in both North America and the European Union.

Type	5 mm Passive Voltage
Bandwidth	100 MHz
Attenuation	100x
Input Impedance	100 MΩ
Input Capacitance	≈5 pF
Output Impedance	1 MΩ
Risetime	3.5 ns
IEC Rating	4,000 V CAT I
Compensation	10−30 pF
Cable Length	1.2 m
Voltage Coefficient (VCR)	≤30 ppm/V (6%)
Operating Temperature	0° to +50° C
Humidity	85% RH or less (at 35° C)
RoHS (2011/65/EU)	Compliant

Accessories/Probes/Oscilloscope Probes/Oscilloscope High Voltage Probes Template
Bandwidth Range Max	100 MHz (0.1 GHz)
Impedance	100 Ohms Impedance Input Impedance: 100 MΩ
Test Equipment General Attributes
Product Height	1.15 IN
Product Length	8.50 IN
Product Width	5.20 IN
HTS/Schedule B Number	9030.90.8010
ECCN Number	EAR99
Country of Origin	Taiwan
Shipping Height	1.15 IN
Shipping Length	8.50 IN
Shipping Width	5.20 IN
