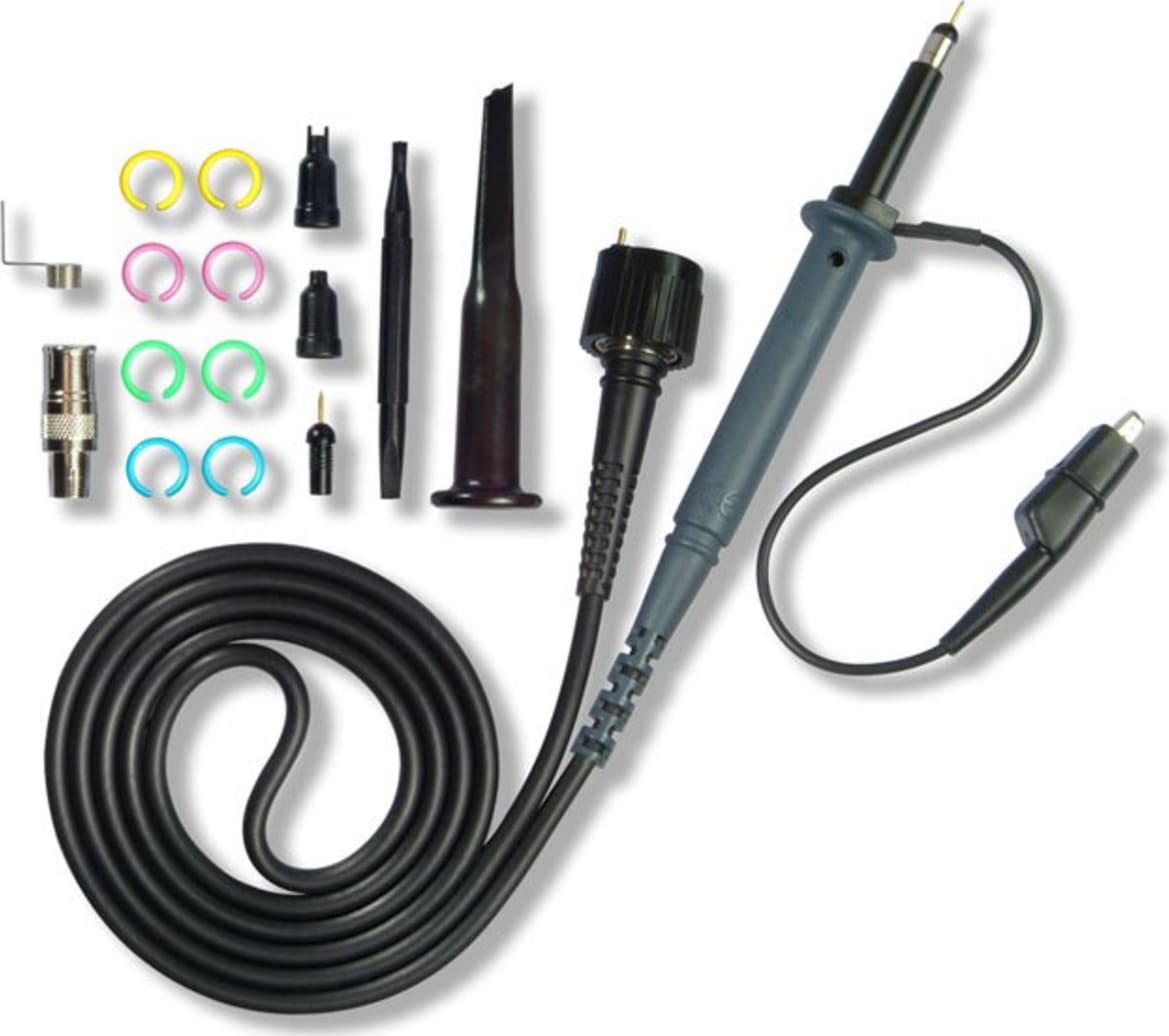

Cal Test GE2511RA Passive Oscilloscope Probe

Name: Cal Test GE2511RA Passive Oscilloscope Probe
Brand: Cal Test
SKU: Cal TestGE2511RA
Price: 57.16 USD
Availability: InStock

0 reviews | Model: Cal Test GE2511RA

Compare

250MHz, 10x, 1.2m w/RA, GE Series

250 MHz (-3 dB) bandwidth
High impedance input (10 MΩ/≈12 pF)
10–30 pF compensation range
Readout actuator pin
300 V CAT II
Slim, stylish body
Snap-Locking Sprung Hook
Easily replaceable tip
Large accessory set
Meets IEC 61010-031
RoHS compliant

View Product Details

List Price: $58.00

Your Price: $57.16

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	Cal Test GE2511RA 250MHz, 10x, 1.2m w/RA, GE Series	Cal Test GE2501 55MHz, 1x, 1.2m, Series, GE Series	Cal Test GE2512 Oprobe x10, 190MHz - 2500 Series, 2.0m, ELD	Cal Test GE2521 Oprobe x1/x10, 25/250MHz - 2500 Series, 1.2m, ELD	Cal Test GE2522 Oprobe x1/x10, 17/190MHz - 2500 Series, 2.0m, ELD	Cal Test GE2502 Oprobe x1, 35MHz - 2500 Series, 2.0m, ELD	Cal Test GE2512RA Oprobe x10, 190MHz w/RA - 2500 Series, 2.0m, ELD
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

250 MHZ PASSIVE OSCILLOSCOPE PROBE

Model GE2511RA is a high bandwidth, high impedance 10x passive voltage probe with 10 MΩ input impedance. Probe features a readout actuator pin (sense pin) on the BNC connector. The GE Series is a high quality, easy to use family of 5 mm Passive Voltage Oscilloscope probes in stylish, slim-line bodies. The series features superior input impedances for enhanced measurement performance when compared to other oscilloscope probes. The series is marketed under the time-honored Elditest brand name in both North America and the European Union.

Type	5 mm Passive Voltage
Bandwidth	250 MHz
Attenuation	10x
Input Impedance	10 MΩ
Input Capacitance	≈12 pF
Output Impedance	1 MΩ
Risetime	1.4 ns
IEC Rating	300 V CAT II
Compensation	10−30 pF
Cable Length	1.2 m
Operating Temperature	0° to +50° C
Humidity	85% RH or less (at 35° C)
RoHS (2011/65/EU)	Compliant
