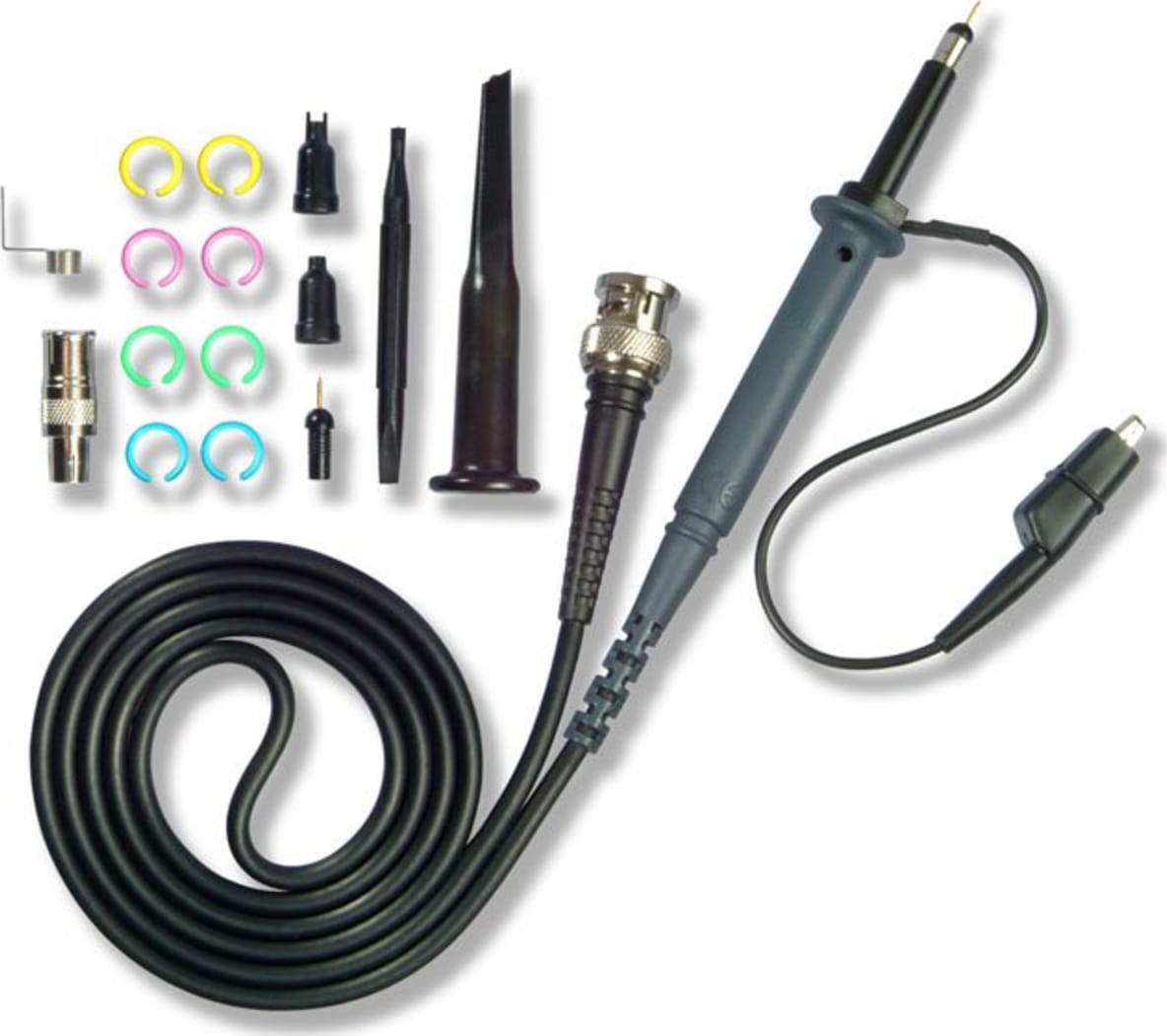

Cal Test GE2511 Passive Oscilloscope Probe

Name: Cal Test GE2511 Passive Oscilloscope Probe
Brand: Cal Test
SKU: Cal TestGE2511
Price: 45.00 USD
Availability: InStock

0 reviews | Model: Cal Test GE2511

Compare

Oprobe x10, 250MHz - 2500 Series, 1.2m, ELD

250 MHz (-3 dB) bandwidth
High impedance input (10 MΩ/≈12 pF)
10–30 pF compensation range
300 V CAT II
Slim, stylish body
Snap-Locking Sprung Hook
Easily replaceable tip
Large accessory set
Meets IEC 61010-031
RoHS compliant

View Product Details

List Price: $45.00

In Stock:

View Payment Options

Recommended for you

250 MHZ PASSIVE OSCILLOSCOPE PROBE

Model GE2511RA is a high bandwidth, high impedance 10x passive voltage probe with 10 MΩ input impedance. The GE Series is a high quality, easy to use family of 5 mm Passive Voltage Oscilloscope probes in stylish, slim-line bodies. The series features superior input impedances for enhanced measurement performance when compared to other oscilloscope probes. The series is marketed under the time-honored Elditest brand name in both North America and the European Union.

Type	5 mm Passive Voltage
Bandwidth	250 MHz
Attenuation	10x
Input Impedance	10 MΩ
Input Capacitance	≈12 pF
Output Impedance	1 MΩ
Risetime	1.4 ns
IEC Rating	300 V CAT II
Compensation	10−30 pF
Cable Length	1.2 m
Readout Actuator	No
Operating Temperature	0° to +50° C
Humidity	85% RH or less (at 35° C)
RoHS (2011/65/EU)	Compliant
