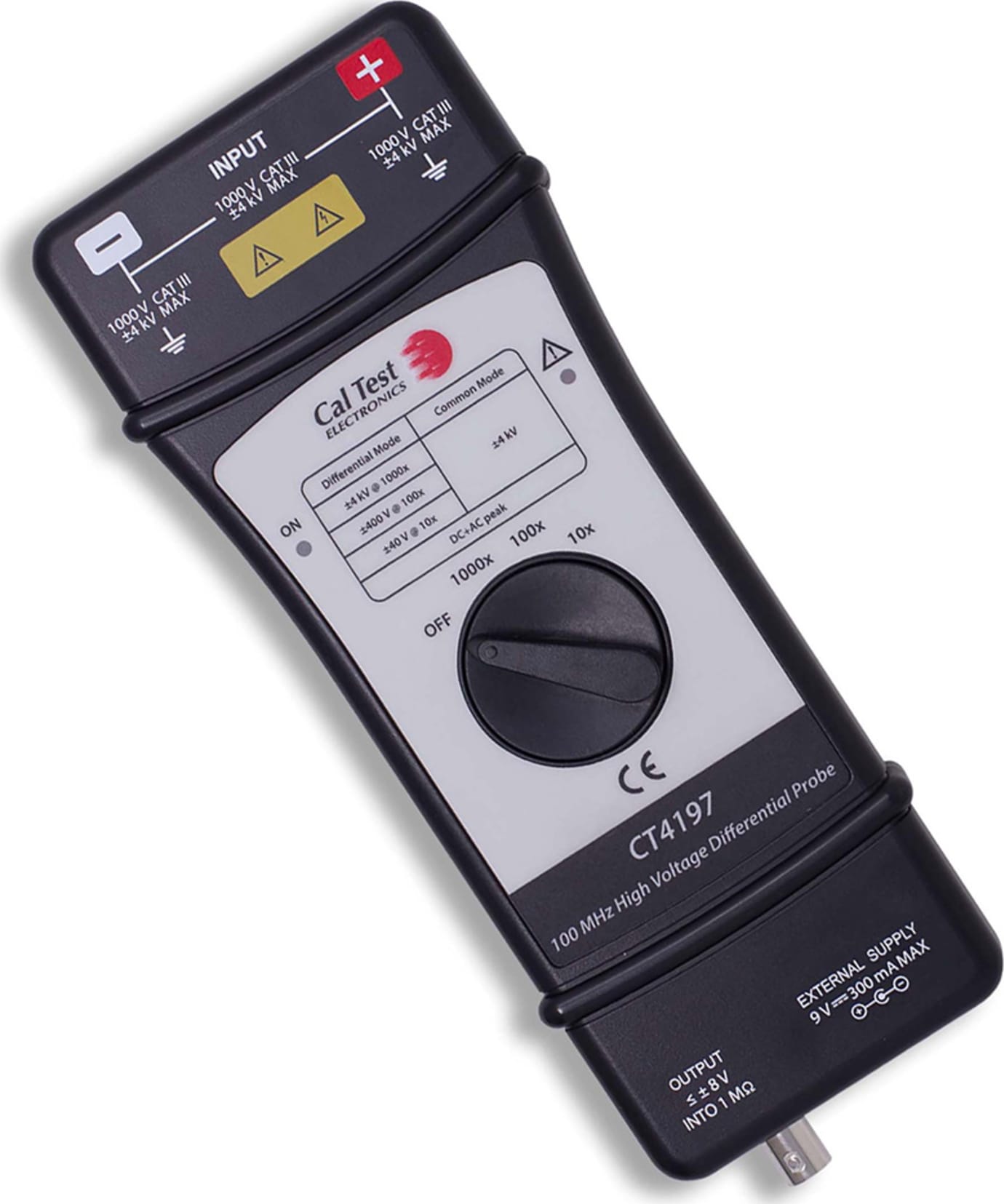

Cal Test CT4197 Active Differential Probe 100 MHz

Name: Cal Test CT4197 Active Differential Probe 100 MHz
Brand: Cal Test
SKU: Cal TestCT4197
Price: 896.81 USD
Availability: InStock

0 reviews | UPC: 849947001837 | Model: Cal Test CT4197

Compare

Differential Probe Kit, 100 MHz, 4 kV, 10x/100x/1000x

Attenuation 10x/100x/1000x
100 MHz bandwidth (-3 dB)
High accuracy (±2%)
Power indicator LED
Over range indicator LED
Meets IEC 61010-1 CAT II safety standard
Up to ±4 kV (DC + AC peak)

View Product Details

List Price: $910.00

Your Price: $896.81

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	Cal Test CT4197 Differential Probe Kit, 100 MHz, 4 kV, 10x/100x/1000x	Cal Test CT4196 Differential Probe Kit, 60 MHz, 35 V, 1x/5x/10x	Cal Test CT4198 Differential Probe Kit, 100 MHz, 8 kV, 10x/100x/1000x	Cal Test CT4198-NISTCAL CT4198 Probe Kit with NIST Calibration
Price
In Stock
Bandwidth	100 MHz	60 MHz	100 MHz	100 MHz
Current Type (Scope probes)	AC / DC	AC / DC	AC / DC	AC / DC
Compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Cal Test CT4197 Accessories

Choose a Category

Batteries and Chargers

for the Cal Test CT4197

Cal Test CT3957-EU Power Adapter, Europe - 9 V DC, 300mA, 5.5mm -P

Catalog: CT3957-EU

(0)

In Stock!

Add to Cart

Cal Test CT3957-NA Power Adapter, North America - 9 V DC, 300mA, 5.5mm -P

Catalog: CT3957-NA

(0)

In Stock!

Add to Cart

Cal Test CT4197 100 MHz Differential Probe

Power indicator LED
Attenuation 10x/100x/1000x
Over range indicator LED
Up to ±4 kV (DC + AC peak)
Meets IEC 61010-1 CAT II safety standard

The CT4197 and CT4198 differential probes allow safe, accurate measurement between two voltage points where neither point is referenced to ground. Both probes offer a 100 MHz bandwidth. Both are compatible with oscilloscopes from all major manufacturers. The probes are exclusively powered by the included 9 V power adapter.

General Specifications
Electrical Characteristics
Probe	CT4197	CT4198
Bandwidth	100
Rise Time	3.5 ns
Attenuation	10x, 100x, 1000x	20x, 200x, 2000x
AC CMRR	80 dB @ 60 Hz 60 dB @ 100 Hz 50 dB @ 1 MHz
Maximum Differential Input Voltages (DC + AC peak)	±40 V @ 10x	±80 V @ 20x
	±400 V @ 100x	±800 V @ 200x
	±4000 V @ 1000x	±8000 V @ 2000x
Absolute Maximum Rated Input Voltage (each side to ground)	4000 Vrms	8000 Vrms
Input Impedance (Differential)	20 MΩ // 2 pF	30 MΩ // 1.5 pF
Input Impedance (each side to ground)	10 MΩ // 4 pF	15 MΩ // 3 pF
Output Voltage Swing	±8 Vpp (driving 1 MΩ oscilloscope input)
Offset (typical)	±5 mV
Noise (typical)	2 mVrms
Source Impedance	50 Ω
Power Supply	9 V power adapter (included)
Mechanical Characteristics
Weight	390 g
Dimensions	218 x 83 x 30 mm
BNC Cable Length	100 cm
Input Leads Length	55 cm each
Environmental Characteristics
Operating Temp/Humidity	0°C to 50°C / 10% to 85% RH
Storage Temp/Humidity	-30°C to 70°C / 10% to 90% RH
Pollution Degree	Pollution Degree 2
Safety	IEC 61010-1 CAT II
* Accuracy based on DMM with 10 MΩ input impedance.

Tech Specs

Accessories/Probes/Oscilloscope Probes/Active Differential Oscilloscope Probes Template
Bandwidth	100 MHz
Maximum Differential Input Voltage	40 V
Current Type (Scope probes)	AC / DC
Attenuation (Probes)	1000x, 100x, 10x/100x
Rise Time	3.5 ns
CAT Voltage Rating	II
Test Equipment General Attributes
Product Weight	390 GRAMS (0.860 LBS)
HTS/Schedule B Number	9030.90.8010
ECCN Number	EAR99
Battery Type	9v
Power Supply Voltage	Battery Powered
Country of Origin	Taiwan
