Cal Test CT4196 Active Differential Probe 60 MHz

Name: Cal Test CT4196 Active Differential Probe 60 MHz
Brand: Cal Test
SKU: Cal TestCT4196
Price: 556.81 USD
Availability: InStock

0 reviews | UPC: 849947001820 | Model: Cal Test CT4196

Cal Test CT4196 60MHz Differential Probe

Compare

Differential Probe Kit, 60 MHz, 35 V, 1x/5x/10x

60 MHz bandwidth (-3 dB)
Up to ±35 V (DC + AC peak)
Attenuation 1x/5x/10x
High accuracy (±2%)
Power indicator LED
Meets IEC 61010-1 CAT II safety standard

View Product Details

List Price: $565.00

Your Price: $556.81

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	Cal Test CT4196 Differential Probe Kit, 60 MHz, 35 V, 1x/5x/10x	Cal Test CT4197 Differential Probe Kit, 100 MHz, 4 kV, 10x/100x/1000x	Cal Test CT4198 Differential Probe Kit, 100 MHz, 8 kV, 10x/100x/1000x	Cal Test CT4198-NISTCAL CT4198 Probe Kit with NIST Calibration
Price
In Stock
Bandwidth	60 MHz	100 MHz	100 MHz	100 MHz
Current Type (Scope probes)	AC / DC	AC / DC	AC / DC	AC / DC
Attenuation (Probes)	10x, 1x, 5x	1000x, 100x, 10x/100x	2000x, 200x, 20x	2000x, 200x, 20x
Compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Cal Test CT4196 Accessories

Choose a Category

Batteries and Chargers

for the Cal Test CT4196

Cal Test CT3957-EU Power Adapter, Europe - 9 V DC, 300mA, 5.5mm -P

Catalog: CT3957-EU

(0)

In Stock!

Add to Cart

Cal Test CT3957-NA Power Adapter, North America - 9 V DC, 300mA, 5.5mm -P

Catalog: CT3957-NA

(0)

In Stock!

Add to Cart

Cal Test CT4196 60 MHz Differential Probe

High accuracy (±2%)
Attenuation 1x/5x/10x
Power indicator LED
Up to ±35 V (DC + AC peak)
Meets IEC 61010-1 CAT II safety standard

The CT4196 differential probe allows safe, accurate measurement between two voltage points where neither point is referenced to ground. Designed for high sensitivity measurements, the probe offers up to 60 MHz bandwidth. Compatible with oscilloscopes from all major manufacturers, the probe is exclusively powered by the included 9 V power adapter.

General Specifications
Electrical Characteristics
Bandwidth	60 MHz (10x attenuation) 50 MHz (5x attenuation) 15 MHz (1x attenuation)
Rise Time	5.8 ns for 10x 7 ns for 5x 23 ns for 1x
Attenuation	1x, 5x, 10x
Accuracy	±2% *
AC CMRR	80 dB @ 60 Hz 60 dB @ 100 Hz 50 dB @ 1 MHz

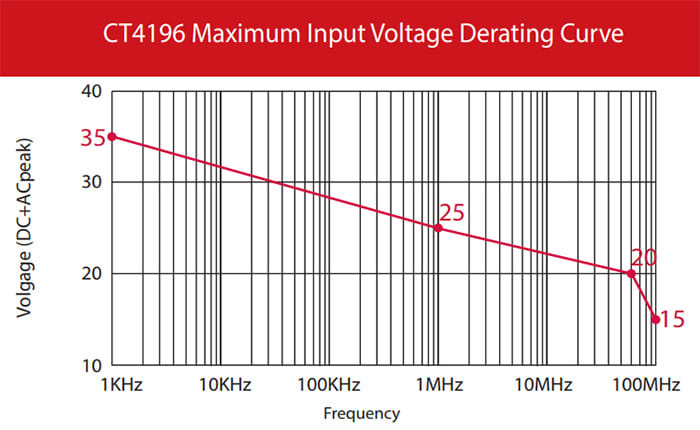

Maximum Input Voltage (1x) (DC + AC peak)	±3.5 V
Maximum Input Voltage (5x) (DC + AC peak)	±18 V
Maximum Input Voltage (10x) (DC + AC peak)	±35 V
Absolute Maximum Rated Input Voltage (each side to ground)	600 Vrms
Input Impedance (Differential)	1 MΩ // 2.5 pF
Input Impedance (each side to ground)	0.5 MΩ // 5 pF
Output Voltage Swing	±4 V (driving 1 MΩ oscilloscope input)
Offset (typical)	±5 mV
Noise (typical)	2 mVrms
Source Impedance	50 Ω
Power Supply	9 V power adapter (included)
Mechanical Characteristics
Weight	250 g
Dimensions	195 x 55 x 30 mm
BNC Cable Length	100 cm
Input Leads Length	55 cm each
Environmental characteristics
Operating Temp/Humidity	0°C to 50°C / 10% to 85% RH
Storage Temp/Humidity	-30°C to 70°C / 10% to 90% RH
Pollution Degree	Pollution Degree 2
Safety	IEC 61010-1 CAT II
* Accuracy based on DMM with 10 MΩ input impedance

Tech Specs

Accessories/Probes/Oscilloscope Probes/Active Differential Oscilloscope Probes Template
Bandwidth	60 MHz
Current Type (Scope probes)	AC / DC
Attenuation (Probes)	10x, 1x, 5x
Rise Time	5.8 ns
CAT Voltage Rating	II
Test Equipment General Attributes
Product Weight	250 GRAMS (0.551 LBS)
HTS/Schedule B Number	9030.90.8010
ECCN Number	EAR99
Battery Type	9v
Power Supply Voltage	Battery Powered
Country of Origin	Taiwan
