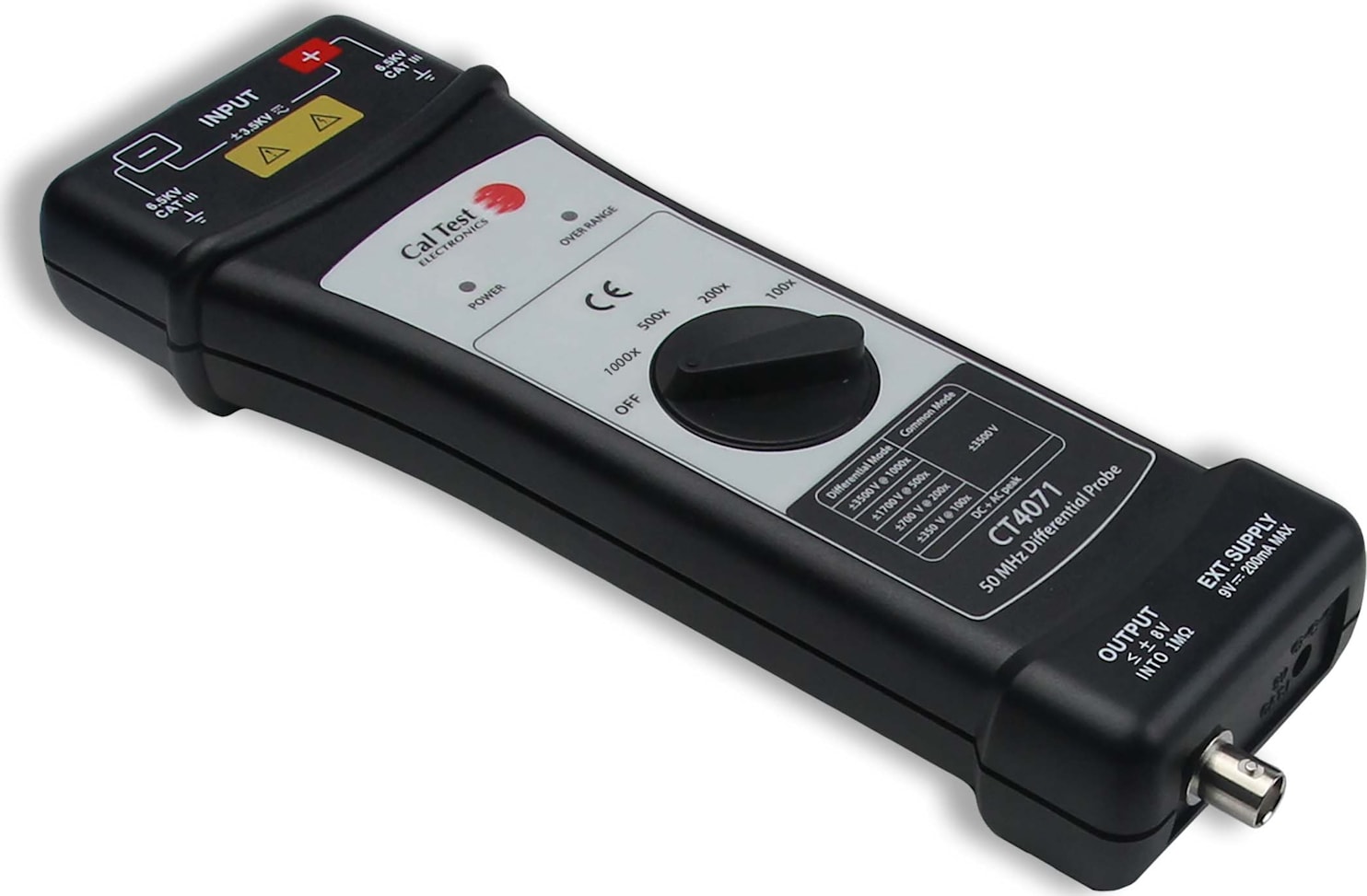

Cal Test CT4071 - Active Differential Probe

Name: Cal Test CT4071 - Active Differential Probe
Brand: Cal Test
SKU: Cal TestCT4071
Price: 465.48 USD
Availability: InStock

0 reviews | UPC: 849947001585 | Model: Cal Test CT4071

Compare

Differenital Probe Kit, 50 MHz, 3.5kV, 100x/200x/500x/1000x

Meets IEC 61010-031 safety standard
Selectable attenuation settings of 10x/100x
50 MHz bandwidth (at 200x/500x/1000x attenuation settings)
25 MHz bandwidth (at 100x attenuation setting)
Up to ±3500 V differential
High accuracy (±2%)
Power and over range indicator LED's

View Product Details

List Price: $535.30

Your Price: $465.48

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	Cal Test CT4071 Differenital Probe Kit, 50 MHz, 3.5kV, 100x/200x/500x/1000x	Cal Test CT4072 Differential Probe Kit, 100 MHz, 3.5kV, 100x/200x/500x/1000x	Cal Test CT4076-EU Differential Probe Kit, 35MHz, 7.5kV, 100x/1000x, EU Adapter	Cal Test CT4079-EU Differential Probe Kit, 50 MHz, 30kV, 200x/2000x, EU Adapter	Cal Test CT4079-NA Differential Probe Kit, 50MHz, 15 kV, 200x/2000x, NA Adapter	Cal Test CT4076-NA Differential Probe Kit, 35MHz, 7.5kV, 100x/1000x, NA Adapter
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Cal Test CT4071 - Active Differential Probe

Selectable attenuation settings of 10x/100x
50 MHz bandwidth (at 200x/500x/1000x attenuation settings)
25 MHz bandwidth (at 100x attenuation setting)
Up to ±3500 V differential
High accuracy (±2%)

The CT4071 differential probe allows safe, accurate measurement between two voltage points where neither point is referenced to ground. The probe offers both a 50 MHz bandwidth for the 200x, 500x, and 1000x attenuation settings and a 25 MHz bandwidth for the 100x attenuation setting. Compatible with oscilloscopes from all major manufacturers, the probe is exclusively powered by the included 9 V power adapter.

Performance Data Plots

Electrical Characteristics
Bandwidth (-3dB)	50 MHz for 200x/500x/1000x 25 MHz for 100x
Rise Time (probe only)	7 ns for 200x/500x/1000x 18 ns for 100x
Attenuation ratio	100x/200x/500x/1000x
Accuracy	±2%
Input Voltage
Differential Input Voltage (DC + AC peak) @ 100x	±350 V
Differential Input Voltage (DC + AC peak) @ 200x	±700 V
Differential Input Voltage (DC + AC peak) @ 500x	±1750 V
Differential Input Voltage (DC + AC peak) @ 1000x	±3500 V
Absolute Maximum Rated Input Voltage (each side to ground)	2500 Vrms
Input Impedance	54 MΩ // 1.2 pF
Input Impedance (each side to ground)	27 MΩ // 2.3 pF
Output Voltage
Swing	±8 V (driving 1 MΩ oscilloscope input)
Offset (typical)	±5 mV
Noise (typical)	2 mVrms
Source Impedance (Typ.)	50 Ω
Safety Specifications	IEC 61010-031 CAT II
Mechanical Characteristics
Weight	280 g
Dimensions	240 x 80 x 30 mm
BNC Cable Length	100 cm
Input Leads Length	55 cm
Environmental Characteristics
Operating Temp/Humidity	0°C to 50°C / Up to 85% RH
Storage Temp/Humidity	-30°C to 70°C / Up to 90% RH
Pollution Degree	Pollution Degree 2
