Differential Probe Kit, 25MHz, 700V, 20x/50x/200x

Meets IEC 61010-031 safety standard
Selectable attenuation settings of 10x/100x
25 MHz bandwidth (at 50x/200x attenuation settings)
15 MHz bandwidth (at 20x attenuation setting)
Up to ±700 V differential
High accuracy (±2%)
Power and over range indicator LED's

View Product Details

List Price: $400.00

Your Price: $394.20

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	Cal Test CT4066 Differential Probe Kit, 25MHz, 700V, 20x/50x/200x	Cal Test CT4068-EU Differential Probe Kit, 35 MHz, 1.6 kV, 10x/100x, EU Adapter	Cal Test CT4068-NA Differential Probe Kit, 35 MHz, 1.6 kV, 10x/100x, NA Adapter
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare

Recommended for you

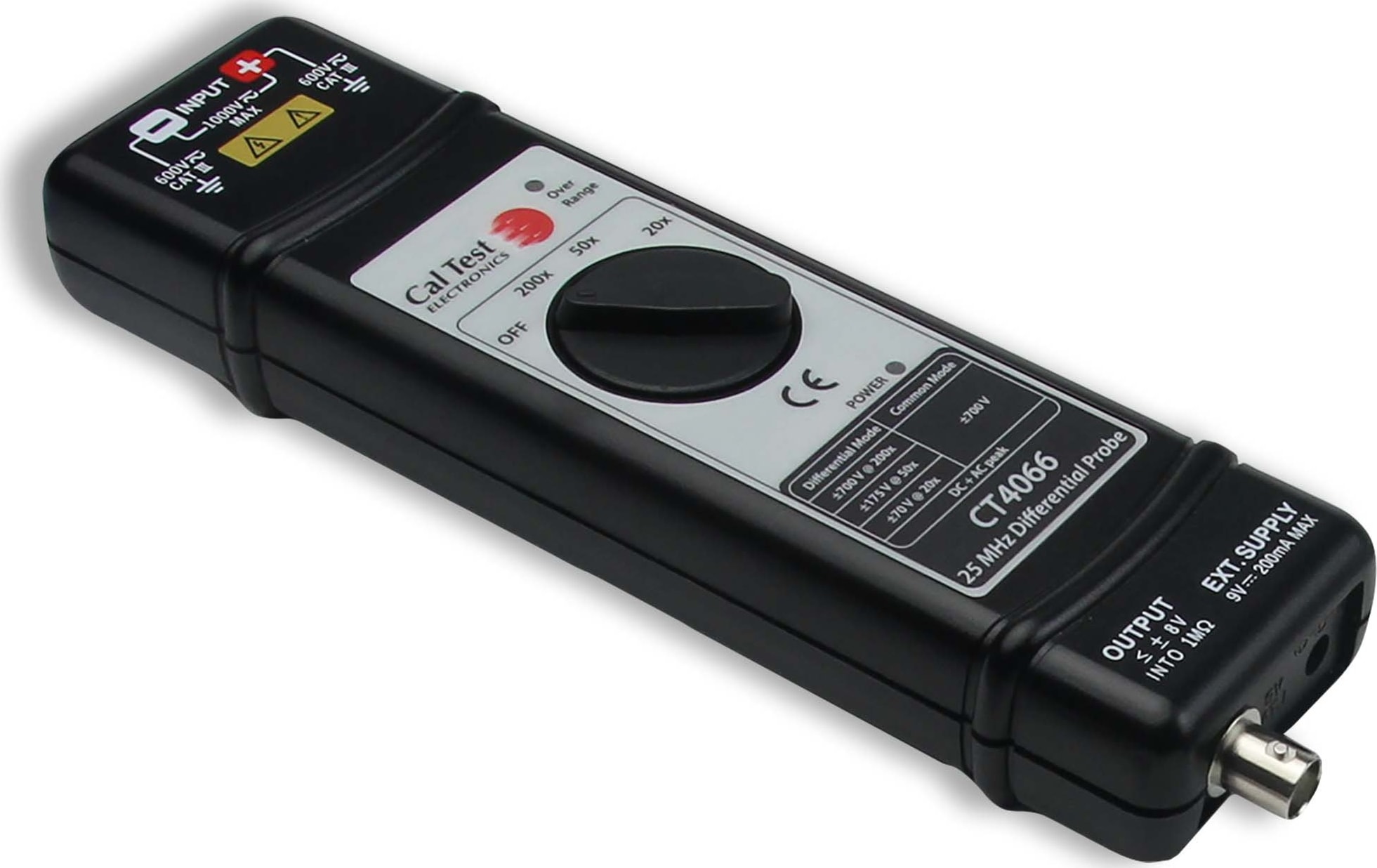

Cal Test - CT4066 Active Differential Probe

Selectable attenuation settings of 10x/100x
25 MHz bandwidth (at 50x/200x attenuation settings)
15 MHz bandwidth (at 20x attenuation setting)
Up to ±700 V differential
High accuracy (±2%)

The CT4066 differential probe allows safe, accurate measurement between two voltage points where neither point is referenced to ground. The probe offers both a 25 MHz bandwidth for the 50x and 200x attenuation settings and a 15 MHz bandwidth for the 20x attenuation setting. Compatible with oscilloscopes from all major manufacturers, the probe is exclusively powered by the included 9 V power adapter.

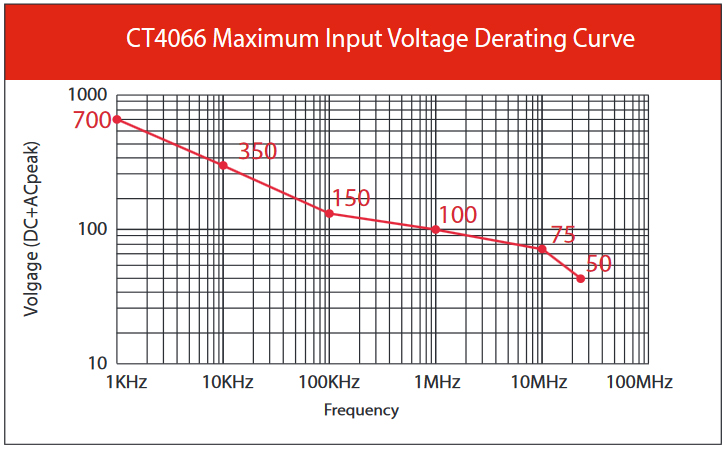

Performance Data Plots

Electrical Characteristics
Bandwidth (-3dB)	25 MHz for 50x/100x 15 MHz for 20x
Rise Time (probe only)	14 ns for 50x/100x 23.4 ns for 20x
Attenuation ratio	20x/50x/200x
Accuracy	±2%
Input Voltage
Differential Input Voltage (DC + AC peak) @ 20x	±70 V
Differential Input Voltage (DC + AC peak) @ 50x	±175 V
Differential Input Voltage (DC + AC peak) @ 200x	±700 V
Absolute Maximum Rated Input Voltage (each side to ground)	600 Vrms
Input Impedance	4 MΩ // 1.2 pF
Input Impedance (each side to ground)	2 MΩ // 2.3 pF
Output Voltage
Swing	±8 V (driving 1 MΩ oscilloscope input)
Offset (typical)	±5 mV
Noise (typical)	2 mVrms
Source Impedance (Typ.)	50 Ω
Safety Specifications	IEC 61010-1 CAT II
Mechanical Characteristics
Weight	250 g
Dimensions	195 x 55 x 30 mm
BNC Cable Length	100 cm
Input Leads Length	55 cm
Environmental Characteristics
Operating Temp/Humidity	0°C to 50°C / Up to 85% RH
Storage Temp/Humidity	-30°C to 70°C / Up to 90% RH
Pollution Degree	Pollution Degree 2
