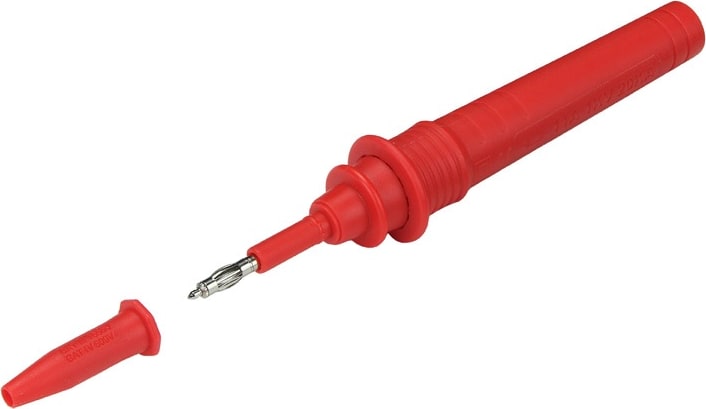

Cal Test CT3997-2 Probe Body

Name: Cal Test CT3997-2 Probe Body
Brand: Cal Test
SKU: Cal TestCT3997-2
Price: 28.50 USD
Availability: InStock

0 reviews | Model: Cal Test CT3997-2

Compare

Fused Probe Body, 1000 V, 11 A - Red

IEC 61010-031 rated
Replaceable 1,000 VAC / VDC, 11 A, 20 kA IR fast-acting fuse
1,000 V CAT III / 600 V CAT IV IEC voltage rating w/protective cap
4 mm banana plug tip, removable for a 2 mm pin tip
Special circuit to prevent hazardous “zero” reading in blown fuse situation
RoHS (2011/65/EU) compliant

View Product Details

List Price: $28.50

In Stock:

View Payment Options

Recommended for you

Cal Test CT3997-2 Probe Body, Red

The CT399x series fused probes enhance user safety when working in high energy CAT III and CAT IV environments. The replaceable fuse provides fast interrupt in fault conditions. The probes feature a 1 MΩ resistor in parallel with the fuse. Although it is recommended to check for a blown fuse before and after the measurement, if the probe is used with a blown fuse, the parallel resistor will provide a 90% accurate measurement thereby avoiding a “zero” instrument reading when there is a hazardous voltage present.

Description	Probe Body
Type	Individual
Probe Tip Diameter	4 mm Banana Plug Spring Tip; Removable for 2 mm (.080”)
Connector	4 mm Banana Jack
IEC Rating	1,000 V CAT III / 600 V CAT IV w/ Protective Cap
Current Max	11 A
Interrupting Rating	20 kA
Replacement Fuse	CT3998-11A (Fast Acting)
Color	Red

Tech Specs

Accessories/Probes/Multimeter Probes Template
Safety Voltage Rating	1000V, 600V
CAT Voltage Rating	III, IV
Test Equipment General Attributes
Unique Features	4 mm Banana Jack Red color
Warranty	1 YEARS
Warranty Details	Cal Test Electronics products carry a 1-year warranty against defect in materials and workmanship. Cal Test Electronics will, at its sole discretion, repair or replace any product returned and found to be defective within 1 year of original shipment. This warranty does not apply to products that exceed the warranty period, have been subject to misuse, neglect, accident, or that have been altered or repaired by anyone other than Cal Test Electronics. In no case will Cal Test Electronics' liability exceed the original purchase price. These provisions do not extend the original warrant period of any product repaired or replaced by Cal Test Electronics.
Country of Origin	United States
