100 MHz Differential Probe (±1,400 V Maximum Differential)
Differential probes allow for safe, accurate measurements between two voltage points where neither point is referenced to ground.

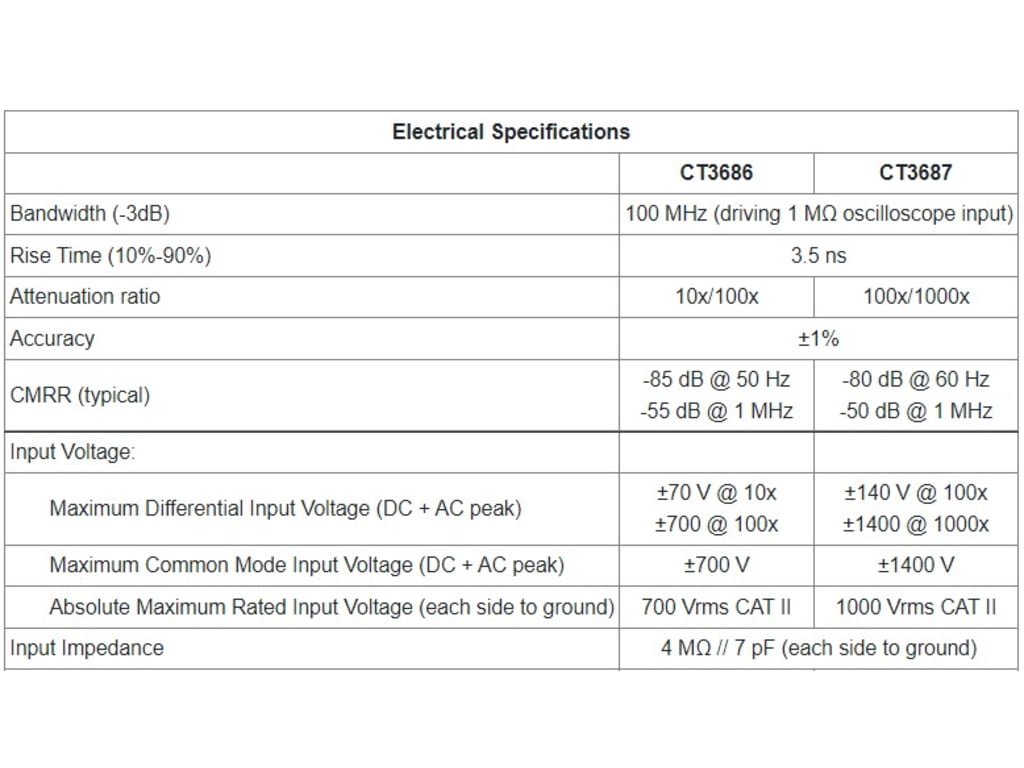

Model CT3687 features 100x/1000x attenuation settings, 100 MHz bandwidth and ±1,400 V maximum differential.

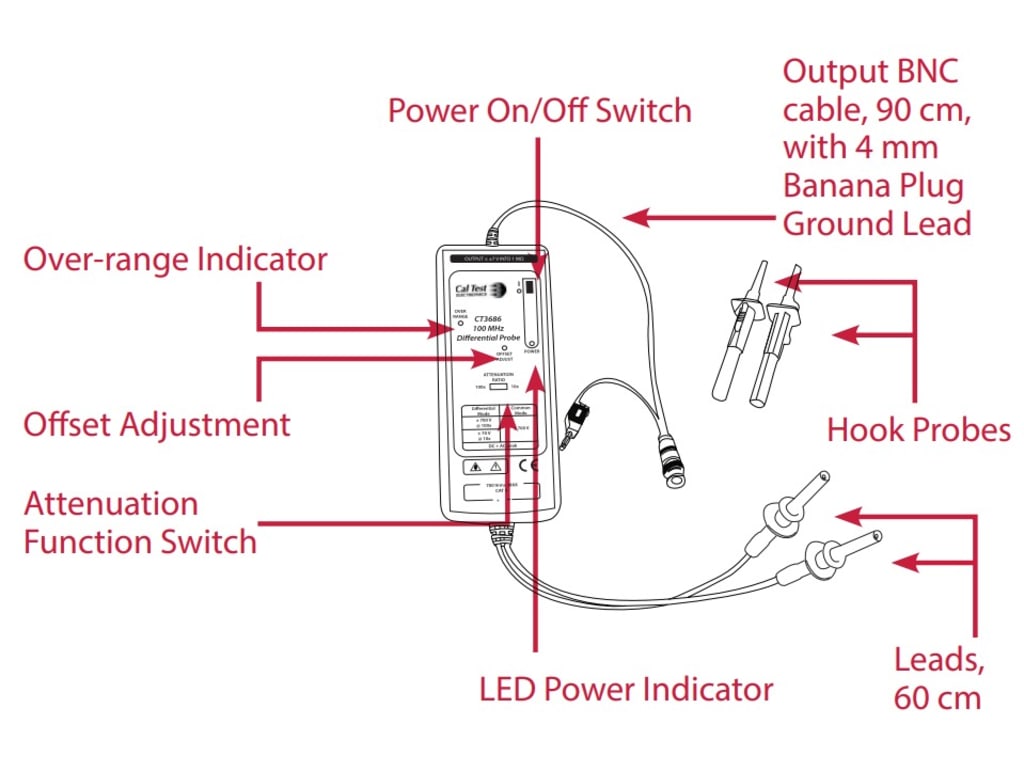

Compatible with oscilloscopes from all major manufacturers, the probe can be battery operated or powered by a universal power adapter (not included).
User applications include:
- Precise power semiconductor device measurements
- Switching power supply design
- Measurement of power converters
- Precise measurement of motor drives
