Cal Test CT3684 - 50 MHz Differential Probe Kit (Up to ±70 V Differential)

Name: Cal Test CT3684 - 50 MHz Differential Probe Kit (Up to ±70 V Differential)
Brand: Cal Test
SKU: Cal TestCT3684
Price: 532.78 USD
Availability: InStock

0 reviews | Model: Cal Test CT3684

Compare

Differential Probe Kit, 50MHz 10x Gen Purpose w/Clips and PS

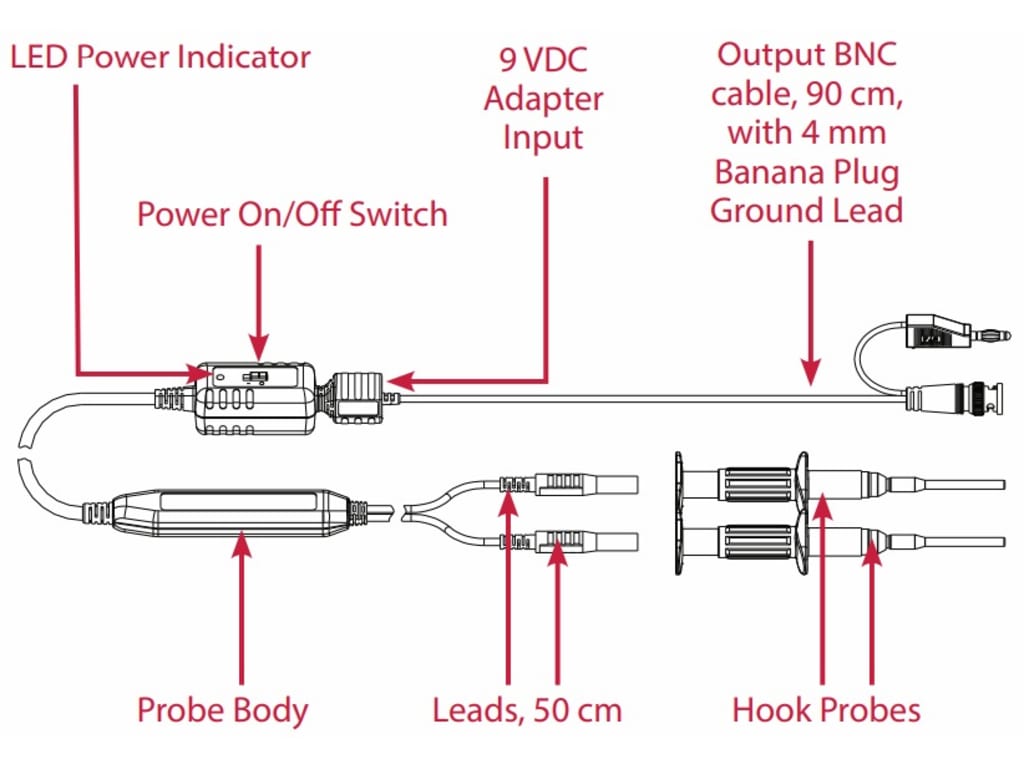

Includes foam-lined case which contains differential probe, (x2) hook probes (black and red), Power adapter, User manual
Meets IEC 61010-031 safety standard
Small size
Up to ±70 V differential
Attenuation: 10x
High accuracy ±1%
50 MHz bandwidth (-3 dB)
Good CMRR

View Product Details

List Price: $612.70

Your Price: $532.78

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	Cal Test CT3684 Differential Probe Kit, 50MHz 10x Gen Purpose w/Clips and PS	Cal Test CT3686 Differential Probe Kit, 100MHz 10x/100x GP w/Probes and PS	Cal Test CT3683 Differential Probe Kit, 70MHz 100x/1000x HV w/HV Clips	Cal Test CT3685 Differential Probe Kit, 50MHz 100x Gen Purpose w/Clips and PS
Price
In Stock
Bandwidth	50 MHz	100 MHz	70 MHz	50 MHz
Maximum Differential Input Voltage	70 V	700 V	7000 V	700 V
Attenuation (Probes)	10x	10x/100x	1000x, 100x	100x
Compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Cal Test CT3684

Includes foam-lined case which contains differential probe, (x2) hook probes (black and red), Power adapter, User manual
Meets IEC 61010-031 safety standard
Small size
Up to ±70 V differential
Attenuation: 10x

50 MHz Differential Probe Kit (Up to ±70 V Differential)

Precision differential probes allow for safe, accurate measurements between two voltage points where neither point is referenced to ground and high accuracy is required.

Model CT3684 features a fixed 10x attenuation setting, 50 MHz bandwidth and ±70 V maximum differential.

Compatible with oscilloscopes from all major manufacturers, the probe can be battery operated or powered the included universal power adapter.

User applications include:

Precise power semiconductor device measurements
Switching power supply design
Measurement of power converters
Precise measurement of motor drives

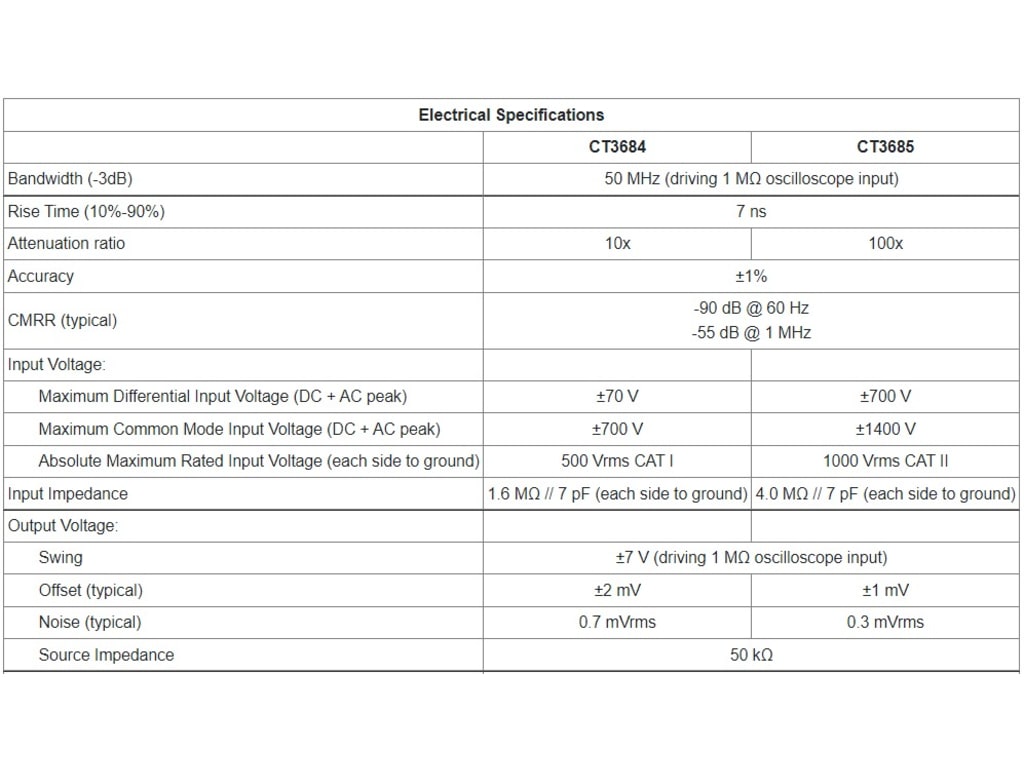

Type	Active Differential
Bandwidth	50 MHz
Attenuation(s)	10x
Accuracy	±1%
Rise Time	7 ns
Input Impedance	1.6 MΩ/7 pF
Input Voltage:
Differential Voltage (DC+Peak AC)	±70 V or 70 Vrms
Common-Mode Voltage (DC+Peak AC)	±700 V or 600 Vrms
Absolute Max. Voltage (DC+Peak AC)	±700 V or 600 Vrms CAT II
Output Voltage:
Swing	±7 V (into 50 kΩ load)
Offset (Typ.)	±2 mV
Noise (Typ.)	0.7 mVrms
Source Impedance (Typ.)	50 Ω
CMRR (Typ.)	-95 dB@60 Hz; -60 dB@1 MHz
Operating Temperature/Humidity	-10° to +40° C / 25% to 85% RH
Storage Temperature/Humidity	-30° to +70° C / 25% to 85% RH
Cable Length	125 cm
Input Leads Length	50 cm
Weight	300 g
Dimensions	111mm x 22mm x 14mm
RoHS (2002/95/EC)	Compliant

Accessories/Probes/Oscilloscope Probes/Active Differential Oscilloscope Probes Template
Bandwidth	50 MHz
Maximum Differential Input Voltage	70 V
Attenuation (Probes)	10x
Rise Time	7 ns
CAT Voltage Rating	I
Test Equipment General Attributes
Warranty	1 YEARS
Product Weight	300 GRAMS (0.661 LBS)
Product Height	111 MM (4.37 IN)
Product Length	22 MM (0.866 IN)
Product Width	14 MM (0.551 IN)
HTS/Schedule B Number	9030.90.8010
ECCN Number	EAR99
Battery Type	AA
Power Supply Voltage	Battery Powered
Country of Origin	Taiwan
