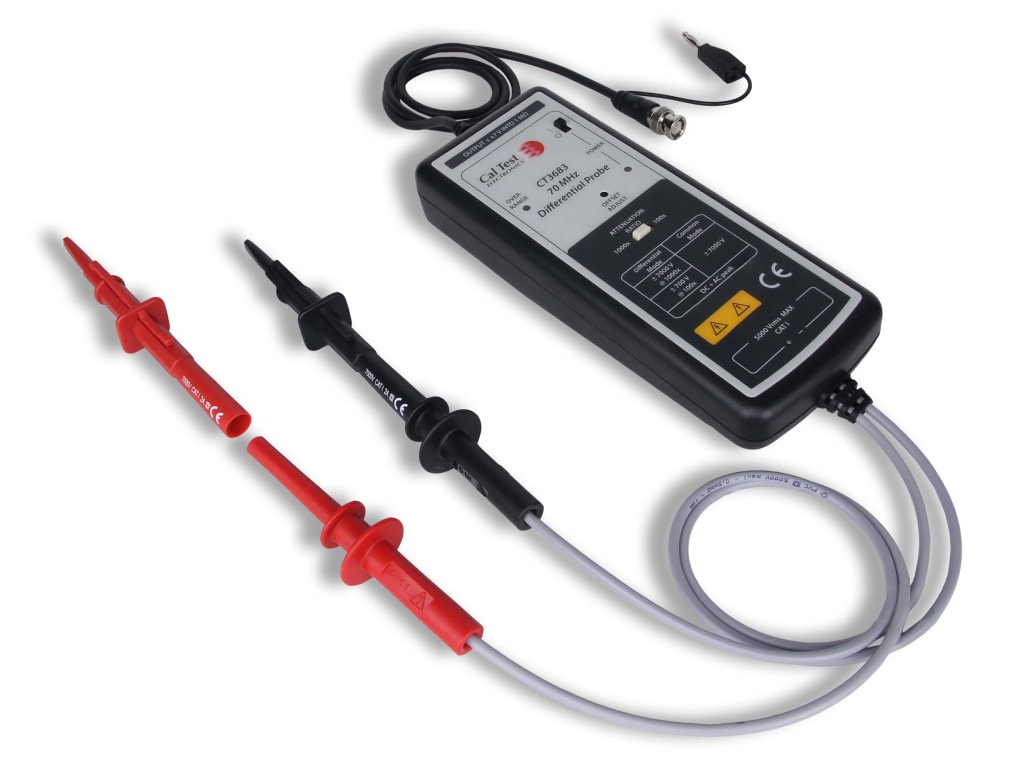

70 MHz High Voltage Differential Probe (with 2 HV Hook Probes)
High voltage differential probes allow for safe, accurate measurements between two voltage points where neither point is referenced to ground and voltages reach to ±7,000 V.

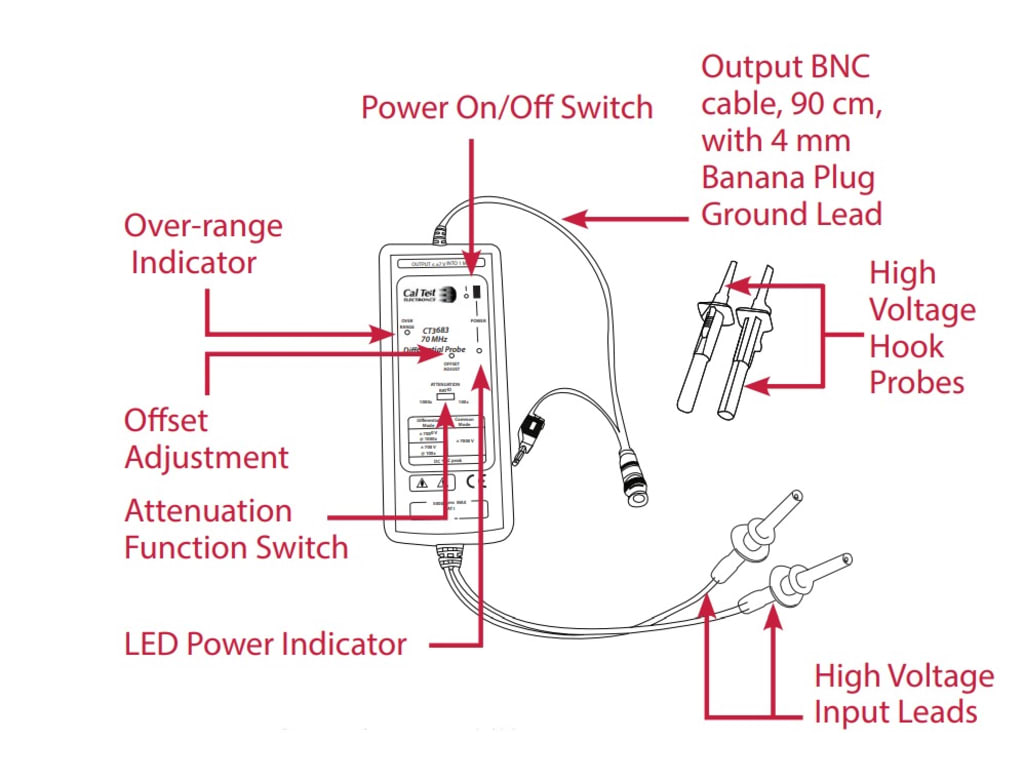

Model CT3683 features 100x/1000x attenuation settings, 70 MHz bandwidth, ±7,000 V maximum differential, and unique high voltage input leads and hook probes.
Compatible with oscilloscopes (with 1 MΩ input) from all major manufacturers, the probe can be battery operated or powered by a universal power adapter (not included).
User applications include:
- Precise power semiconductor device measurements
- Switching power supply design
- Measurement of power converters
- Precise measurement of motor drives
