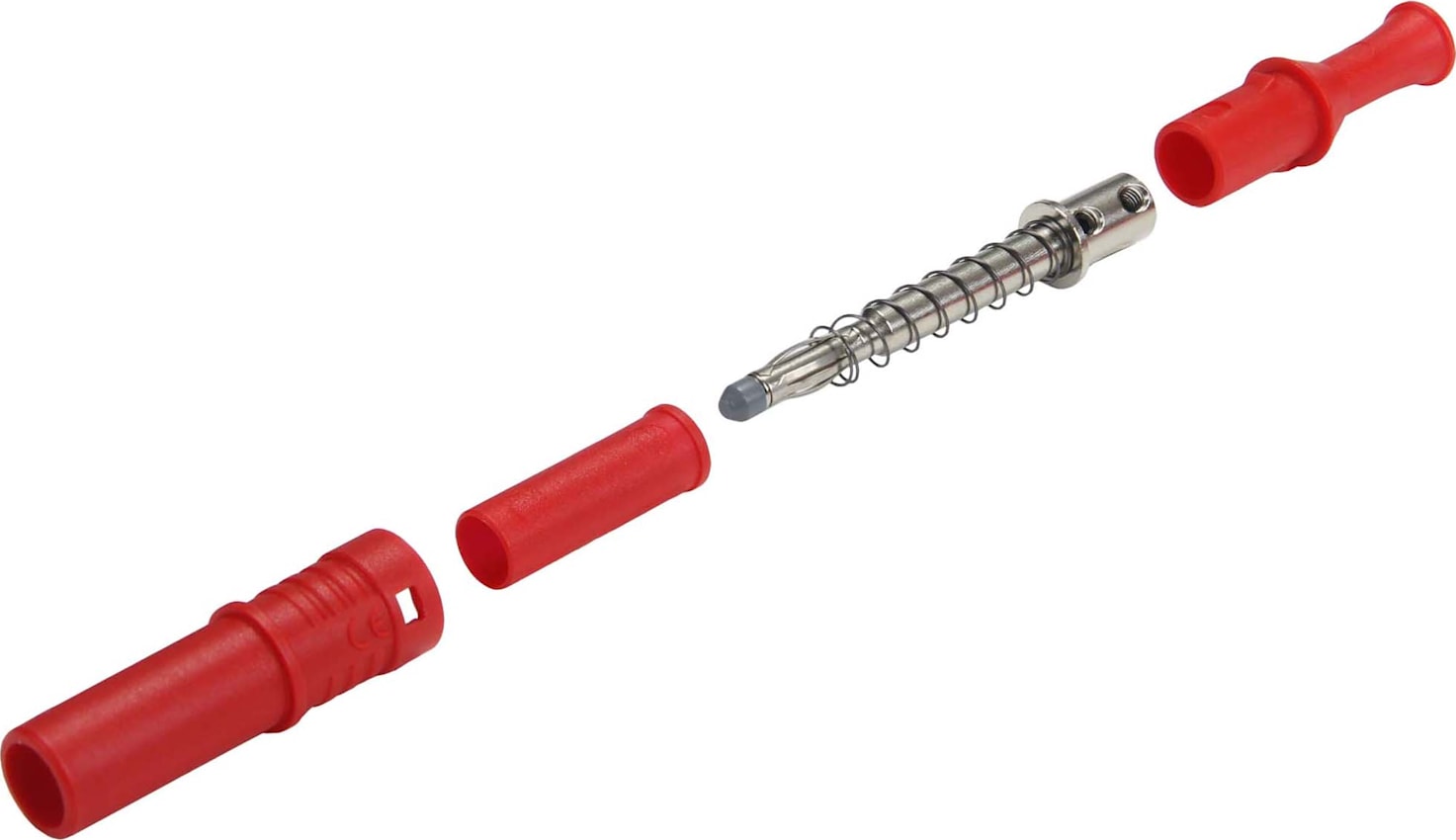

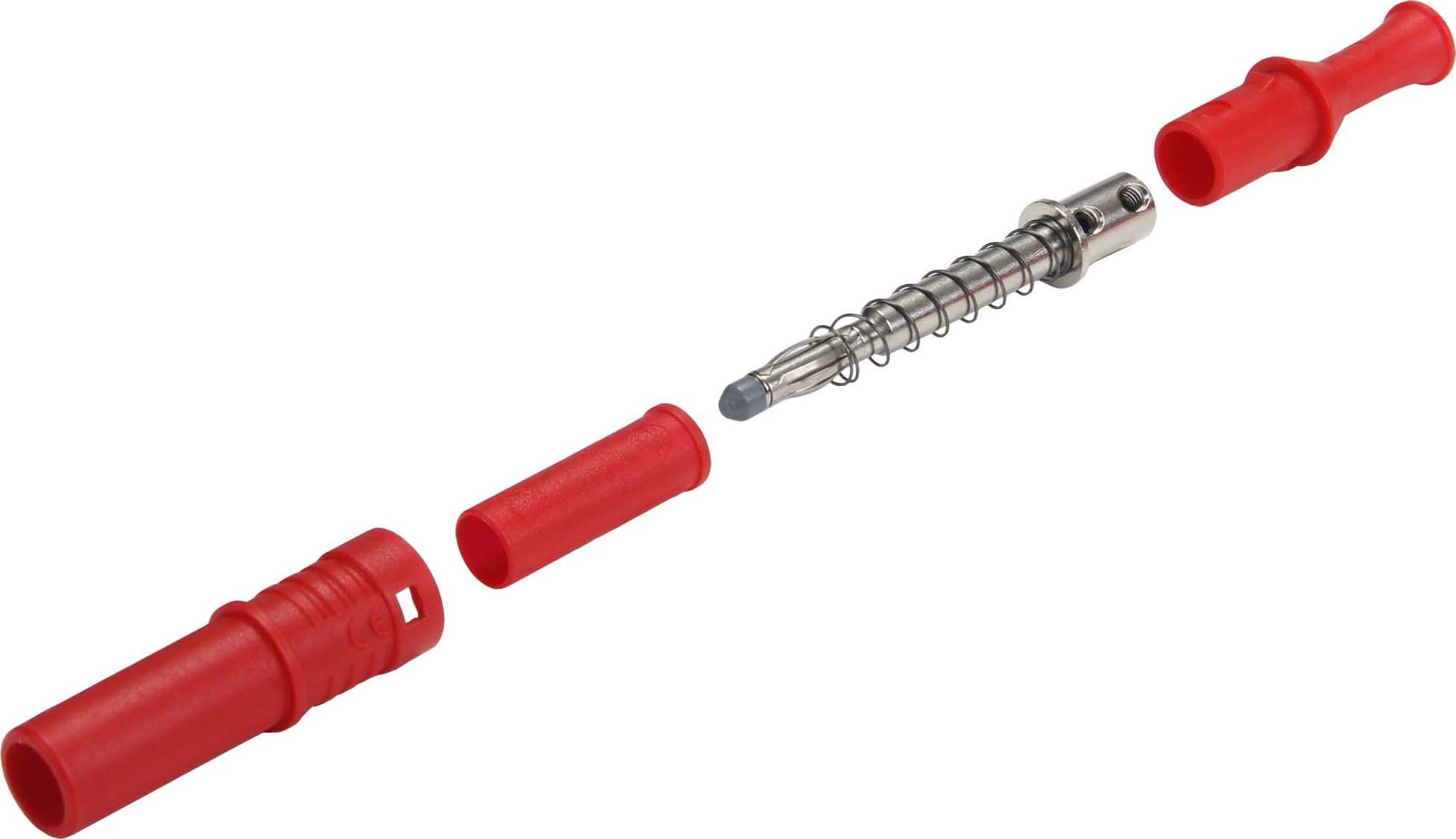

Cal Test CT3201-S-2 Banana Plugs 4mm Retractable Sleeve, Red

Name: Cal Test CT3201-S-2 Banana Plugs 4mm Retractable Sleeve, Red
Brand: Cal Test
SKU: Cal TestCT3201-S-2
Price: 46.10 USD
Availability: InStock

0 reviews | Model: Cal Test CT3201-S-2

Compare

DIY 4mm Retr Shth Plug, Solder - Red--Note:Price is for 10 Units

CT3201-S-2 Banana Plugs 4mm Retractable Sleeve, Red
IEC 61010-031 Rated
CT3200 Series 5-piece assemblies
RoHS (2011/65/EU) Compliant
DIY 4mm Retr Shth Plug, Solder - Red

View Product Details

List Price: $53.00

Your Price: $46.10

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

General Specifications
Model	CT3202	CT3202W	CT3201-#	CT3201-S-#	CT2015-#	CT2017-#
Style	In-Line				Stacking
Wire Attachment	Set Screw			Solder	Set Screw	**Spring-Loaded Clamp
Type	Set		Individual
IEC Rating	*600 V CAT II				30 VAC / 60 VDC
Voltage Max	--	--	--	--	1,200 VAC / VDC
Current Max	36 A
Body Insulation	Polyamide (Nylon)
Plug and Contact Material	Brass & BeCu, Nickel Plt.
Wire Max	2.5 mm²(13 AWG) 3.9 mm (.154") Max
Assembly	Requires 1.5 mm Allen Wrench	Includes 1.5 mm Allen Wrench	Requires 1.5 mm Allen Wrench	n/a	Requires Small Screwdriver	n/a
Color	Black and Red		See How to Order
Qty / Pkg	1 Pair		10
* IEC Rating when using equally rated lead wire. ** Depress the spring loaded clamp, insert the wire and release. The connection is completed including a secure grip on the wire’s insulation.
Order Information
Model	Color (-#)
CT3201-#	-0 Black	-2 Red	-4 Yellow	-5 Green	-6 Blue	-9 White
CT3201-S-#	-0 Black	-2 Red	-4 Yellow	-5 Green	-6 Blue	-9 White
CT2015-#	-0 Black	-2 Red	-4 Yellow	-5 Green	-6 Blue	-9 White
CT2017-#	-0 Black	-2 Red	-4 Yellow	-5 Green	-6 Blue	-9 White
