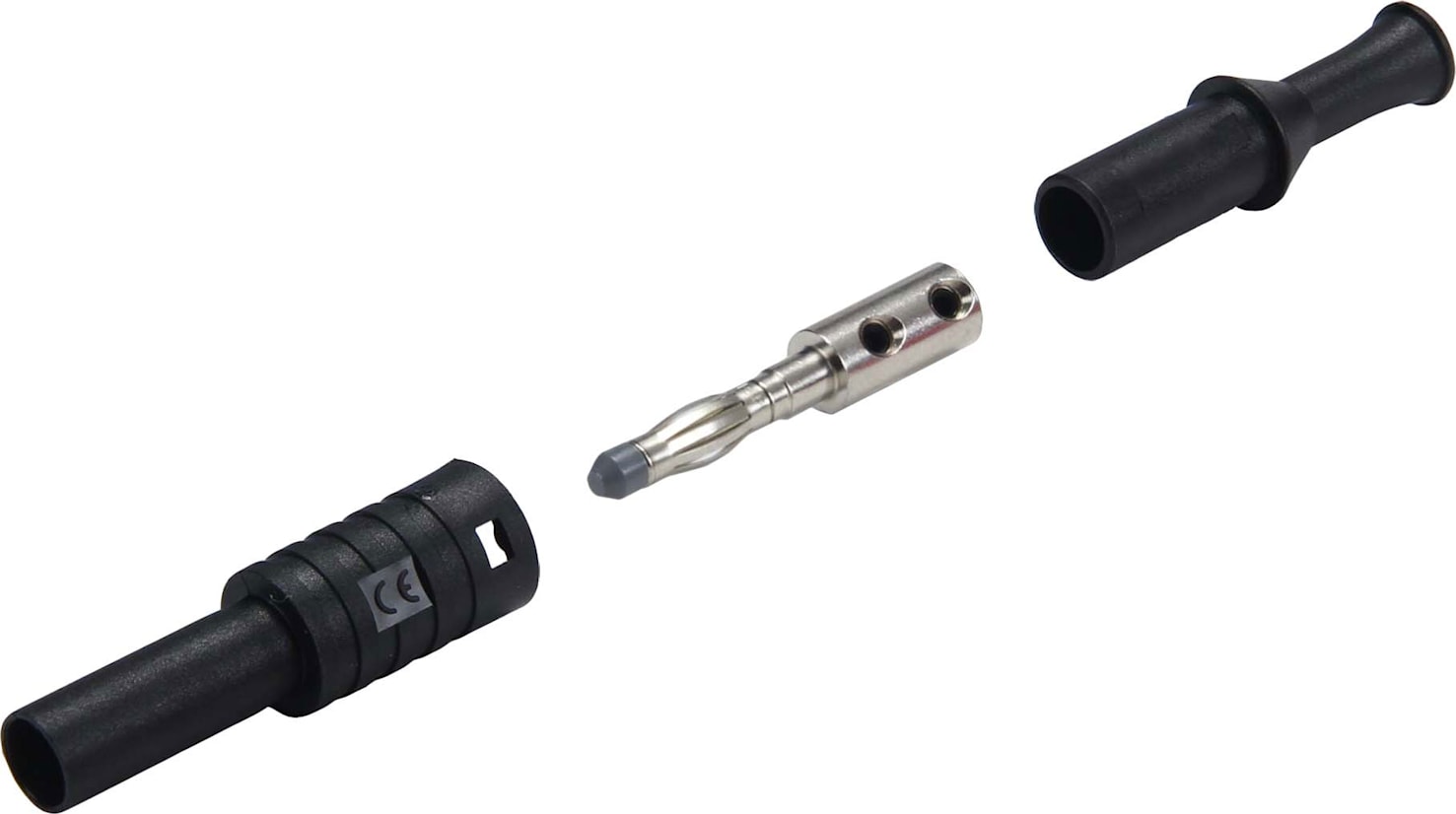

Cal Test CT2989-S-0 4mm Banana Plugs Sheath, In-Line

Name: Cal Test CT2989-S-0 4mm Banana Plugs Sheath, In-Line
Brand: Cal Test
SKU: Cal TestCT2989-S-0
Price: 35.70 USD
Availability: InStock

0 reviews | Model: Cal Test CT2989-S-0

Cal Test CT2989-S-0 Banana Plugs 4mm Sheath, In-Line

Compare

DIY 4mm Shth Plug, Solder - Black--Note:Price is for 10 Units

CT2989-S-0 Banana Plugs 4mm Sheath, In-Line
DIY 4mm Shth Plug, Solder - Black
IEC 61010-031 rated
CT2989 and CT3205 3-piece assembly
RoHS (2011/65/EU) compliant

View Product Details

List Price: $41.00

Your Price: $35.70

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

General Specifications
Model	CT3250-#	CT3205	CT3205W	CT2989-#	CT2989-S-#
Wire Attachment	*Spring-Loaded Button	Set Screw			Solder
Type	Individual	Set		Individual
**IEC Rating	600 V CAT II	1,000 V CAT III			1,000 V CAT III / 600 V CAT IV
Current Max	20 A	36 A
Body Insulation	Polyamide (Nylon)
Plug and Contact Material	Brass and BeCu, Nickel Plt.
Wire Max	2.5 mm²(13 AWG) 3.9 mm (.154") Max
Assembly	n/a	Requires 1.5 mm Allen Wrench	Includes 1.5 mm Allen Wrench	Requires 1.5 mm Allen Wrench	n/a
Color	See Ordering Information		Black and Red		See Ordering Information
Qty / Pkg	10	1 Pair		10
Depress the spring loaded button, insert the wire and release. The connection is completed including a secure grip on the wire's insulation. **IEC Rating when using equally rated lead wire.
Order Information
Model	Color (-#)
CT3250-#	-0 Black	-2 Red	--	--	--	--
CT2989-#	-0 Black	-2 Red	-4 Yellow	-5 Green	-6 Blue	-9 White
CT2989-S-#	-0 Black	-2 Red	-4 Yellow	-5 Green	-6 Blue	-9 White
