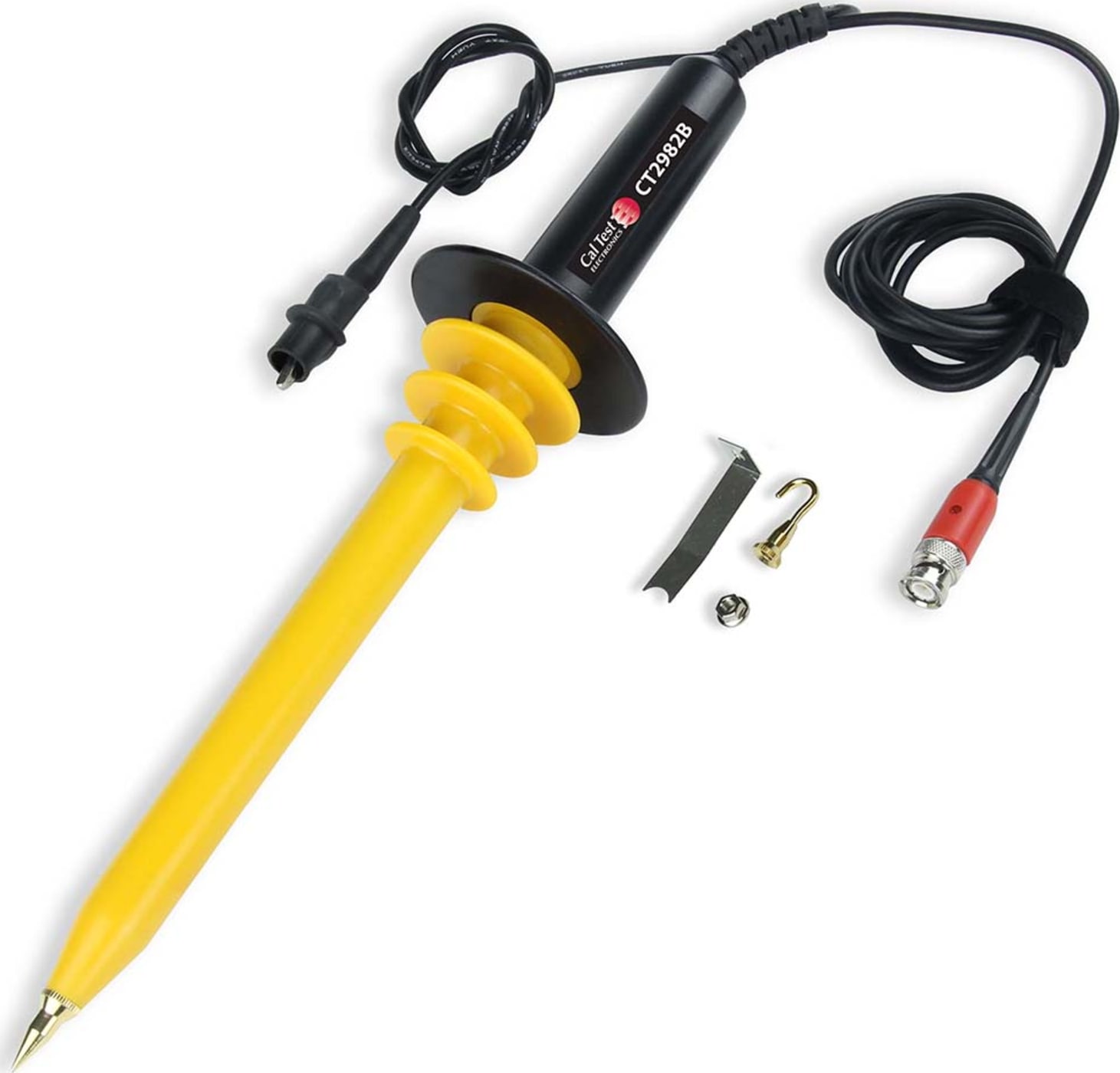

Cal Test CT2982B High Voltage Oscilloscope Probe (40MHz, 1000X, 10KV)

Name: Cal Test CT2982B High Voltage Oscilloscope Probe (40MHz, 1000X, 10KV)
Brand: Cal Test
SKU: Cal TestCT2982B
Price: 321.20 USD
Availability: InStock
Rating: 5.00 (1 reviews)

5 (1 Review) | UPC: 849947001318 | Model: Cal Test CT2982B

Compare

HV Oprobe, 10kV, 40MHz - 2.0m, BNC(m)

High voltage probes allow safe and accurate voltage measurement using your oscilloscope.
Features a 1000:1 divider ratio with voltage up to 10 kV (DC+peak AC), 7 kV (ACrms) and bandwidth up to 40 MHz.
Compatible with oscilloscopes from all major manufacturers, the probe is a necessity for user safety during high voltage measurements.
Can be used with your DMM by employing BNC Converter CT3197B

View Product Details

List Price: $321.20

In Stock:

View Payment Options

Recommended for you

Cal Test CT2982B - High Voltage Oscilloscope Probe (40MHz, 1000X, 10KV)

High voltage probes allow safe and accurate voltage measurement using your oscilloscope.
Features a 1000:1 divider ratio with voltage up to 10 kV (DC+peak AC), 7 kV (ACrms) and bandwidth up to 40 MHz.
Compatible with oscilloscopes from all major manufacturers, the probe is a necessity for user safety during high voltage measurements.
Can be used with your DMM by employing BNC Converter CT3197B

The Elditest CT2982B is a 10 kV high voltage divider probe for use with both digital and analog oscilloscopes.

General Specifications
Type	High Voltage
Voltage Max (DC + peak AC)	10 kV CAT I
Voltage Max (ACrms)	7 kV CAT I
Attenuation	1000x
Bandwidth	40 MHz
Input Impedance	100 MΩ
Input Capacitance	3 pF
Output Impedance	1 MΩ
Risetime	8.8 ns
Temperature Coefficient	≤200 ppm/°C
Compensation Range	5 – 50 pF
Accuracy VDC	±3% (below 10 kV)
Accuracy VAC	±3% @ 1 kHz ±3 dB 0 to 40 MHz
Operating Temperature	0° C to 50° C (32° F to 122° F)
Storage Temperature	-20° C to 70° C (-4° F to 158° F)
Humidity	≤80% RH @ 40° C (104° F)
Cable Length	2 m ± 0.2 m
Readout Actuator	No
Dimensions	3 x 3 x 34 cm (1.2 x 1.2 x 13 in)
Weight	250 g (.55 lbs)
RoHS 2	Compliant
Warranty	1-year
