Cal Test CT2631-S-2 Banana Plugs

Name: Cal Test CT2631-S-2 Banana Plugs
Brand: Cal Test
SKU: Cal TestCT2631-S-2
Price: 42.30 USD
Availability: InStock

0 reviews | Model: Cal Test CT2631-S-2

Compare

DIY 4mm StkShth Plug, Solder - Red-Note:Price is for 10 Units

IEC Voltage rating - 600 V CAT IV / 1000 V CAT III (*when using equally rated lead wire)
Insulated tip on plug

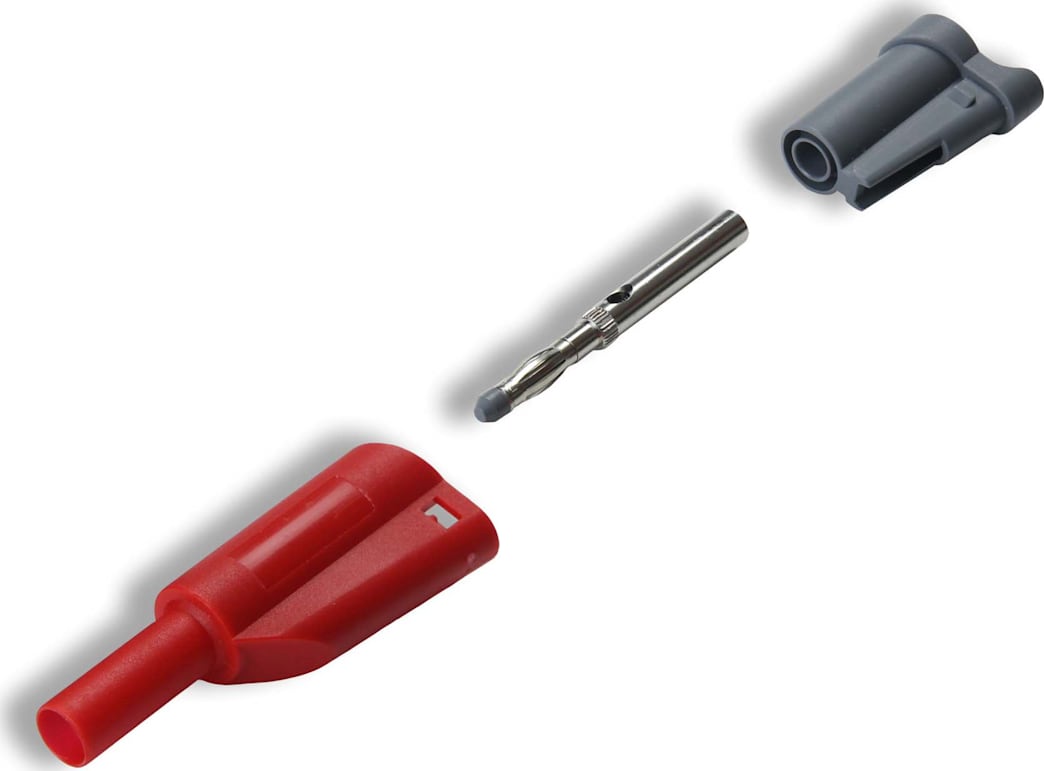

Three (3) piece assembly
Sold in package of 10
Quick solder assembly

View Product Details

List Price: $43.00

Your Price: $42.30

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	Cal Test CT2631-S-2 DIY 4mm StkShth Plug, Solder - Red-Note:Price is for 10 Units	Cal Test CT2631-0 DIY 4mm StkShth Plug, Solderless - Black	Cal Test CT2631-2 DIY 4mm StkShth Plug, Solderless - Red	Cal Test CT2631-6 DIY 4mm StkShth Plug, Solderless - Blue-Note:Price is for 10 Units	Cal Test CT2631-4 DIY 4mm StkShth Plug, Solderless - Yellow-Note:Price is for 10 Units< ...	Cal Test CT2631-9 DIY 4mm StkShth Plug, Solderless - White-Note:Price is for 10 Units	Cal Test CT2631-5 DIY 4mm StkShth Plug, Solderless - Green-Note:Price is for 10 Units	Cal Test CT2631-S-0 DIY 4mm StkShth Plug, Solder - Black-Note:Price is for 10 Units	Cal Test CT2631-S-4 DIY 4mm StkShth Plug, Solder - Yellow-Note:Price is for 10 Units	Cal Test CT2631-S-5 DIY 4mm StkShth Plug, Solder - Green-Note:Price is for 10 Units	Cal Test CT2631-S-6 DIY 4mm StkShth Plug, Solder - Blue-Note:Price is for 10 Units	Cal Test CT2631-S-9 DIY 4mm StkShth Plug, Solder - White-Note:Price is for 10 Units
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

4 MM INDIVIDUAL, FULLY INSULATED BANANA PLUG, DIY FIXED SHEATH, STACKABLE, SOLDER SAFETY VERSIONS.

4 mm fully insulated Do-it-Yourself (DIY) fixed sheath stacking banana plug allow you to build your own test leads and meet the latest safety standards. Both solder and solderless versions with easy snap together assembly.

Color	Red
Current Max	36 A
Temperature	-20° to +80°C
RoHS 2	Compliant
Insulator Body	Polypropylene
Plug Body	Brass, Nickel Plated
Contact Spring	Becu, Nickel Plated
Rating
Voltage	1000V CAT III / 600V CAT IV P2,Reinforced Insulation, CE Mark
Internal Resistance	<10mΩ
Maximum Wire Size
Conductor	Ø.090 (12AWG)
Insulation	Ø.16 (Ø4.0) MAX
Strip Length	.25 (6.4)
