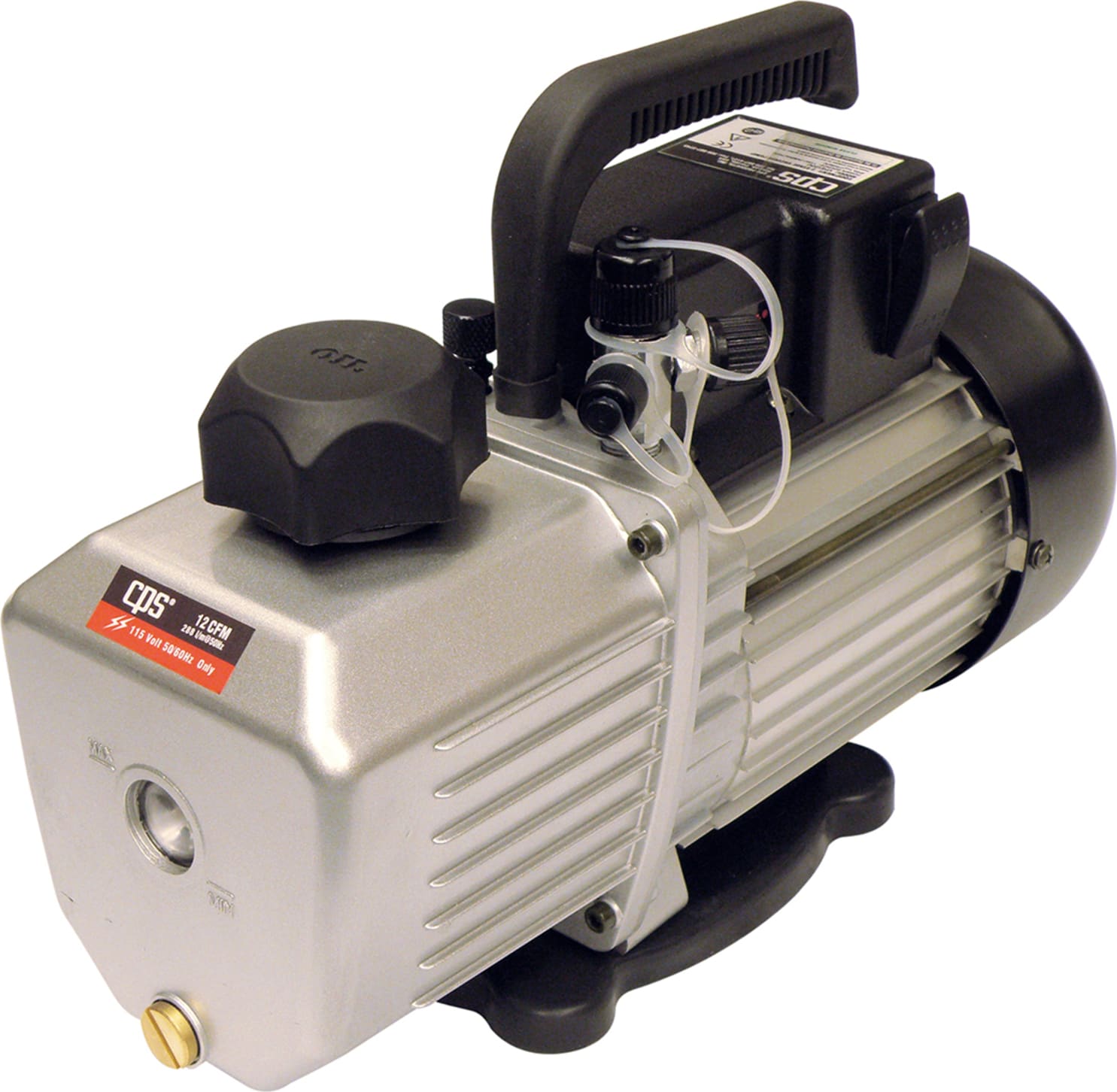

CPS VPS6DU - Sparkless Ignition Proof Vacuum Pump 6 CFM Two-Stage

5 (1 Review) | Model: CPS VPS6DU

Compare

Ignition Proof 6 CFM Two-Stage, 115 V, w/ Gas Ballast Valve

Designed and tested to meet ANSI 12:12.01 Ignition Proof standards
For use on refrigeration systems utilizing Class A1 (nontoxic, nonflammable), Class A2L (non-toxic, low flammability), Class A2 (nontoxic, flammable), and Class A3 (nontoxic, flammable) and Ammonia (NH3)
Air-cooled, thermally protected motors encased in a durable aluminum housing
Oil filled rotary vacuum pump cartridge construction
Combination oil fill/exhaust port utilizes CPS exclusive oil mist free exhaust cap
Large double-sealed oil sight glass
Sealed start relay
Steel inlet port with multiple intake sizes (1/4, 3/8 & 1/2 SAE), Ammonia compatible
Ignition proof ON-OFF switch
Rubber lined handle, skid-resistant rubber base

View Product Details

List Price: $476.52

Your Price: $412.98

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded.
View Payment Options

Request Quote

Items in This Series



Product	CPS VPS6DU Ignition Proof 6 CFM Two-Stage, 115 V, w/ Gas Ballast Valve	CPS VP10D Premium Series 10 CFM Two-Stage, Dual Voltage (115/230V), w/Gas Ballast Valve	CPS VP12D Premium Series 12 CFM Two-Stage, Dual Voltage (115/230V), w/Gas Ballast Valve	CPS VP2D Premium Series 2 CFM Two-Stage, Dual Voltage (115/230V), w/Gas Ballast Valve	CPS VP4D Premium Series 4 CFM Two-Stage, Dual Voltage (115/230V), w/Gas Ballast Valve	CPS VP6D Premium Series 6 CFM Two-Stage, Dual Voltage (115/230V), w/Gas Ballast Valve	CPS VP8D Premium Series 8 CFM Two-Stage, Dual Voltage (115/230V), w/Gas Ballast Valve	CPS VPS12DU Ignition proof 12 CFM Two-Stage, 115V, w/Gas Ballast Valve
Price
In Stock
Number of Stages (Pumps)	2	2	2	2	2	2	2	2
Vacuum (Vacuum Pumps)	6 CFM	10 CFM	12 CFM	2 CFM	4 CFM	6 CFM	8 CFM	12 CFM
Line Power (Pumps)	110-120 VAC	110/220 VAC	110/220 VAC	110/220 VAC	110/220 VAC	110/220 VAC	110/220 VAC	110-120 VAC
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

CPS VPS6DU

Combination oil fill/exhaust port utilizes CPS exclusive oil mist free exhaust cap
Large double-sealed oil sight glass
Sealed start relay
Steel inlet port with multiple intake sizes (1/4, 3/8 & 1/2 SAE), Ammonia compatible
Ignition proof ON-OFF switch

Sparkless Ignition Proof Vacuum Pump 6 CFM Two-Stage

CPS introduces another addition to the Pro-Set vacuum pump line-up with the VPS series. An efficient, lightweight and reliable vacuum pump, that meets ANSI ignition proof standards.

General Specifications
Stage	2
Ultimate Vacuum	10 Microns
Refrigerant Class	A1, A2, A3
Dimensions	13.1˝ x 5.5˝ x 10˝
Weight	22.5 lb (10.2 kg)
Free Air Displacement	6 CFM @ 60 Hz
Motor Size (HP)RPM @ 50 / 60 Hz	1/2 HP 3440 RPM
Voltage	115V, 60Hz
Power Connection to Pump	10’ Hard wired
Oil Capacity	16 oz (470 ml)

Tech Specs

HVAC Equipment and Instruments/HVAC Vacuum Pumps
Number of Stages (Pumps)	2
Vacuum (Vacuum Pumps)	6 CFM
Line Power (Pumps)	110-120 VAC
Test Equipment General Attributes
Safety Approval	CE, UL
Product Weight	22.5 LBS
Product Height	10 IN
Product Length	13.1 IN
Product Width	5.5 IN
Power Supply Voltage	120V 50/60 Hz
Country of Origin	United States
