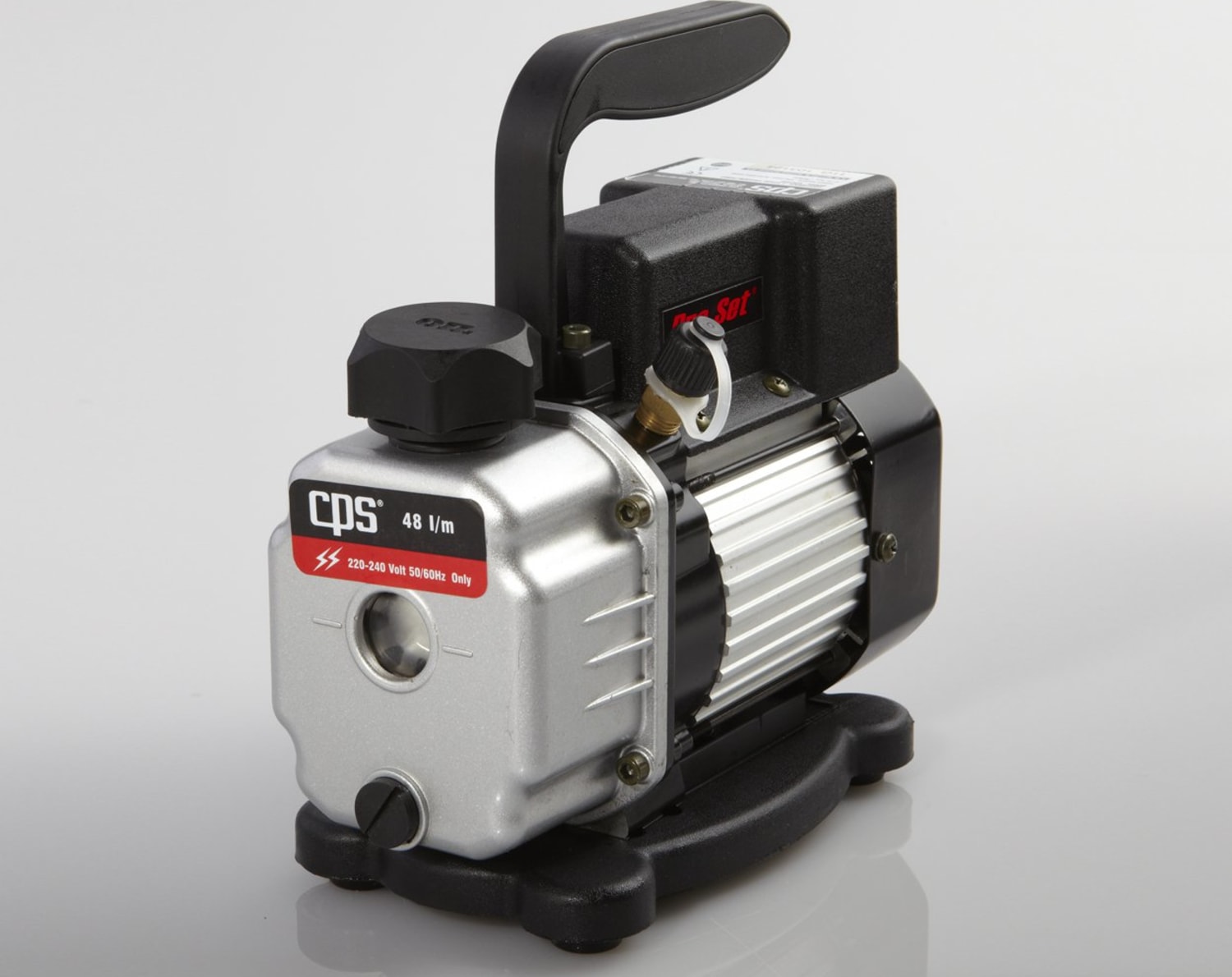

CPS VPC2SE Pro Set Single Stage Vacuum Pump, 2 CFM, 220V/50Hz

0 reviews | Model: CPS VPC2SE

Compare

Compact Series 2 CFM Single-Stage, 220V Vacuum Pump

Innovative compact and lightweight design weighs only 9.3 lb / 4.2 kg
Exceptional ultimate vacuum rating as low as 100 microns
Advanced air cooled motor design for operation in high ambient temperatures
Proprietary oil mist free exhaust port cap for clean, safe job environment
Easy maintenance with large oil sight glass and fill port with easily accessible oil drain port
Solid rubber base provides extreme shock resistance
Sure grip handle ergonomically designed for superior comfort and portability
Extremely compact and portable design

View Product Details

List Price: $160.52

In Stock:

View Payment Options

Recommended for you

CPS VPC2SE Pro Set Single Stage Vacuum Pump, 2 CFM, 220V/50Hz

CPS VPC2SE

Free Air Displacement: 48l/m @ 50Hz
Power: 220-240V 50 Hz Schuko Plug
Ultimate Vacuum: as low as 100 Microns
Intake Fittings: 1/4" SAE and 1/2" ACME

The VPC2SE Premium Compact series of Pro-Set vacuum pumps incorporate the perfect balance of professional grade performance features in an extremely portable, lightweight package. This innovative 2 CFM, single stage unit is factory tested and certified to achieve an ultimate vacuum rating as low as 100 microns and weighs only 9.3 lb / 4.2 kg. Big performance in a small package, the VPC2SE provides fast, deep vacuums without weighing you down.

Model	VPC2DU	VPC2SU	VPC2SE	VPC4SU	VPC4SE
Stage	2	1
Ultimate Vacuum	15 Microns	100 Microns
Refrigerant Class	A1, A2
Dimensions (Inches)	11.3" x 4.5" x 8.0"	9.1" x 4.5" x 8.0"		11.3" x 4.5" x 8.0"
Weight	12.1 lb (5.5 kg)	9.3 lb (4.2 kg)		11.0 lb (5 kg)
Free Air Displacement	2 CFM @ 60Hz (48 l/m @ 50Hz)			4 CFM @ 60 Hz (96 l/m @ 50 Hz)
Motor Size (HP) RPM @ 50/60Hz	1/4 HP (2880 , 3440 RPM)	1/5 HP (2880, 3440 RPM)		1/4 HP (2880, 3440 RPM)
Voltage	115V @ 60 Hz	115V @ 60 Hz	220-240V @ 50 Hz	115V @ 60 Hz	220-240V @ 50 Hz
Power Cord Connection to Pump (& Plug Type)	Hardwired, Nema 115V Plug	Hardwired, Nema 115V Plug	Universal IEC, Schuko Plug	Hardwired, Nema 115V Plug	Universal IEC, Schuko Plug
On/Off Power Switch	Yes
Operating Temperature Range	32°F to 125°F (0°C to 52°C)
Oil Capacity	9 oz (250 ml)	9 oz (250 ml)		10 oz (300 ml)
Gas Ballast	No
Intake Fittings	SAE: 1/4", ACME: 1/2"
Warranty (Years)	1

_{Legend: VP =}_{Vacuum Pump; C = Compact; 2,4 = CFM; E = 220-240VAC 50 Hz; S = Single Stage; U = 115VAC, 50/60 Hz. Refrigerant Classes: A1 (non-toxic, non-flammable); A2 (non-toxic, flammable)}

Specifications
Model No	VPC2SE
Power	220-240V 50/60 Hz Shuko Plug
Stages	1
Motor Size (HP) RPM @ 50/60Hz	1/5 (HP) 2880 / 3440 RPM
Dimensions (Inches)	9.1 x 4.5 x 8.0
Weight	9.3 lb / 4.2 kg
Operating Temperature Range	0 °C (32 °F) to 52 °C (125 °F)
Ultimate Vacuum	as low as 100 Microns
Oil Capacity	9 oz / 250 ml
Overload Protection	Motor thermally protected
Control System	On-Off power switch
Free Air Displacement	48 l/m @ 50Hz
Intake Fittings	1/4" SAE and 1/2" ACME

HVAC Equipment and Instruments/HVAC Vacuum Pumps
Number of Stages (Pumps)	1
Vacuum (Vacuum Pumps)	2 CFM
Line Power (Pumps)	220-240 VAC
Test Equipment General Attributes
HTS/Schedule B Number	8414100000
ECCN Number	EAR99
Country of Origin	United States
