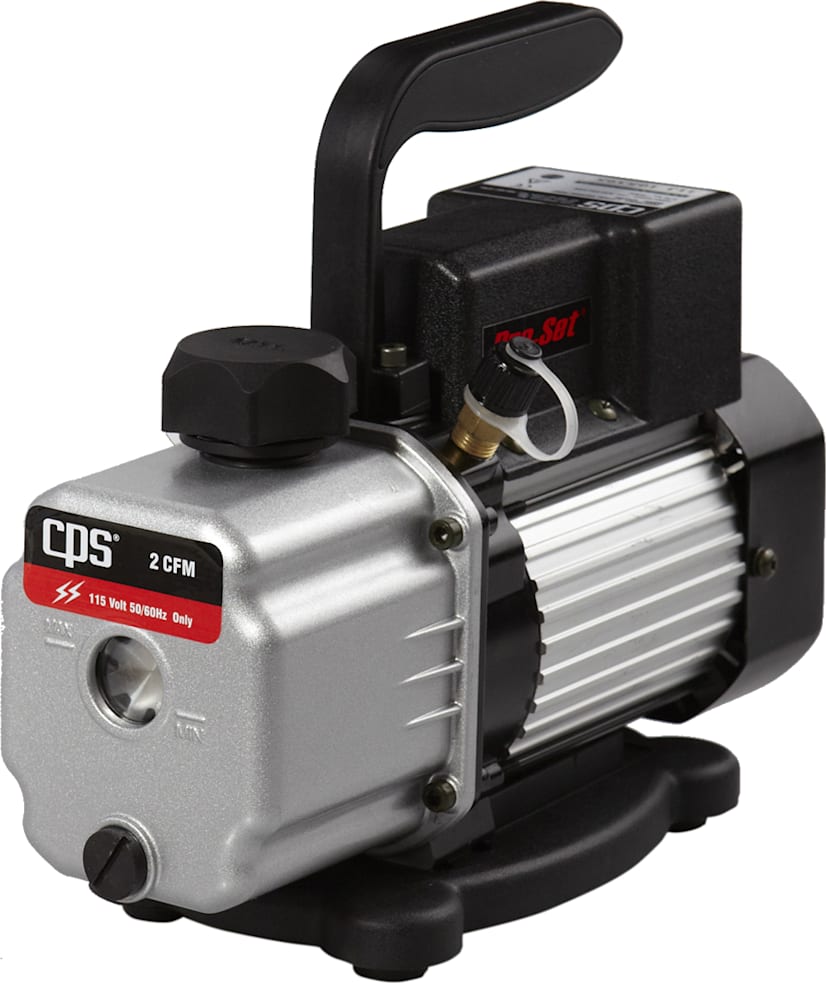

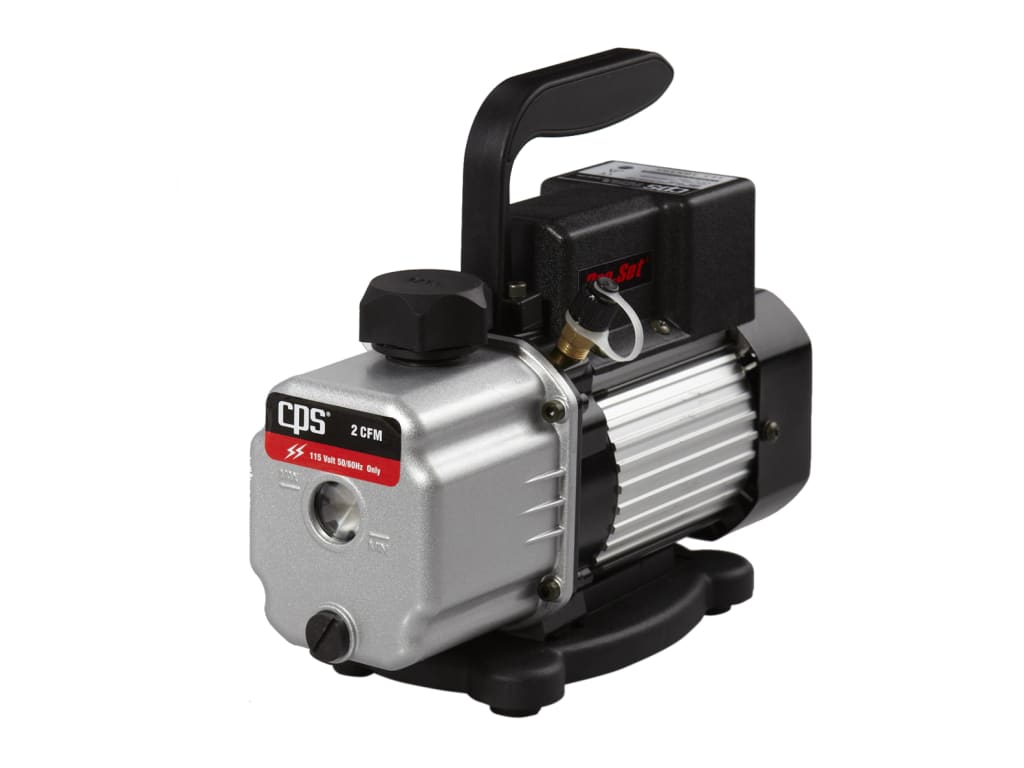

CPS VPC2DU - Pro Set Two Stage Vacuum Pump, 2 CFM

0 reviews | Model: CPS VPC2DU

Compare

Compact Series 2 CFM Two-Stage, 115V Vacuum Pump

Innovative compact and lightweight design weighs only 12.1 lb / 5.5 kg
Exceptional ultimate vacuum rating as low as 15 microns
Advanced air cooled motor design for operation in high ambient temperatures
Proprietary oil mist free exhaust port cap for clean, safe job environment
Easy maintenance with large oil sight glass and fill port with easily accessible oil drain port
Solid rubber base provides extreme shock resistance
Sure grip handle ergonomically designed for superior comfort and portability
Extremely compact and portable design

View Product Details

List Price: $259.11

Your Price: $224.56

Sign-in for GSA and EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!

View Payment Options

Request Quote

Items in This Series


Product	CPS VPC2DU Compact Series 2 CFM Two-Stage, 115V Vacuum Pump	CPS VPC2SU Compact Series 2 CFM Single-Stage, 115V Vacuum Pump	CPS VPC4SU Compact Series 4 CFM Single-Stage, 115V Vacuum Pump
Price
In Stock
Number of Stages (Pumps)	2	1	1
Vacuum (Vacuum Pumps)	2 CFM	2 CFM	4 CFM
Line Power (Pumps)	110-120 VAC	110-120 VAC	110-120 VAC
Compare	Add to compare	Add to compare	Add to compare

Recommended for you

CPS VPC2DU

Free Air Displacement: 2 CFM @ 60hz
Power: 115V USA Plug
Ultimate Vacuum: as low as 15 Microns
Intake Fittings: 1/4" SAE and 1/2" ACME
Extremely compact and portable design

Pro Set Two Stage Vacuum Pump, 2 CFM

The VPC2DU Premium Compact Pro-Set vacuum pumps incorporate the perfect balance of professional grade performance features in an extremely portable, lightweight package. This innovative 2 CFM, 2 stage unit is factory tested and certified to achieve an ultimate vacuum rating as low as 15 microns and weighs only 12.1 lb / 5.5 kg. Big performance in a small package, the VPC2DU provides fast, deep vacuums without weighing you down.

Specifications
Model No	VPC2DU
Power	115V 50/60 Hz USA Plug
Stages	2
Motor Size (HP) RPM @ 50/60Hz	1/4 (HP) 2880 / 3440 RPM
Dimensions (Inches)	11.3 x 4.5 x 8.0
Weight	12.1 lb / 5.5 kg
Operating Temperature Range	0 °C (32 °F) to 52 °C (125 °F)
Ultimate Vacuum	as low as 15 Microns
Oil Capacity	9 oz / 250 ml
Overload Protection	Motor thermally protected
Control System	On-Off power switch
Free Air Displacement	2 CFM @ 60hz, 48l/m @ 50Hz
Intake Fittings	1/4" SAE and 1/2" ACME
Gas Ballast Valve	No

HVAC Equipment and Instruments/HVAC Vacuum Pumps
Number of Stages (Pumps)	2
Vacuum (Vacuum Pumps)	2 CFM
Line Power (Pumps)	110-120 VAC
Test Equipment General Attributes
Warranty	1 YEARS
Safety Approval	CE
Product Weight	12.1 LBS
Product Height	8 IN
Product Length	11.3 IN
Product Width	4.5 IN
Shipping Weight	13.91 LBS
Country of Origin	United States
