CPS VP2D-OB HVAC Vacuum Pumps - Number of Stages (Pumps): 2, Vacuum (Vacuum Pumps): 2 cfm, Line Power (Pumps): 110/220 VAC

0 reviews | Model: CPS VP2D-OB

Compare

Premium Series 2 CFM Two-Stage, Dual Voltage (115/230V), w/Gas Ballast Valve - This open box item may be missing original packaging, missing some small accessories or a lightly used demo unit.

This open box item may be missing original packaging, missing some small accessories or a lightly used demo unit.
Dual voltage operation 110-120V / 220V 50 / 60Hz
Exceptional ultimate vacuum rating as low as 10 microns
Advanced air cooled motor design for operation in high ambient temperatures
Proprietary oil mist free exhaust port cap for clean, safe job environment
Gas ballast valve speeds achievement of deep vacuum
Multiple port connections for 1 / 4", 3 / 8" SAE and 1 / 2" ACME
Easy maintenance with large oil sight glass and fill port with easily accessible oil drain port
Solid rubber base provides extreme shock resistance
Sure grip handle ergonomically designed for superior comfort and portability
Proprietary spring activated polymer based exhaust valve enables a 99.999% seal on the discharge port of the vacuum pump mechanism
Improved materials selection including hardness and additives, reduces wear and prevents galling
Improved internal oiling system design extends life and improves vacuum performance

View Product Details

List Price: $280.14

In Stock:

View Payment Options

Recommended for you

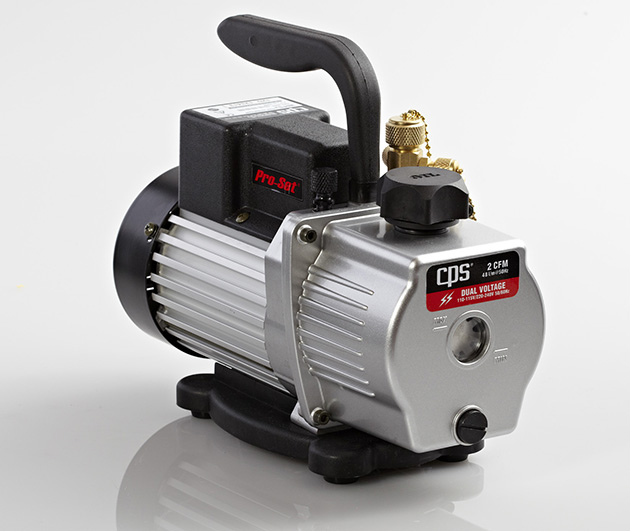

CPS VP2D Pro-Set Premium Series Vacuum Pump, 2 CFM

CPS VP2D

Free Air Displacement: 2 CFM @ 60 Hz, 48 l/m @ 50 Hz
Power: 110V-120V / 220V 50/60 Hz USA plug
Ultimate Vacuum: as low as 10 microns
Intake Fittings: 1/4" SAE, 3/8" SAE and 1/2" ACME

The VP2D Pro-Set Premium Series vacuum pump is a 2 CFM, single stage unit with a versatile dual voltage 1/3 HP motor. The unit boasts the same high quality, high value features engineered into all of the Pro-Set vacuum pumps providing performance excellence and years of reliable service.

For use with class A1 (non-toxic, non-flammable), class A2 (non-toxic, low-flammable) refrigerants
Air cooled, thermally protected motors encased in a durable aluminum housing
Oil filled rotary vacuum pump cartridge construction
Large oil-fill port with proprietary, mist free exhaust cap
Easily accessible oil drain port
Large oil sight glass
Multiple SAE and ACME intake fittings with check valve
On/Off power switch
Rubber lined handle, skid resistant rubber feet
Gas ballast valve

Model	VP2D	VP4D	VP6D	VPS6DU	VP8D	VP10D	VP12D	VPS12DU
Stage	2
Ultimate Vacuum	10 Microns				25 Microns
Refrigerant Class	A1, A2			A1, A2, A3	A1, A2
Dimensions (Inches)	12.2" x 5" x 9.6"	13.1" x 5.5" x 10"			14.9" x 5.7" x 10.6"
Weight	17.7 lb	22.1 lb	22.5 lb		29.8 lb	30.3 lb	30.9 lb
Free Air Displacement	2 CFM @ 60Hz	4 CFM @ 60Hz	6 CFM @ 60 Hz		8 CFM @ 60 Hz	10 CFM @ 60Hz	12 CFM @ 60Hz
Motor Size	1/3 HP	1/2 HP			2/3 HP	3/4 HP	1 HP
Voltage	110-120V Or 220-240V @ 50/60Hz			115V 60Hz	110-120V Or 220-240V @ 50/60Hz			115V 60Hz
Power Cord Connection to Pump	Universal IEC Socket & Voltage Selector Switch			Hard Wired	Universal IEC Socket, Voltage Selector Switch			Hard wired
Operating Temperature Range	32°F to 125°F (0°C to 52°C)
Oil Capacity	11.5 oz (330 ml)	15.5 oz (450 ml)	16 oz (470 ml)		29 oz (860 ml)	28 oz (830 ml)	27 oz (800 ml)
Gas Ballast Valve	Yes
Intake Fittings	SAE: 1/4", 3/8", ACME: 1/2"			SAE 1/4", 3/8", 1/2"
Warranty (Years)	2			1	2			1

_{Legend: VP= Vacuum Pump, VPS = Ignition Proof VP; 2,4,6,8,10,12 = CFM; D = Dual stage; A or E = 220-240VAC 50 Hz; J = 100VAC 50/60 Hz; U=115VAC 60Hz, No Consonant After "D" = Dual Voltage 110-120VAC or 220-240VAC 50/60Hz. Refrigerant Classes: A1 (non-toxic, non-flammable); A2 (non-toxic, flammable); A3 (non-toxic, explosive)}

Specifications
Power	110V-120V / 220V 50 / 60 Hz USA plug
Stage	Two
Motor Size (HP) RPM @ 50 / 60 Hz	1 / 3 (HP) 1440 / 1720 RPM
Dimensions	12.2" x 5" x 9.6"
Weight	17.7 lb / 8.0 kg
Operating Temperature Range	0 °C (32 °F) to 52 °C (125 °F)
Ultimate Vacuum	as low as 10 mirons
Oil Capacity	11.5 oz / 330 ml
Overload Protection	Motor thermally protected, dual voltage units have extra IEC fuse
Control System	On-off power switch
Free Air Displacement	2 CFM @ 60 Hz, 48 l / m @ 50 Hz
Intake Fittings	1 / 4" SAE, 3 / 8" SAE and 1 / 2" ACME

HVAC Equipment and Instruments/HVAC Vacuum Pumps
Number of Stages (Pumps)	2
Vacuum (Vacuum Pumps)	2 CFM
Line Power (Pumps)	110/220 VAC
General Attributes
Country of Origin	United States
