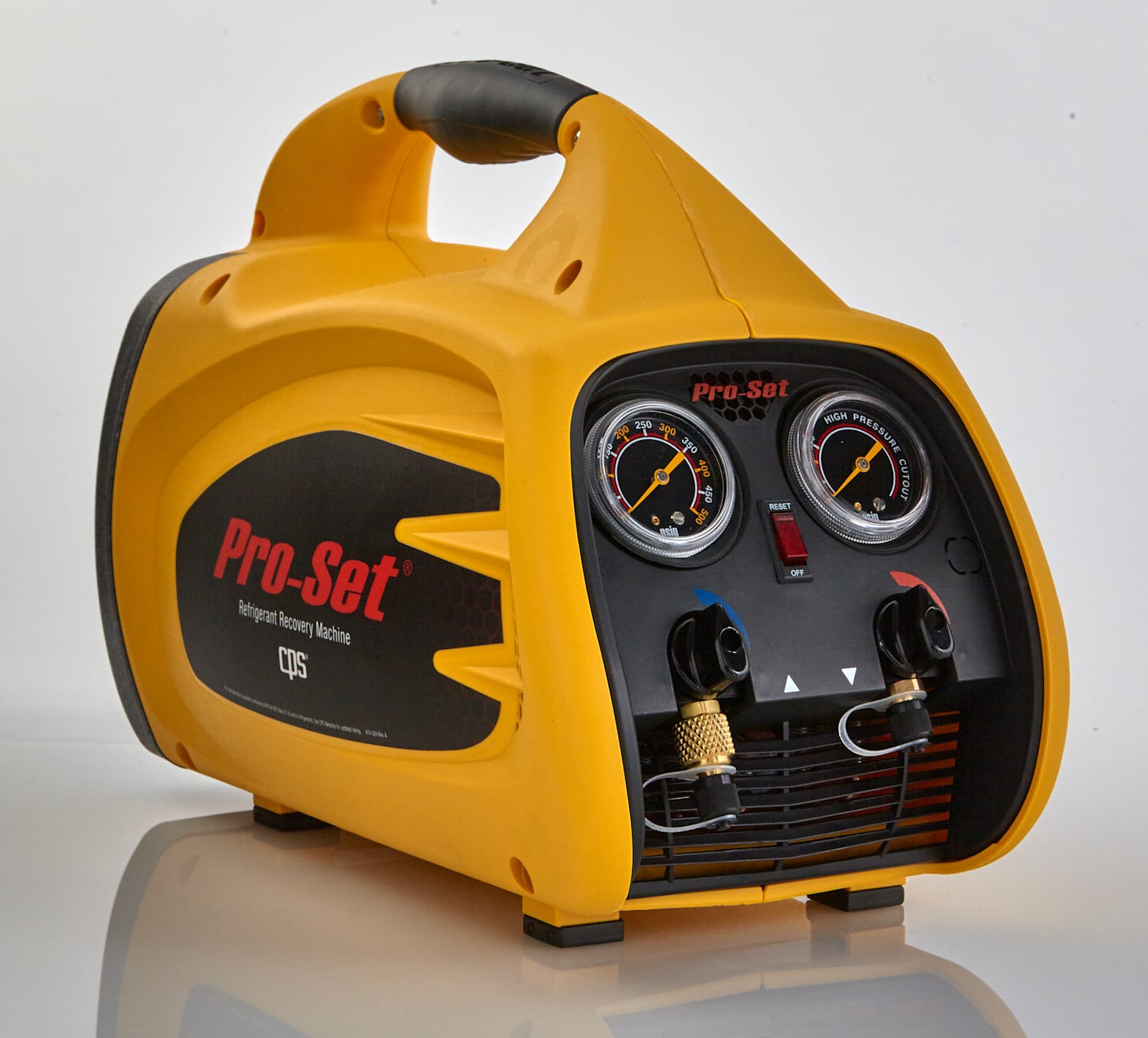

PRO-SET TR600
SPECIFICATIONS |
BLACKMAX TR700
SPECIFICATIONS |
| Model# |
TR600 |
TR700 |
| Voltage (Hz) |
115V (60 Hz) |
115V (60 Hz) |
| Motor Size |
2/3 HP |
2/3 HP |
| Motor Thermally Protected |
✔ |
✔ |
| Compressor Type |
Two cylinder, oilless |
Two cylinder, oilless |
| Overload Protection |
15 Amp |
15 Amp |
| Power Consumption |
1000 W |
1000 W |
| Tank Overfill Sensor Cord |
X |
X |
Suction
Pressure
Gauge |
Outer Scale |
-30" Hg to 500 psig |
-30" Hg to 500 psig |
| Inner Scale |
-76 cm Hg to 35 kg/cm |
-76 cm Hg to 35 kg/cm |
Discharge
Pressure
Gauge |
Outer Scale |
0-550 psig |
0 to 1000 psig |
| Inner Scale |
0 to 70 kg/cm |
| High Pressure Shut-Off |
550 psig (38 bar) |
550 psig (38 bar) |
AHRI 740
Class
Refrigerants |
Class III |
R-12, R-134A, R-401C, R-406A, R-500 |
R-12, R-134A, R-401C, R-406A, R-500 |
| Class IV |
R-22, R-401A/B, R-402B, R-407/C/D/E/F, R-408A, R-409A, R-411A/B, R-412A, R-502, R-509A |
R-22, R-401A/B, R-402B, R-407/C/D/E/F, R-408A, R-409A, R-411A/B, R-412A, R-502, R-509A |
| Class V |
R-402A, R-404A, R-407A/B, R-410A/B, R-507A |
R-402A, R-404A, R-407A/B, R-410A/B, R-507A |
| Operating Temperature Range |
32°F to 120°F (0°C to 49°C) |
32°F to 120°F (0°C to 49° C) |
| Power Cord Length |
3.5 ft (1.06 m) |
6' (1.82 m) Detachable |
| Dimensions |
Inch: 8.5" x 16.7" x 12.3" (cm: 21.6 x 42.4 x 31.2) |
Inch: 9.75" x 21" x 14.0" (Cm: 24.7x 53.3x 35.6) |
| Weight |
28 Lb (12.7 Kg) |
32 Lb (14.5 kg) |
| Approvals |
*UL, CE |
*UL, CE |
| Warranty (Years) |
1 |
1 |
