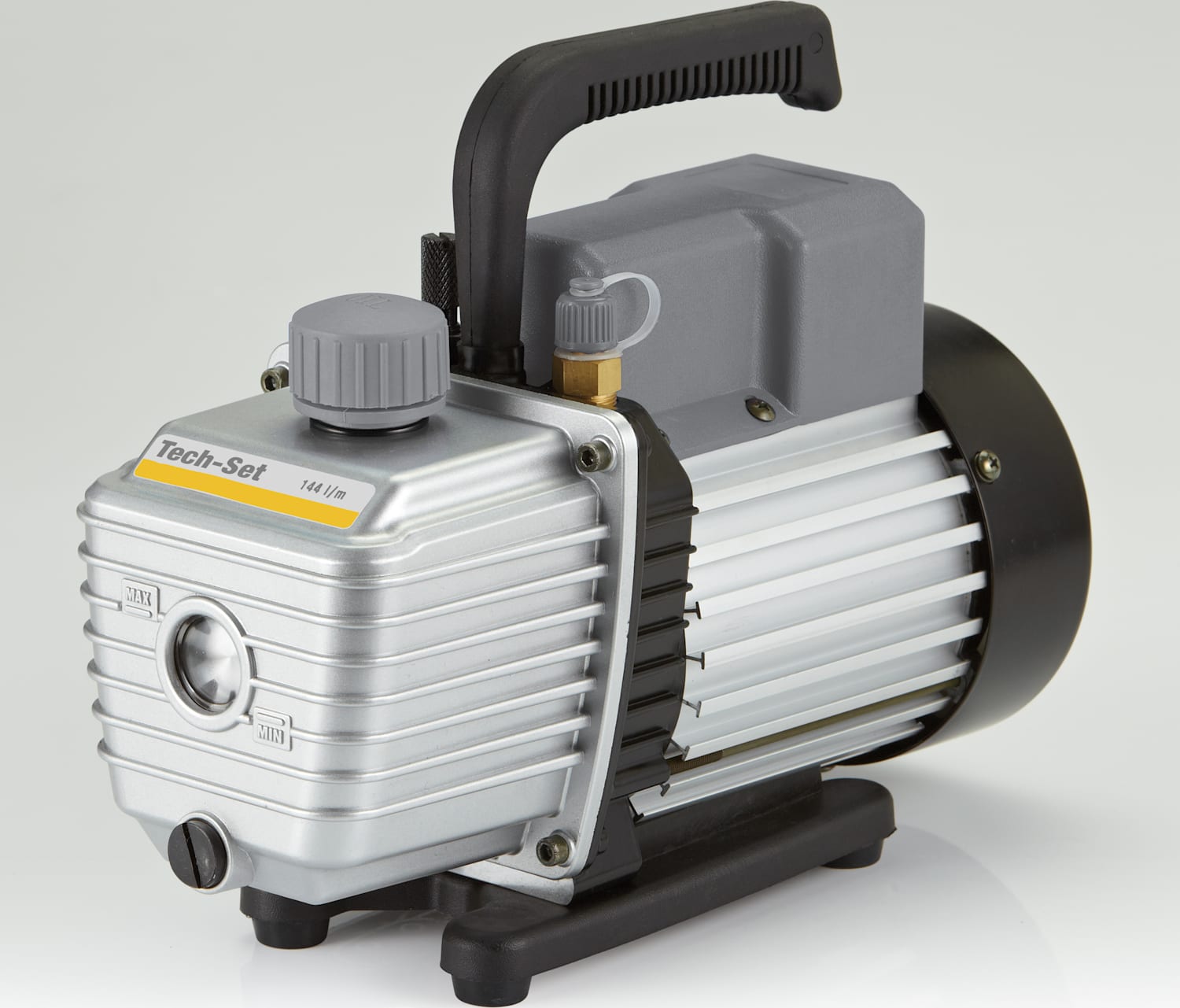

CPS TAVPC48SE Tech-Set Single Stage Compact Vacuum Pump
CPS TAVPC48SE
- Single stage vacuum pump
- Small, lightweight and compact
- Several capacities and voltages available
The Tech-Set line of vacuum pumps are designed for the working HVAC technician, and feature a core, essential line of good value vacuum pumps that provide affordable, reliable and dependable service. All models are single stage and feature small, lightweight and compact housings with dedicated 115VAC or 220VAC IEC plug configurations. Models range from 1.5, 3 or 5 CFM, 1/5 to 1/3 horsepower, and ultimate vacuum ratings from 50 to 100 microns.
| Model |
TAVPC48SU |
TAVPC48SE |
TAVPC96SU |
TAVPC96SE |
TAVP144SU |
TAVP144SE |
| Stage |
1 |
| Ultimate Vacuum |
100 Microns |
50 Microns |
| Refrigerant Class |
A1, A2 |
| Dimensions (Inches) |
8.75" x 4.1" x 9.25" |
11.25" x 4.1" x 9.25" |
12.62" x 4.8" x 9.62" |
| Weight |
9.5 lb (4.3 kg) |
11 lb (5.0 kg) |
14.8 lb (6.7 kg) |
| Free Air Displacement |
1.5 CFM @ 60 Hz (48 l/m @ 50 Hz) |
3 CFM @ 60 Hz (96 l/m @ 50 Hz) |
5 CFM @ 60 Hz (144 l/m @ 50 Hz) |
| Motor Size (HP) RPM @ 50/60Hz |
1/5 HP (2880, 3440 RPM) |
1/4 HP (2880, 3440 RPM) |
1/3 HP (2880, 3440 RPM) |
| Voltage |
115V @ 50/60 Hz |
220-240V @ 50 Hz |
15V @ 50/60 Hz |
220-240V @ 50 Hz |
15V @ 50/60 Hz |
220-240V @ 50 Hz |
| Power Cord Connection to Pump (& Plug Type) |
Hardwired, Nema 115V Plug |
Universal IEC, Schuko Plug |
Hardwired, Nema 115V Plug |
Universal IEC, Schuko Plug |
Hardwired, Nema 115V Plug |
Universal IEC, Schuko Plug |
| On/Off Power Switch |
Yes |
| Operating Temperature Range |
32°F to 125°F (0°C to 52°C) |
| Oil Capacity |
9 oz (250 ml) |
14 oz (400 ml) |
| Gas Ballast |
No |
| Intake Fittings |
SAE: 1/4", ACME: 1/2" |
| Warranty (Years) |
2 |
Legend: T = Tech-Set;
VP = Vacuum Pump;
C = Compact; 48, 96 or 144 = lpM;
E = 220-240VAC 50 Hz;
S = Single Stage;
U = 115VAC, 50/60 Hz Refrigerant Classes:
A1 (non-toxic, non-flammable);
A2 (non-toxic, flammable)
