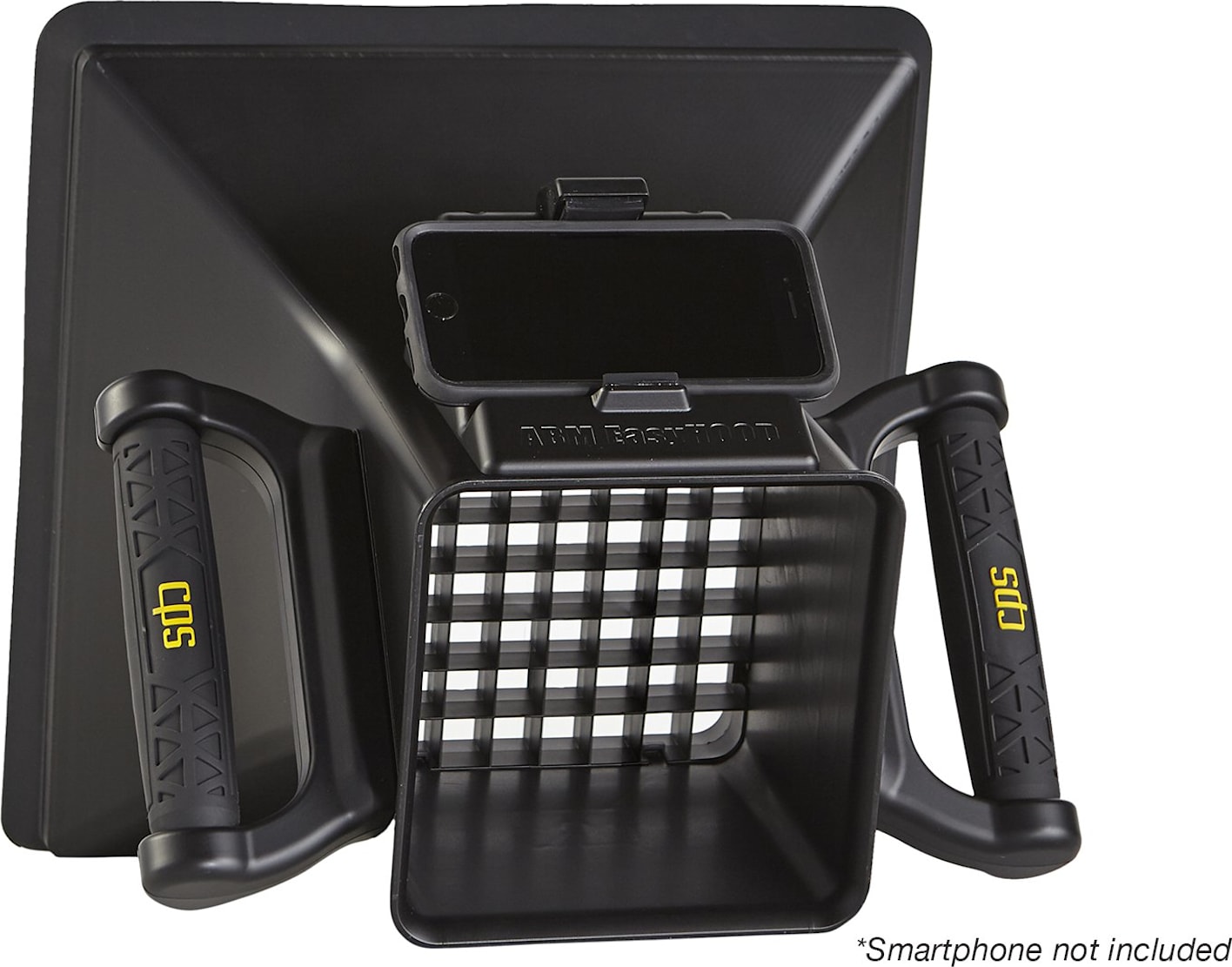

CPS ABM-HOOD - Airflow Capture Hood

4 (5 Reviews) | Model: CPS ABM-HOOD

Compare

Easy Hood - Air Flow Balancing Hood

Test and Balance reports - automatically generated
Easy, accurate and affordable HVAC airflow measurement in a lightweight, compact housing
Measures airflow in grilles up to 12" x 12" (.3m x .3m) or up to 24" x 24" (.6m x .6m) with the included Expansion Hood
Use smartphone and free CPS Link™ app to display, store and send data
Also measures temperature, wet bulb, dew point and relative humidity (ABM-200)
Accuracy, calibration, certification - in accordance with ANSI / AMCA standards
Note: Smartphone Not Included
DOES NOT COME WITH ABM-200 METER

Additional Features when used with free CPS LINK™ APP

Client Lists - Enter and retain client information
Job Tracker - Create and retain record of services performed
Geolocation - Record where (global coordiantes) and when (time stamp) tests performed

View Product Details

List Price: $430.29

Your Price: $372.92

Sign-in for GSA and EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!

View Payment Options

Request Quote

Items in This Series


Product	CPS ABM-HOOD Easy Hood - Air Flow Balancing Hood	CPS ABM-HOOD-200 Easy Hood - Air Flow Balancing Hood with ABM-200
Rating	(5)	(6)
Price
In Stock
Maximum CFM	720 CFM	720 CFM
Compare	Add to compare	Add to compare

Recommended for you

CPS ABM-HOOD

Easy, accurate and affordable HVAC airflow measurement in a lightweight, compact housing
Measures airflow in grilles up to 12" x 12" (.3m x .3m) or up to 24" x 24" (.6m x .6m) with the included Expansion Hood
Use smartphone and free CPS Link™ app to display, store and send data
Also measures temperature, wet bulb, dew point and relative humidity (ABM-200)

Airflow Capture Hood

The ABM EasyHood captures air speed values from air supply or return/exhaust vents in residential or commercial buildings, and easily converts that into an airflow (volume) reading. To accomplish this, The ABM EasyHood is used with an ABM-200 Airflow & Environment Meter (or ABM-100 Airflow Meter and ABM-100 app) and a smartphone having the latest, free, CPS Link™ app installed.

The Fastest and Easiest Way to Measure Airflow!

No more entering duct dimensions!
No more determining (or guessing) AK factors!
No more traversing the grille!

Other Balometer hoods cost 10 times as much, are too delicate and need constant calibration.

The ABM-Hood comes with a 24" x 24" extension hood that can be connected and extended in less than 5 seconds. We also revolutionized the Extension Hood (Patent Pending)

Stores readings on your smart device and generates professional reports to send customers
Rugged control box
Vortex air straightener
Low volume reducer plate (for readings down to 7 CFM)
Up to 12" x 12" tests with the control box or up 24" x24" tests with the extension hood
Wireless and wired connections to the ABM-100 & ABM-200
Canvas carrying case

CPS ABM-HOOD Specifications
Hood Opening	12" x 12" (.3 m x .3 m)
Expansion Hood Opening	24" x 24" (.6 m x .6 m)
Weight (with Expansion Hood)	4.75 lb (2.15 kg)
Hood Size (with Expansion Hood)	17.75" H x 25" W x 25" D (.45 m x .63 m x .63 m)
ABM-HOOD-2OO (when used with ABM-200 meter)
Wireless Connection Range	≤ 100 ft. (30.5 m)
Airflow Volume Regular Test	35 - 1,200 CFM (59 - 2,039 M3/H
Airflow Low Volume Test	7 - 100 CFM (12 - 170 M3/H
RH Range	Range: 0 - 85% Accuracy: ±4%
Operating Temperature	Range: 0 ˚F to 140 ˚F (-18 ˚C to 60 ˚C) Accuracy: ±0.7% (0.4 ˚C)
Auto Power Off	No connection or 30 sec after closing app
Battery Type (3.0 V)	Inside ABM-200 (CR2450 Coin Cell, Lithium)
Battery Life	> 5OO hrs.
Calibration, Certification	Accuracy verified in accordance with ANSI AMCA 201-207 Airflow Rate Device Verification. Airflow calibration and certification tests performed at a 3rd party AMCA Certified Laboratory in accordance with ANSI / AMCA 210-ANSI / AMCA 51 tests methods
Warranty	1 Year (including ABM-HOOD)

Balometer Attributes
Maximum CFM	720 CFM
Test Equipment General Attributes
Product Height	15.00 IN
Product Length	17.50 IN
Product Width	17.30 IN
Shipping Weight	11.98 LBS
HTS/Schedule B Number	9026.90.4000
ECCN Number	EAR99
Country of Origin	United States
Shipping Height	15.00 IN
Shipping Length	17.50 IN
Shipping Width	17.30 IN

4

Out of 5

Average Customer Review

Share your thoughts with other customers

Write a Review

Displaying all 5 reviews

Most Helpful First | Newest First

Recommend to a Friend

Cps ABM-hood

5.0

The unit works great and is built well

Keith Tjosvold on Apr 09, 2018

Watch the video of it and decide for yourself

2.0

I found this video on youtube of the hood in use and I'm having similar results. I question how accurate it really is. If I cant trust it to give accurate readings than its a waste of money. Its cheap but you get what you pay for. https://youtu.be/S9oAqU3BAD8

Alex Armijo on Mar 09, 2018

Recommend to a Friend

Just the right tool

5.0

Compact and light weight. Quick and Easy to set up and use. Perfect for someone who needs to take readings but does not need a certified instrament. Small enough to keep on the truck so you have it when you need it.

Verified Purchase Greg P on Feb 28, 2018

interesting readings

2.0

When comparing measurements to my other hood I would have to traverse inside the duct for every measurement I want to make with this hood and create a correction factor to correct the hood reading in order to get an accurate number with this hood. At that point, I might as well just use the traverse reading and not bother using the hood.

Anonymous on Jan 23, 2018

Recommend to a Friend

Easy is the right name

5.0

Works just like the description says. no surprises. I used it with my ABM200 very simple. easier than the ABM200 alone. It is a bit bulky but much less than a conventional hood.The supports for the 2x2 extension don't fit in the carry bag real well. Took along time to ship but once Tequipment received it form the manufacture it can very quickly.

John Kropp HVAC Contractor on Oct 27, 2017
