- High definition 3.5”TFT-LCD color display, 480(RGB)x320 (CCTV only)
- Built-in LED flashlight
- User-defined shortcut keys（F1 and F2）
- Support for both NTSC/PAL video formats
- 10x zoom feature to magnify the video image (CCTV only)
- Record and playback CCTV snapshots and videos using a micro SD card (removable).
- IP address scan to determine an IP camera’s IP address
- PING an IP address to verify the connectivity of IP cameras or network devices
- POE measurement to test the PoE switch’s voltage to the IP camera
- Port Flicker blinks a switch port’s link LED. Perfect for tracing cable locations.
- Cable testing jack to test the pairs of a CAT5/6 cable.
- Link monitor to display IP address usage on the network.
- PTZ address scan to determine the address of a CCTV camera.
- RS232/RS485/RS422 communication link to drive the PTZ unit.
- PTZ testing for cameras so equipped. Driver supports more than thirty protocols.
- DC12V 1000ma power output to temporarily power CCTV camera during test.
- Audio input jack to test audio signals
- Audio input jack to test audio signals
OVERVIEW
The
Camera Wizard II IP/CCTV tester is designed for the installation and maintenance of IP and CCTV
cameras and devices. CCTV tests: Video display, PTZ control, DC12V output power, audio test, color
generator, RS485 data decoding, picture and video recording, and image magnification. IP camera
tests: IP address scanning, PING testing, Link monitor, POE measurement, Port flicker and CAT5/6
cable testing. Note: The color LCD screen will only display CCTV images (not IP images).

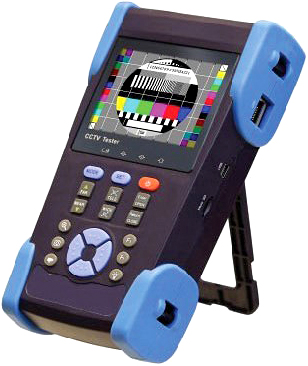

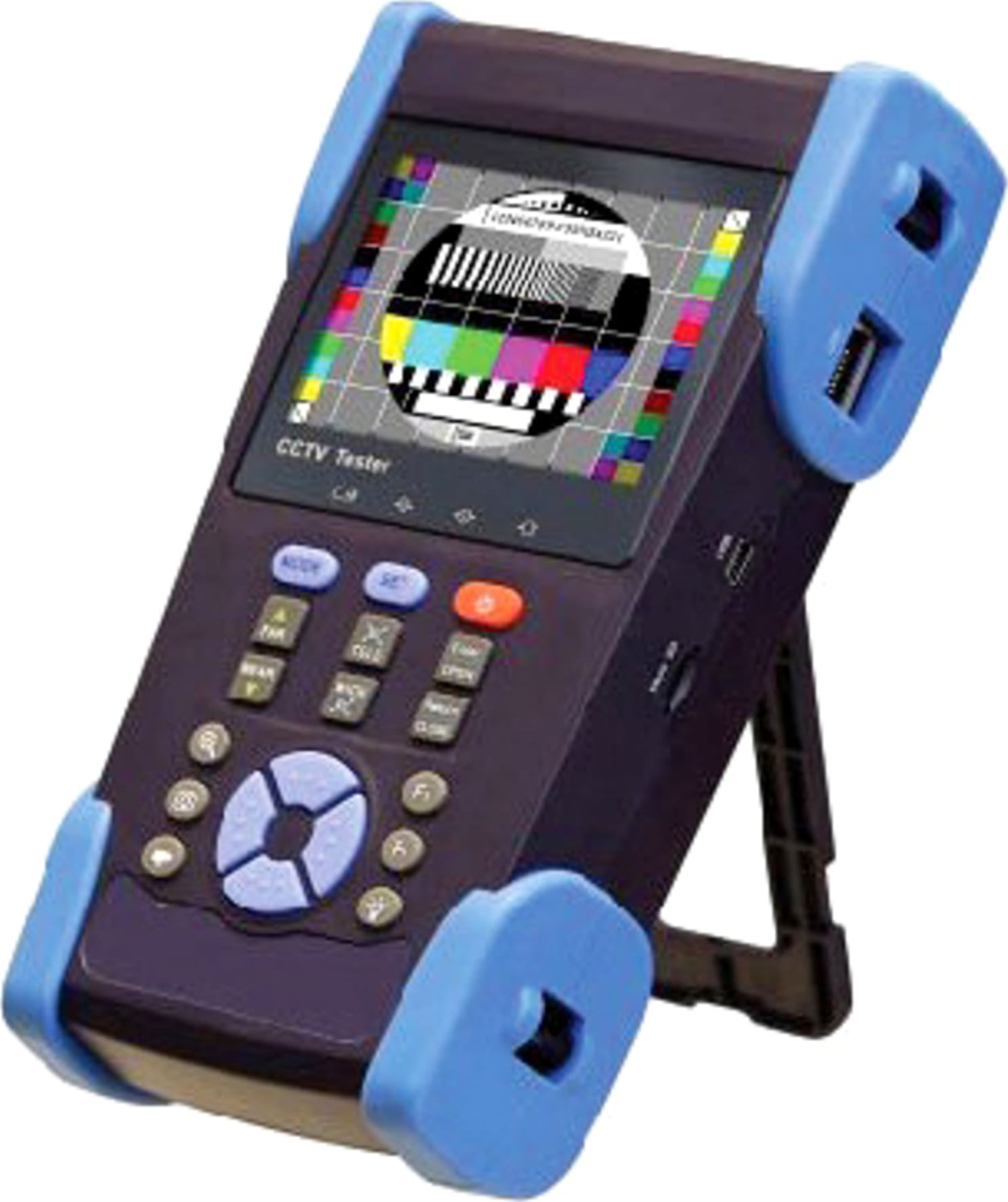

The Byte Brothers VTX455 Camera Wizard II is a handheld CCTV and IP Camera Tester capable of discovering and testing IP addresses and Video signal levels. The IP functions of the Byte brothers VTX455 cover a wide range of tests, such as Port flickering, Ping tests, POE Voltage, CAT5/6 cable testing, and POE Splitting.
Additionally, the Bytebrothers VTX-455 is able to access and control numerous camera types, and offers input and data logging. The Audio input and built in speaker allow the user to test audio functions on the spots, and the SD card slot makes it easy to record movies and images from a CCTV.

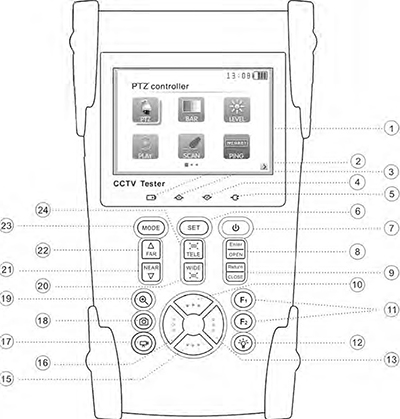

FRONT PANEL
![Byte_BrothersVTX455_Front_Panel_tn]()
| IP/CCTCV TESTER USER'S MANUAL |
| 1 |
OSD menu |
| 2 |
The charge indicator: it lights red while the battery is being charge. as the charging is complete, the indicator turns off automatically |
| 3 |
The data-transmission indicator: it lights red while the data is being trasmitted |
| 4 |
The data-reception indicator: it lights red while the data is being received |
| 5 |
The power indicator: it lights green while the tester is powered on |
| 6 |
Set key, press it to enter sub-menu to set the parameters of functions |
| 7 |
Press more than 2 seconds, turn on or off the device, short press to turn on or off the menu display |
| 8 |
confirm/Open confirm the setting of parameters; Open or enlarge the aperture |
| 9 |
Return/close: return or cancel while setting parameters of the menu, close or decrease the aperture |
| 10 |
Upward: select the item which will be set or add the value of the parameter. tilt the PTZ upward |
| 11 |
User-defined key (User setting functions, the default is "PTZ controller") |
| 12 |
Led lamp |
| 13 |
Rightward, enter the sub-menu or select the parameter whose value will be changed.
add the value of the parameter. pan the PTZ right |
| 14 |
Number not used |
| 15 |
Downward: select the item which will be set or reduce the value of the parameter.
tilt the PTZ downward |
| 16 |
Leftward: enter the sub-menu or select the parameter whose value will be changed.
reduce the value of the parameter. pan the PTZ left |
| 17 |
Record CCTCV videos |
| 18 |
Snapshot (capture CCTCV video image) |
| 19 |
10xzoom CCTCV images on screen and video out |
| 20 |
WIDE: zoon in the image |
