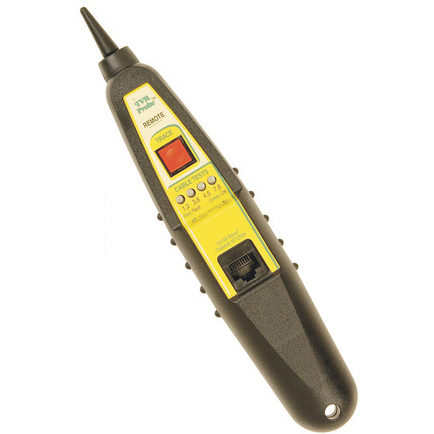

Replacement Probe for TVR10/100/1000
CABLE TESTING
The following tests are performed by the TVR10/100/1000 Main Unit and
Remote Unit.
- Locates miswired cables.
- Locates missing cables.
- Tests installed cables (pairs wired and type).
- Tests patch cables (pairs wired and type).
- Remote Probe helps locate and trace inactive cables.
- Remote Probe traces active cables connected to hubs/switches and PC without interfering with LAN performance.
The TVR10/100/1000 answers the most common questions that occur
during the repair and install of 10, 100, 1000 Base-T LANs.
LAN devices questions answered…
- Is my hub/switch or PC ON and transmitting?
- Do I require a straight thru or crossover patch cable?
- Is my LAN speed 10, 100 or 1000MB/s and is it half or full duplex?
- Is the hub/switch and PC link negotiating a slower speed and duplex than expected?
- Is PoE available? Is it endspan or midspan?
LAN cabling questions answered…
- Is a hub or PC connected to my cable?
- Does my hub or PC require 2 or 4 pair cables?
- What pairs are terminated in my cable?
- Where is my cable in the wiring closet?
- What hub port is my PC using?
- Is my cabling straight thru or crossover?
- Does my cable have inverted pair or other faults?
The TVR10/100/1000 is comprised of two units:
The “Main unit” and the “
Remote Probe.” The Main unit performs the bulk of the tests such as determining the LAN device type (is it a hub/switch or PC?), the LAN speed and duplex (10, 100, 1000 MB/s, half or full duplex) and whether PoE (Power over Ethernet) is present without the need of the Remote Probe.
The Remote Probe adds the ability to trace cable locations (by audibly tracing tones cables with all four pairs to insure compatibility with all three types of Base-T LANs.
The quick LAN tester that should be in every toolbox! Unique for its ease-of-use, and INLINE capability, the TVR10/100/1000 performs 4 critical tests.
1. Advertised Speed and Power Over Ethernet
The lights quickly tell you if the device is a hub/switch or a PC. It reads the link pulse to determine if the device is capable of 10, 100 and/or 1000MB/s communication (this is termed the advertised speed). It displays whether it’s half or full duplex. Plus, it detects PoE (Power over Ethernet). Both endspan and midspan.
2. Negotiated Speed and Power Over Ethernet
Go INLINE between two LAN devices and the TVR10/100/1000 will check the speed and duplex of the link (this is termed negotiated speed). The ability to test negotiated speed in this price range is unheard of! Plus, it detects PoE (Power over Ethernet). Both endspan and midspan.
3. Test Cables
The TVR10/100/1000 is also a pairs tester... telling you which pairs are wired and whether they are straight through or crossover.
4. Trace Cables
Use the TVR10/100/1000 as a tone generator. The Main unit generates the tone for use by the Remote probe. Test and trace coax cables with the two RJ45/coax adapters.
