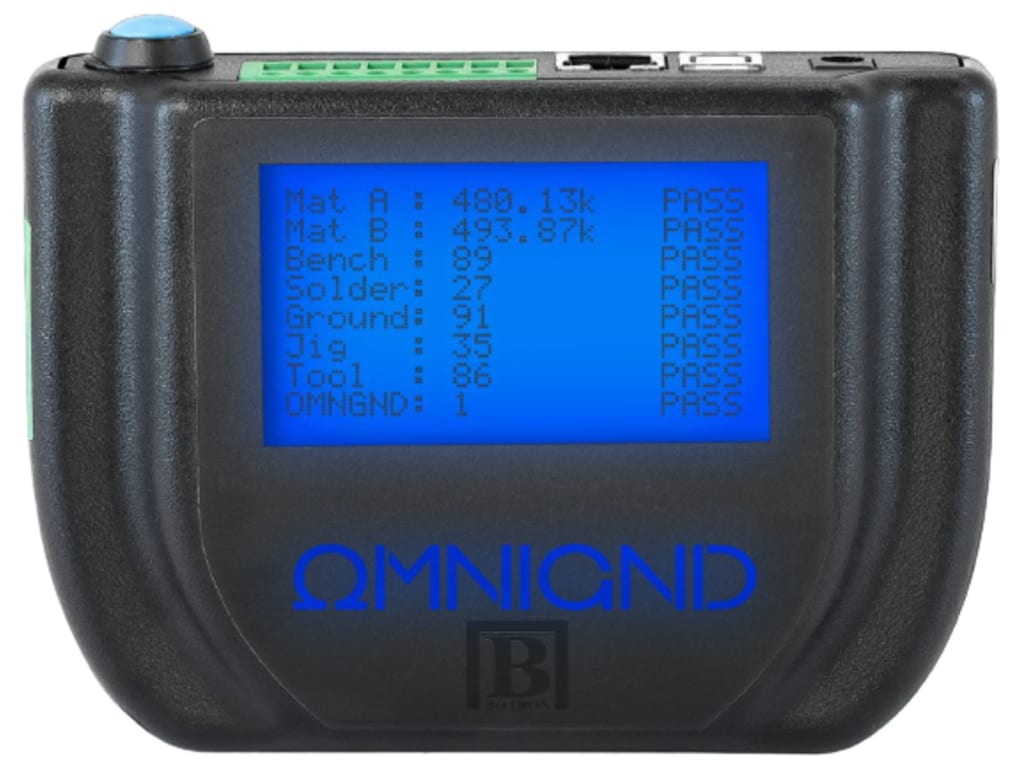

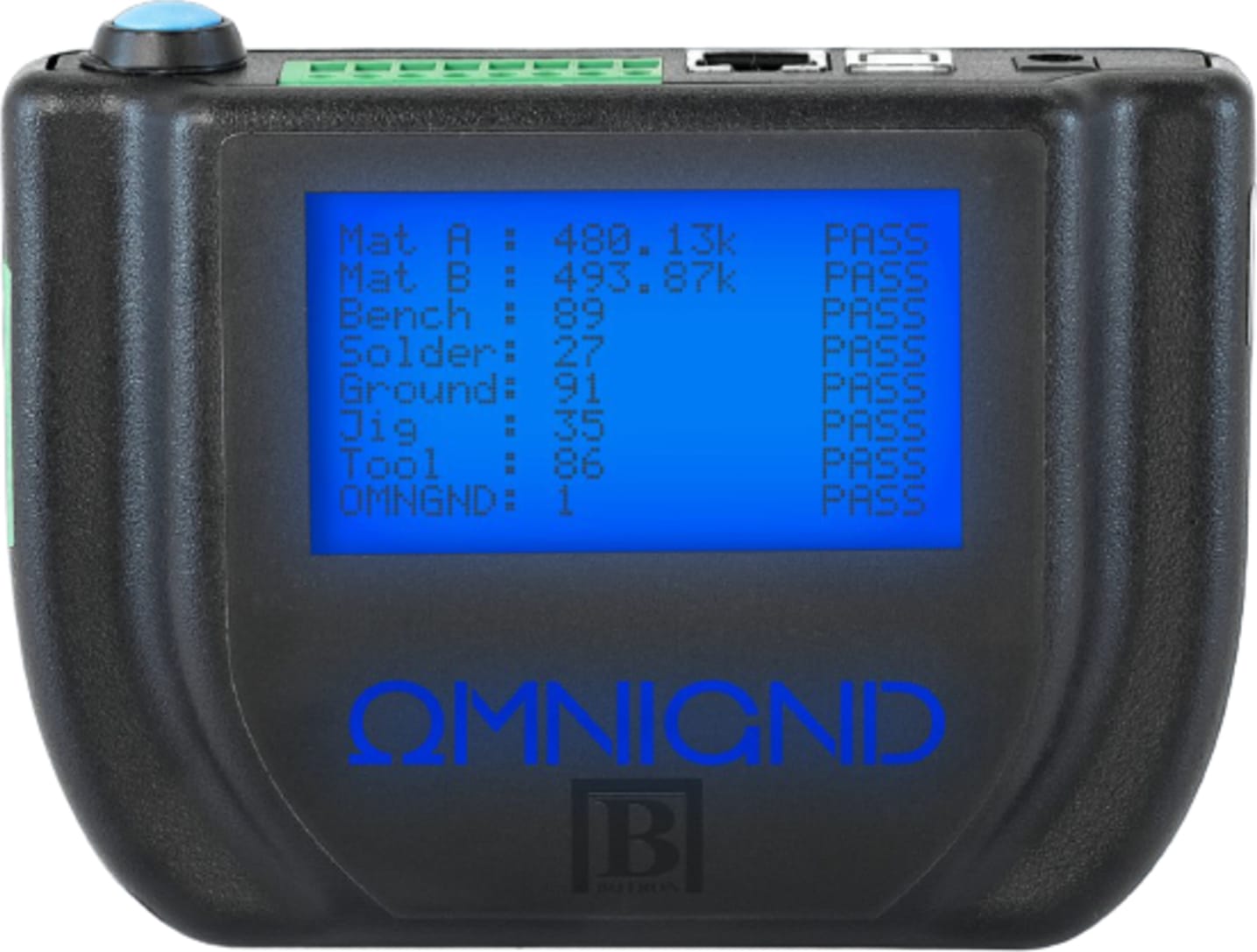

• Multi ground continuous monitor
• Full range adjustability from 0 ohms to 35 Mohms

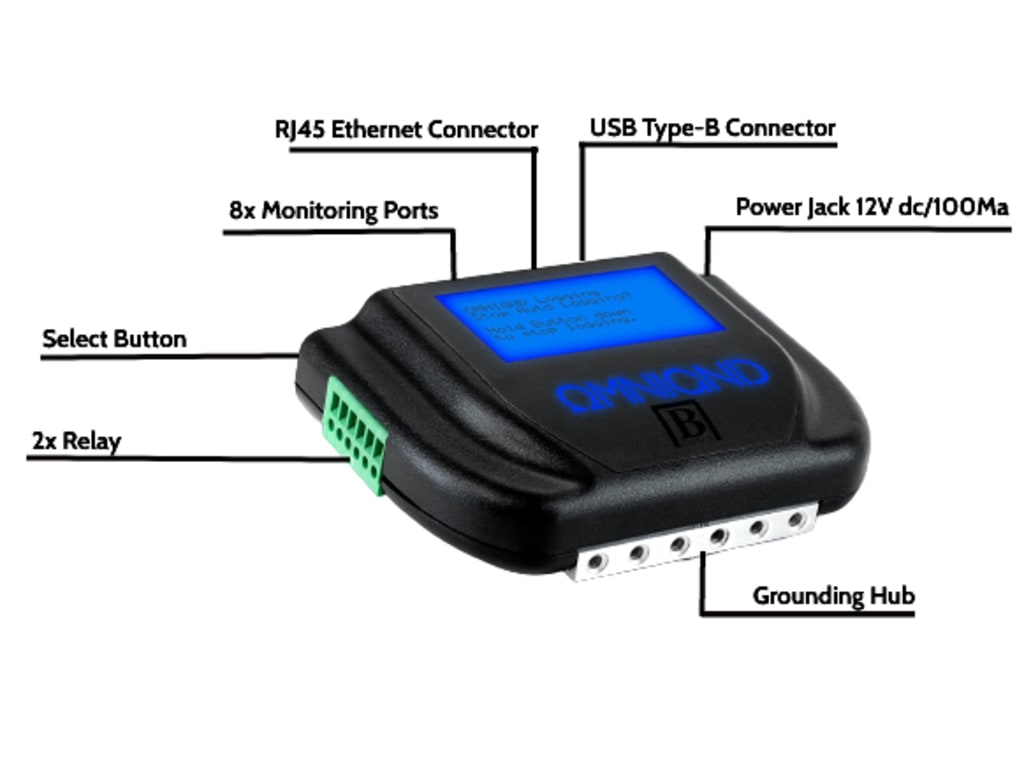

• Multiple 4mm banana type inputs and 5 screw terminals
• Can accept over 20 incoming grounds
• Browser-based OmniManager software makes accessing and viewing data smarter and simpler

The OMNIGND is unlike any other continuous monitor before, it stands alone as the most versatile of tools within the ESD Protected Area. Combining automation and intelligence into a single package that can flat out monitor more equipment, in more places, with more accuracy and more scalability.

The OMNIGND allows you to move from prescriptive measurements to continuously measured results, delivering information in real-time to your auditors and data science teams.

Monitor everything

Need to monitor mains facility grounds? How about floor mats, or benches, surface mount pick-and-place equipment, mechanical arms, or just simply your standard grounding paths? The OMNIGND is a multi-ground continuous monitor with full-range adjustability from 0 Ohms to 35 M Ohms that can measure not just low and high resistance closed circuits, but monitor dirty and noisy grounds too.

It’s not just monitoring your critical applications, It also provides a continuously monitored common point ground. With multiple 4mm banana-type inputs and 5 screw terminals, the OMNIGND can accept over 20 incoming grounds. This gives you the flexibility to collect data on your most critical applications, and monitor the point of ground for your less critical equipment, such as ESD table mats, benches, and ESD floor mats.

Your EPA is always changing, evolving, and adapting, and the devices used to monitor the compliance therein should scale with it. VTR Technology gives you total control over nearly all functional hardware features. This includes, per port; resistance limits both high and low, naming, relay triggers, email notification events, and much, much more.

OMNIGND software interface is a sleek, browser-based operating system running on every OMNIGND, which makes interacting with your OMNIGND a breeze. Featuring an intuitive UI, OmniManager makes accessing and viewing your data smarter and simpler.

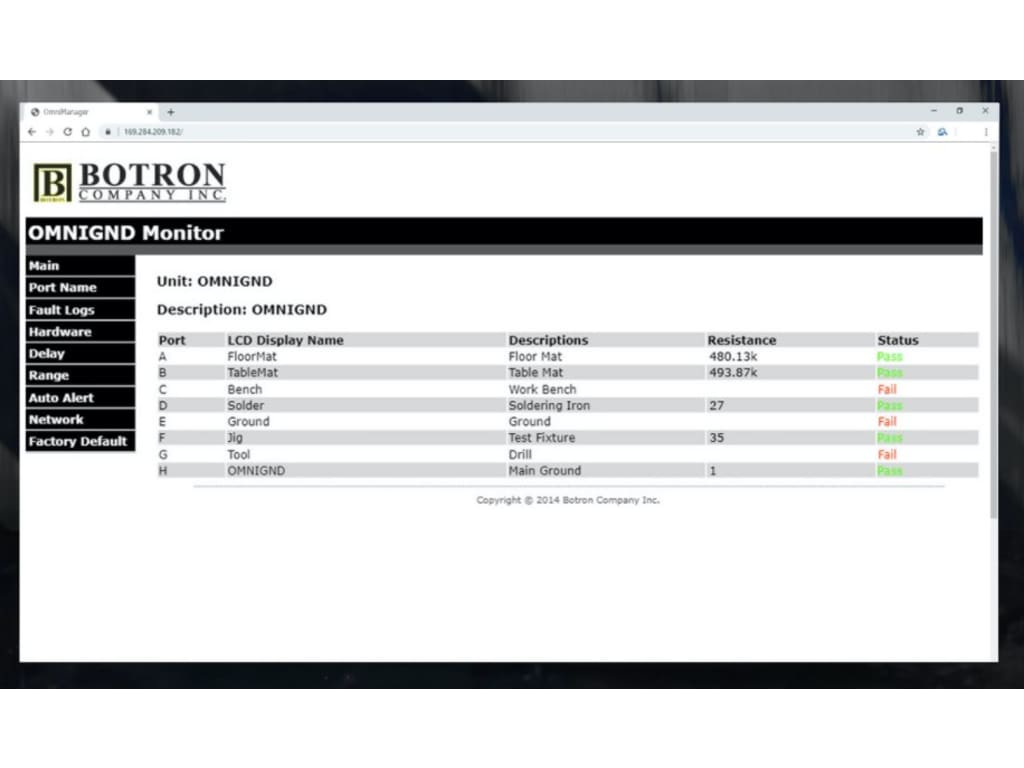

The Live View display page is a simple dashboard delivering to you live streaming data on each monitored device. Accessible anywhere on your network, from your mobile device to desktop. No special software is needed the ELITE WebUI is baked right into OMNIGND.

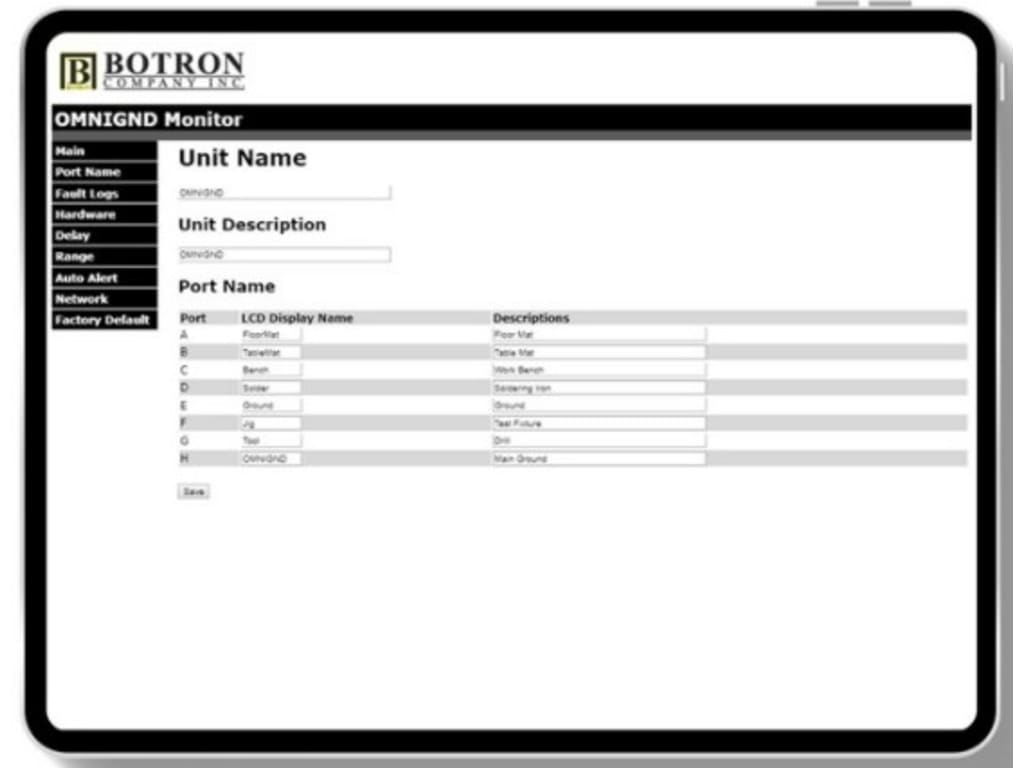

Being such a scalable, multi-dimensional tool that gives you the freedom to monitor anything from floor mats, benches, even test fixtures, and SMT machines, you need to be able to quickly identify exactly what’s being monitored. Each monitored port on the OMNIGND is user-defined, meaning you can personalize not only the name and description for the main device itself but each monitored port.

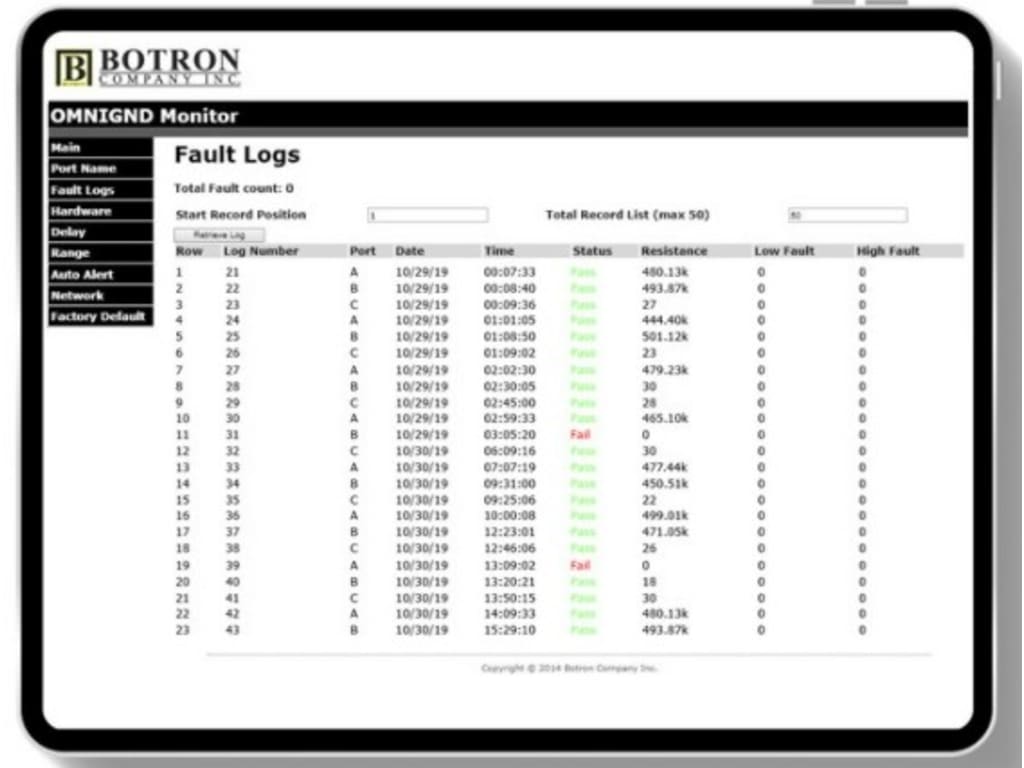

ESD events are invisible and they happen in milliseconds. Don’t just say you’re doing the right things, or assume you’ve taken every precaution to show that you are! Every event you define is captured and stored conveniently for you to access at any time right inside the OMNIManager. A lot of money and time is spent setting up your production lines, thereafter auditing them. The OMNIGND doesn’t just protect your resource investment, it removes your costly auditing tasks empowering you to continuously audit your lines.
