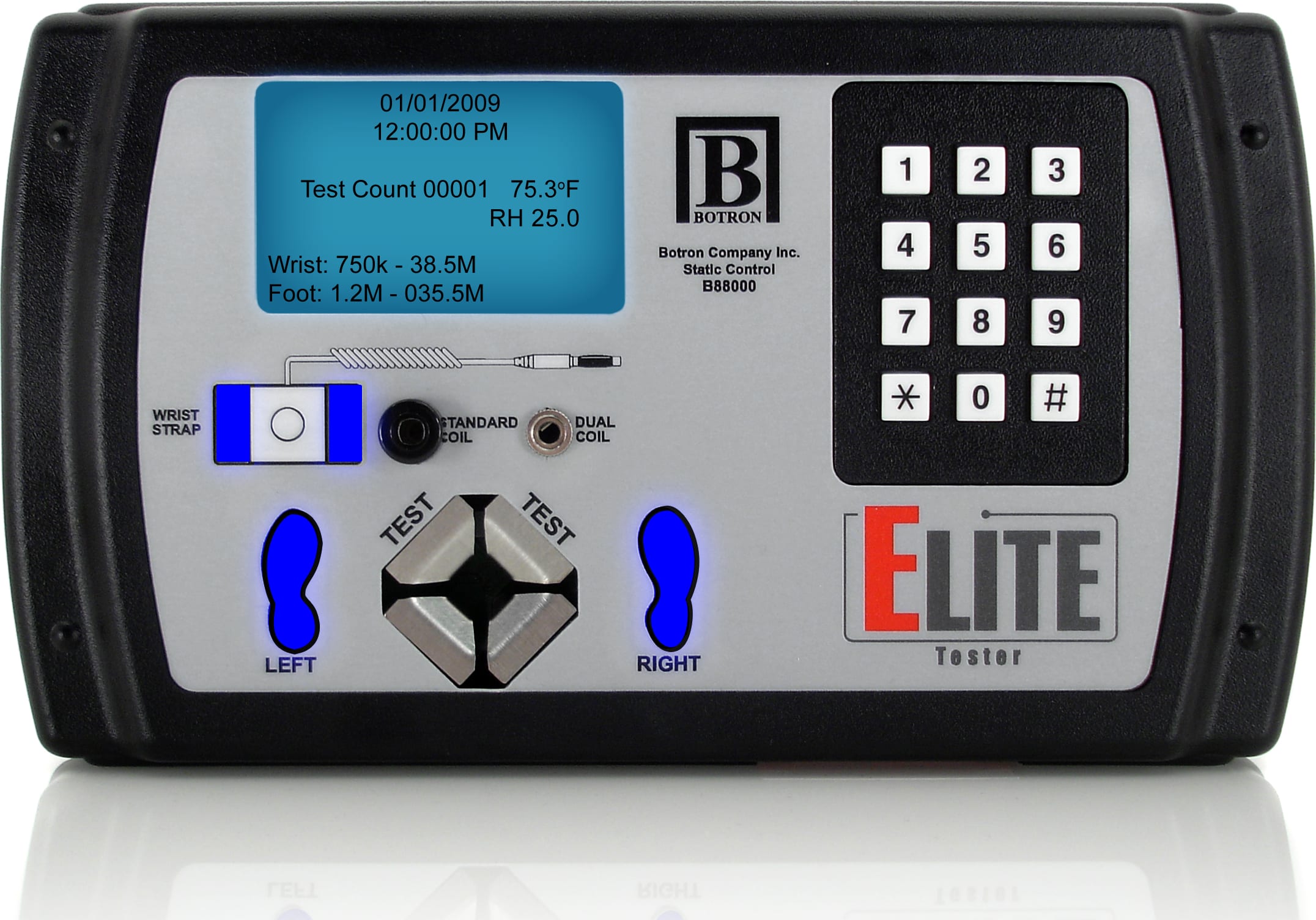

ELITE Complete HID Tester
Take full control of your facility with the ELITE test system. Customize each user’s test requirements (store over 100k users), adjusts test parameters, and adjustable failure threshold (Failure Prevention Mode). The ELITE, unlike other data logging systems, is not computer dependent and will not lose data if the computer or power goes down.
ELITE Complete Features
- All test results stored on ELITE Test System - store 48,000 user profiles; 100,000 test results.
- ELITE WebUI - organize and access real-time data from any device in the network
- Data Capture - username/ID, test requirements, overall result, individual results, measured resistance, time, date, humidity, unit serial number
- HID and Barcode reading options
- Test range - VTR Technology - user adjustable parameters (tighter or looser ESDA standards)
- Preventative Failure Mode - adjustable for each test, yellow indicator
- Calibration - simple method built into the hardware, digitally stored calibration certificate; display device calibration on-screen
- ESD inputs - dual/single wrist and smock, RJ45 footplate
- Access Control - barcode reader, security options, test requirements, etc.
- Alerts - pass, fail, preventative; multi-color LED indicators
- Relays - connect gated terminals, doors, light towers
- Networking - ELITE WebUI; MAC address, IP address, Gateway, Hostname, Subnet, DHCP, more
- Display - built-in 3-inch backlit LCD, 128x64, Calibration (test range per device), RH, time/date
- Electrical: 100-240 V AC; 50-60 Hz; 12 V at 1.25amp output
- Auto Reporting - filter/organize by any data point, receive/deliver the exact info needed
- Test Data - host all historical test records, viewable and sortable
