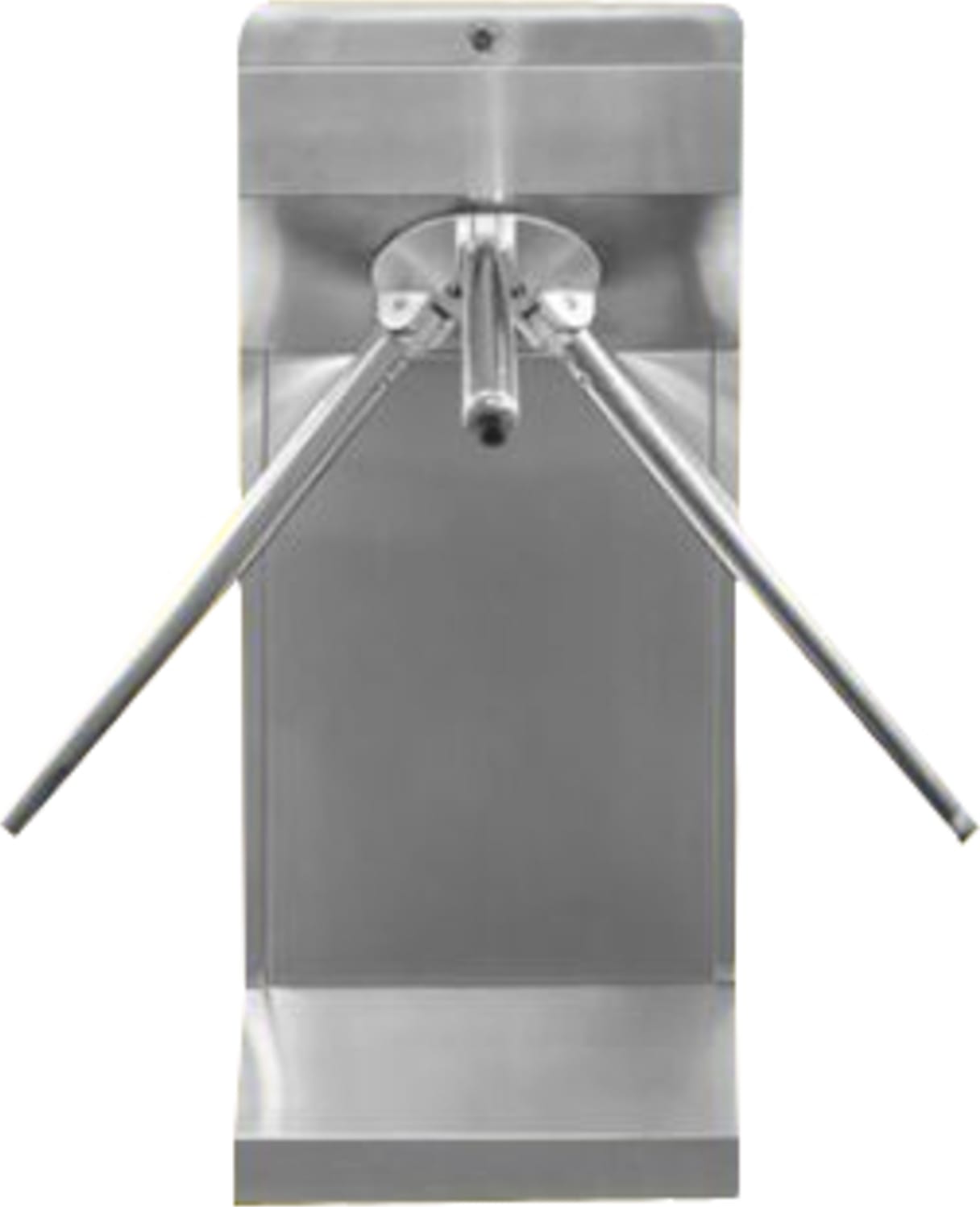

ELITE Complete Barcode Tester with EasyPass Compact Turnstile and Footplate
The Botron ELITE Access Control turnstile system is a very manageable way to ease and organize employee traffic in and out of ESD sensitive environments. The ELITE Access Control system allows complete control over who enters and what resistance and tests are required for each employee. The system is bi-directional flow capable. Keep personnel from following behind one another and entering the ESD sensitive areas unverified with a locking arm that requires every user to pass before entering.
Traffic Fault Detection (lane jumping/reverse entry) triggers audible and visual alarms, prohibiting unauthorized access and keeping the lane closed until the traffic fault is resolved.
The Botron ELITE Access Control turnstile system includes the ELITE Complete Tester along with all the features for trusted and verified compliance control.
Take full control of your facility with the ELITE test system. Customize each users’ test requirements (store over 100k users), adjusts test parameters, adjustable failure threshold (Failure Prevention Mode). The ELITE, unlike other data logging systems, is not computer dependent and will not lose data if the computer or power goes down.
ELITE Complete Features
- All test results stored on ELITE Test System - store 48,000 user profiles; 100,000 test results
- ELITE WebUI - organize and access real-time data from any device in network
- Data Capture - username/ID, test requirements, overall result, individual results, measured resistance, time, date, humidity, unit serial number
- HID and Barcode reading options
- Test range - VTR Technology - user adjustable parameters (tighter or looser ESDA standards)
- Preventative Failure Mode - adjustable for each test, yellow indicator
- Calibration - simple method built into the hardware, digitally stored calibration certificate; display device calibration on-screen
- ESD inputs - dual/single wrist and smock, RJ45 footplate
- Access Control - barcode reader, security options, test requirements, etc.
- Alerts - pass, fail, preventative; multi-color LED indicators
- Relays - connect gated terminals, doors, light towers
- Networking - ELITE WebUI; MAC address, IP address, Gateway, Host name, Subnet, DHCP, more
- Display - built-in 3-inch backlit LCD, 128x64, Calibration (test range per device), RH, time/date
- Electrical: 100-240 V AC; 50-60 Hz; 12 V at 1.25amp output
- Auto Reporting - filter/organize by any data point, receive/deliver the exact info needed
- Test Data - host all historical test records, viewable, and sortable
