• Catalog number E0341A
• Multiple tip extraction system for all electronics hand soldering applications
• Suitable for up to 15 operators / extraction points
• Powder-coated mild steel

Multiple tip extraction system for all electronics hand soldering applications.

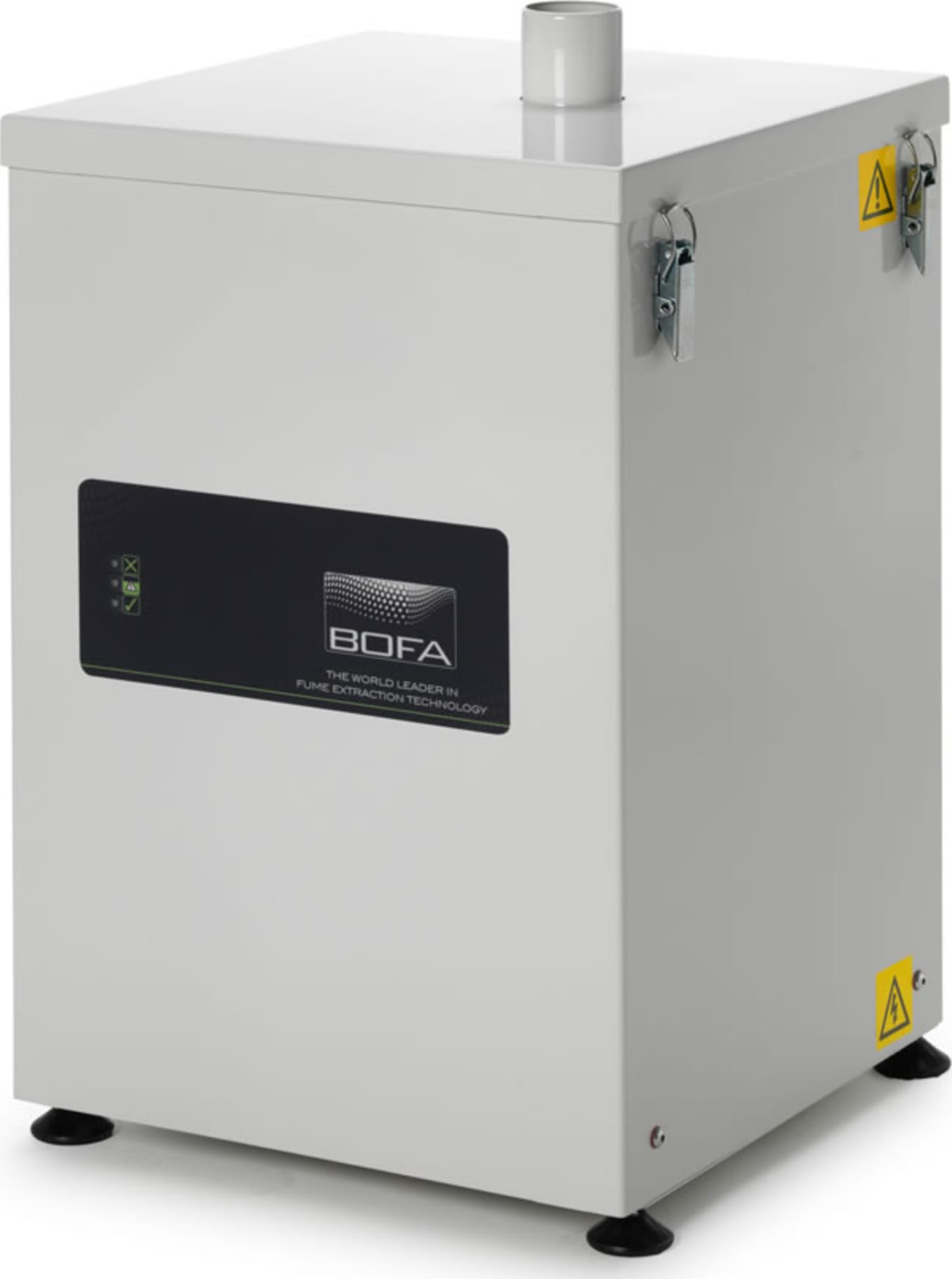

The T 15 high vacuum unit is designed to extract and filter fumes and debris through small bore hoses and attachments. Ideally suited for soldering iron tip extraction, vac pens, and any application requiring close proximity, micro extraction. Suitable for up to 15 operators / extraction points.

BOFA uses mini pleat design HEPA (high efficiency particulate air) filters which are tested and certified to a minimum efficiency of 99.997% down to 0.3 microns and 95% as small as 0.1 micron. They incorporate a series of webbing between the pleated media. This feature not only guarantees even spacing for full filter coverage between each pleat, but also alleviates the possibility of airflow vibration or collapse.

ACF assures safe capture and removal of hazardous fumes. Contaminated air must remain in contact with the carbon bed for a period of time sufficient to ensure that no contaminants or odors are emitted (‘dwell time’). Our filters have been developed to capture all contaminants and odors, eliminating the risk of bypass and/or tunneling.
