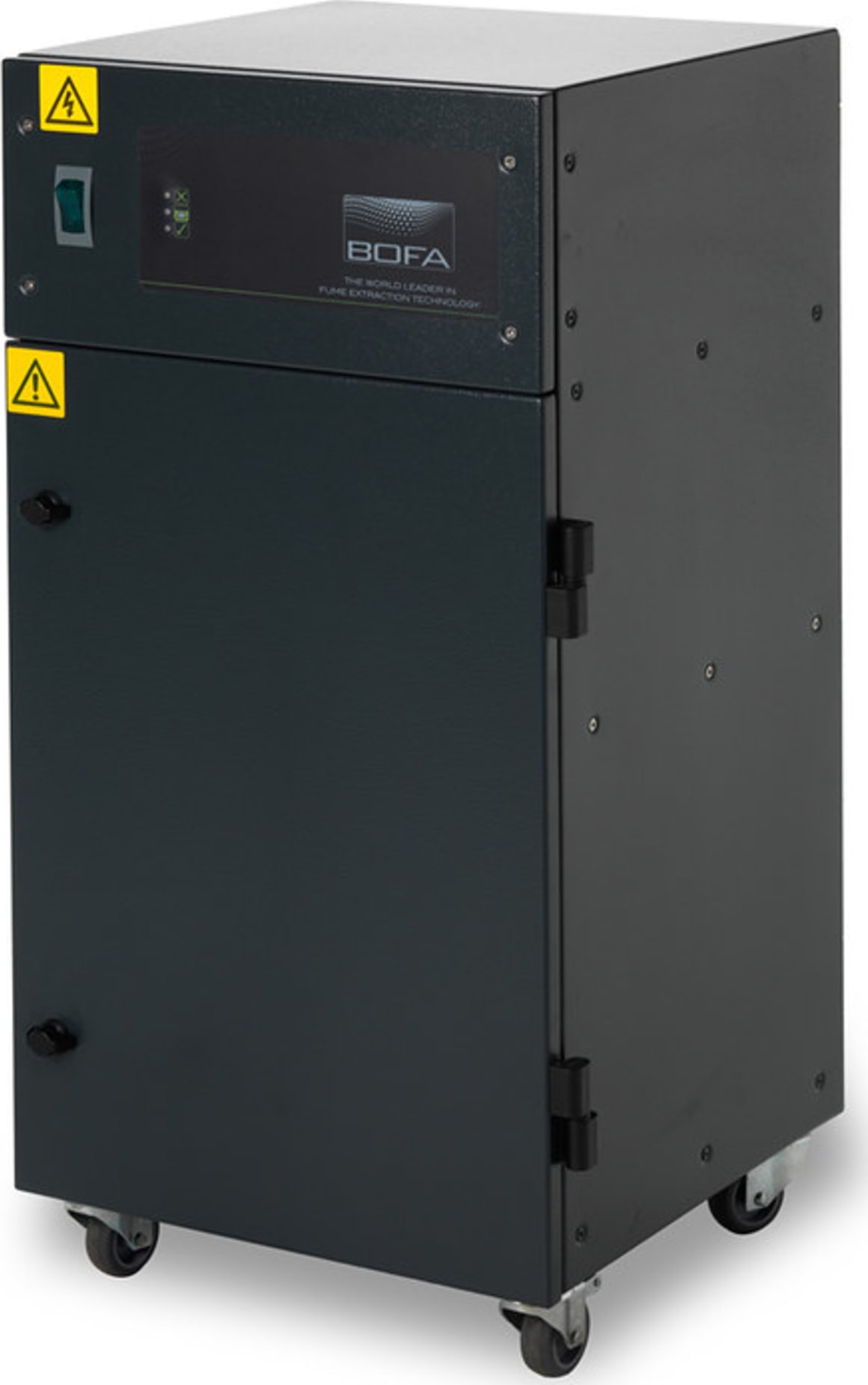

AD Nano
The BOFA AD Nano is a compact fume extraction system designed for small scale industrial environments and light laser coding applications. The reverse flow air and DeepPleat DUO filter technology enhances filter performance and ensures long filter life.
Reverse flow air technology
The reverse flow air technology feature causes a fall in velocity and air direction change. Larger particulate falls out of the air stream into the filters drop out chamber. With less particulate entering the filter media the filter life is significantly increased. Contaminated air entering the drop out chamber is pulled vertically through the filters.
Patented DeepPleat DUO Filters
The BOFA DeepPleat DUO pre-filter incorporates a massive drop-out chamber within the filter. Above this chamber but still within the housing there is a sealed deep pleat layer of F8 media giving a surface area in excess of 6/12/30 sq meters. Thanks to a specially moulded grommet style gasket situated within the drop out chamber the DeepPleat DUO is designed for easy and safer installation and replacement, which is particularly important as often harmful contaminants are captured within the filter.
HEPA Filter and Advanced Carbon Filter (ACF)
HEPA filter filters 99.997% of particles at 0.3 microns in size. ACF helps enable safer filtering of hazardous fumes. Contaminated air must remain in contact with the carbon bed for a period of time sufficient to ensure that no contaminants or odors are emitted (‘dwell time’). Bofa design considers the balance between airflow rates and the type, depth and surface area of the carbon used to ensure suitability for the contaminants associated with the application and to ensure appropriate dwell times are achieved.
