A BINDER MKF series environmental simulation chamber is ideally suited for any cold and heat testing based on current temperature and climate testing methods according to DIN and IEC standards. The comprehensive standard equipment for this environmental simulation chamber ensures ease of operation.

Environmental simulation chambers for rapid temperature changes with humidity control

BINDER environmental simulation chambers in the MKF series are ideally suited for all testing based on current temperature and climate testing standards. These dynamic climate chambers operate within a temperature range of between -40 °C and 180 °C, and a humidity range of between 10% RH and 98% RH. Homogeneous temperature distribution is guaranteed across the entire usable space thanks to the patented APT.line preheating chamber technology. Even when chambers are fully loaded, you can rely on the temperature conditions being homogeneous, thereby ensuring identical test conditions.

BINDER MKF series environmental simulation chambers are the number one choice for dynamic climate profiles. The required temperatures and humidity values can be reached quickly and accurately maintained during the test phase, with precise measurement results guaranteed.

BINDER environmental simulation chambers with extensive equipment

The equipment features of the MKF environmental simulation chambers from BINDER include a built-in water tank, programmable condensation protection for samples, and a heated viewing window with LED interior lighting. Humidity is regulated using a capacitive humidity sensor and steam humidification. The dynamic climate chambers are really easy to use thanks to the controller with interval programming, while the troubleshooting system with visual and acoustic alarms takes care of safety. As the interior is fully coated with stainless steel, the environmental simulation chambers can be cleaned without any hassle, reducing the risk of contamination to a minimum. The climate chambers have four casters, making them really flexible, and with two casters with locking brakes, stability and secure positioning are no problem at the use location.

BINDER environmental simulation chambers in the MKF series are the number one choice for rapid temperature changes and humidity control. Impressing with their performance, precision, and safety, these units also boast ease of use and a broad, flexible scope of application.

For accessory parts compatibility please click here: Accessory Compatibility Chart

• Homogeneous climate conditions thanks to APT.line technology
• Automatic water and wastewater management
• Pressure humidification with fast response times
• Comprehensive programming and data acquisition
• Large, heated viewing window

• Temperature range: -40 °C to +180 °C
• Humidity range: 10% to 98% RH
• Humidity regulation with capacitive humidity sensor and steam humidification
• APT.line preheating chamber technology
• Intuitive touchscreen controller with time-segment and real-time programming
• CFC-free refrigerant R-452A
• Integrated water-storage tank, 20 L
• 1 stainless steel rack
• Access port with silicone plug (models 56, 115, 240, 400), 50 mm, left
• 2 access ports with silicone plugs (models 720, 1020), 80 mm, left and right
• 4 zero-voltage relay contacts
• Heated viewing window with LED interior lighting

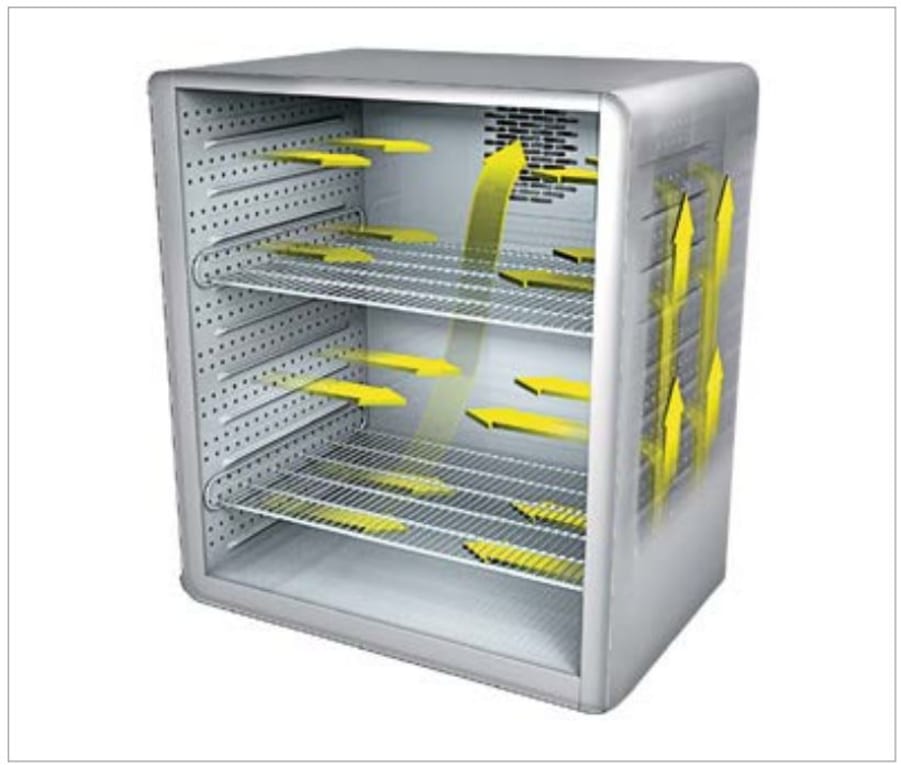

BINDER APT.line preheating chamber technology ensures long-term operational stability even under full load.

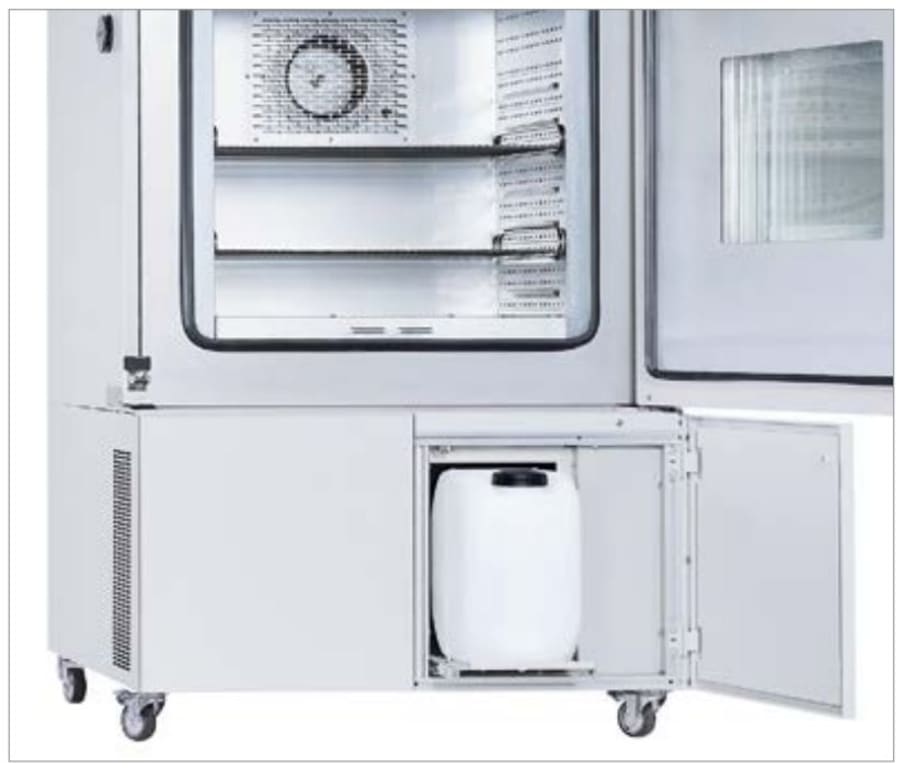

The flexible water supply is easy to handle and can be operated independently of the water supply and water quality.

With our high level of standard equipment, such as the heated viewing window with LED illumination and a large access area for easy assembly a convenient work environment can be established.

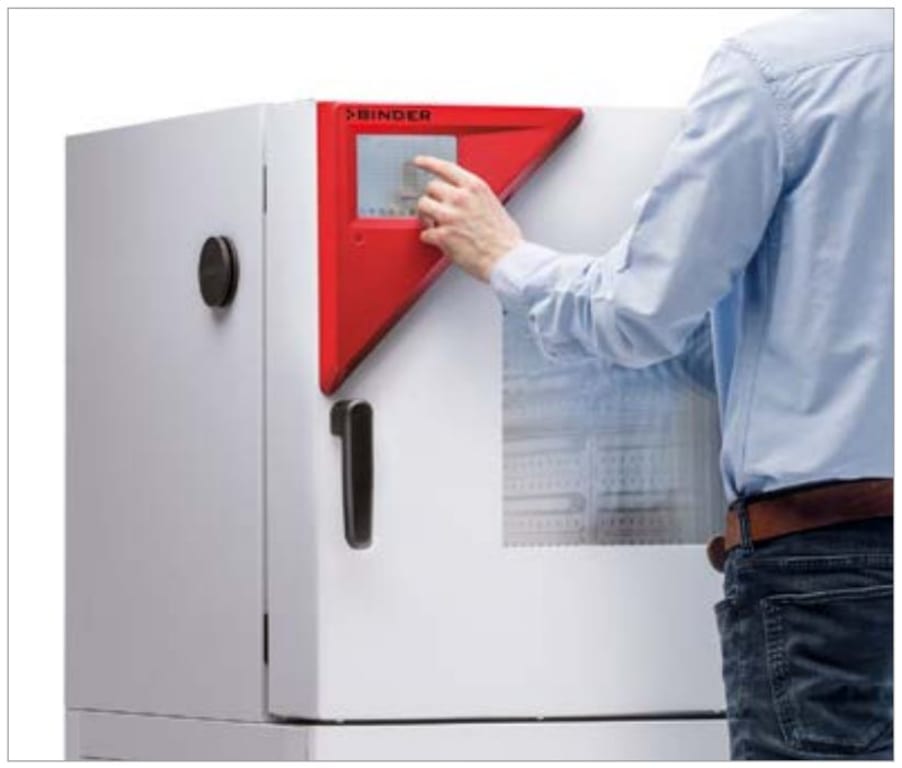

With the program controller featuring a color display and Multi Management Software APT-COM for remote programming through a PC.
