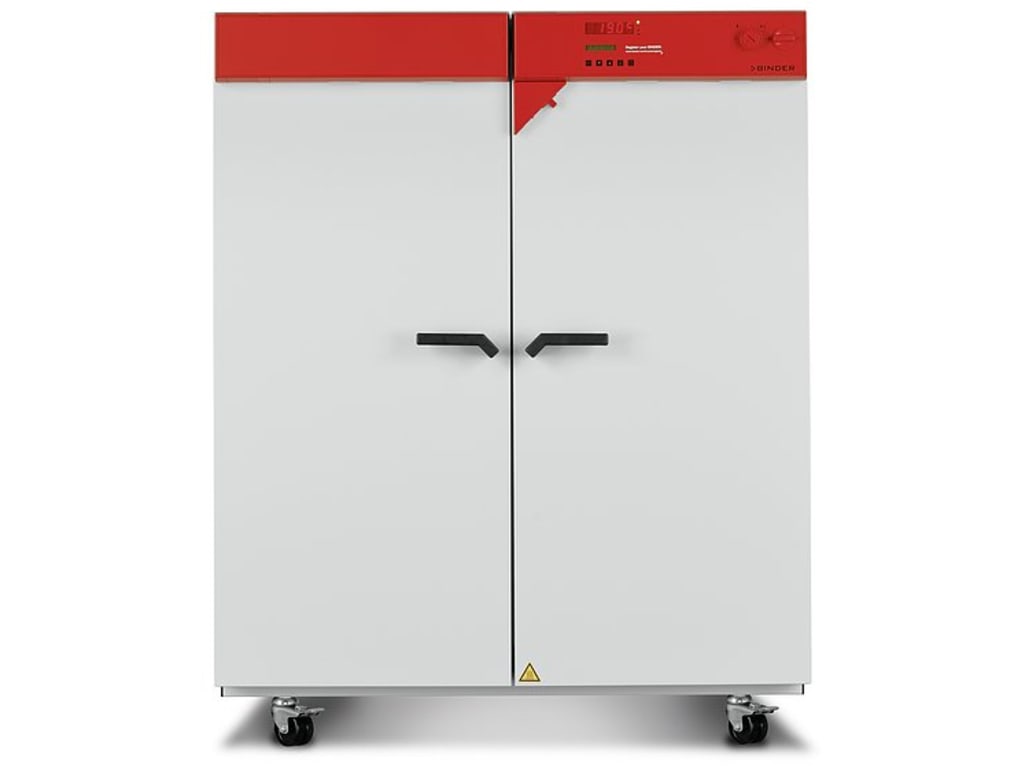

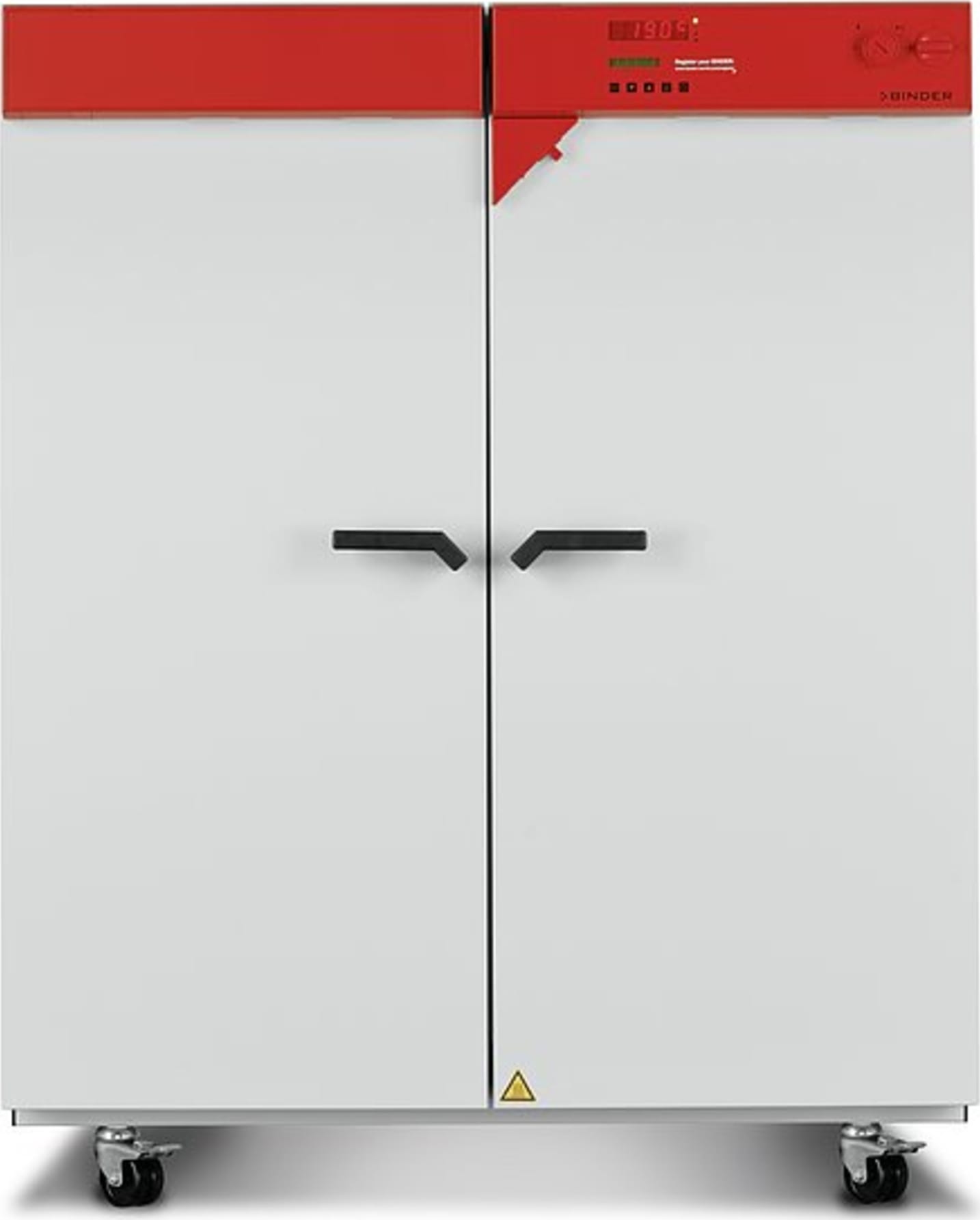

Binder World FP720UL-208V - Drying/Heating Chamber with Forced Convection and Program Functions, 720 L, 208 V, 3 ph, 60 Hz

Name: Binder World FP720UL-208V - Drying/Heating Chamber with Forced Convection and Program Functions, 720 L, 208 V, 3 ph, 60 Hz
Brand: Binder World
SKU: BinderFP720UL-208V
Price: 9578.26 USD
Availability: InStock

0 reviews | Catalog: 9010-0268 | Model: Binder World FP720UL-208V

Compare

Standard, Series FP - Drying/heating chambers with forced convection and program functions, 720 L, 208 V 3 ph 60 Hz

Cannot Ship Air

Interior volume: 400 L (14.1 cubic feet)
Voltage: 208 V 3 ph 60 Hz
Temperature range: room temperature plus 5 °C to 300 °C
APT.line preheating chamber technology
Adjustable fan speed
Adjustable exhaust air flap
Controller with time-segment and real-time programming
2 chrome-plated racks
Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
Computer interface: RS 422

View Product Details

List Price: $11,015.00

Your Price: $9,578.26

In Stock:

View Payment Options

Request Quote

Non-Cancellable / Non-Returnable

Items in This Series



Product	Binder World FP720UL-208V Standard, Series FP - Drying/heating chambers with forced convec ...	Binder World FP053UL-120V Standard, Series FP - Drying/heating chambers with forced convec ...	Binder World FP115UL-120V Standard, Series FP - Drying/heating chambers with forced convec ...	Binder World FP240UL-208V Standard, Series FP - Drying/heating chambers with forced convec ...	Binder World FP720-400V Drying and Heating Chambers with Forced Convection and Program Fun ...
Price
In Stock
Controls (Life Science)	Digital	Digital	Digital	Digital	Digital
Capacity (Incubator/Oven/Chamber)	720 L	53 L	115 L	240 L	720 L
Max Temp (Incubator/Oven/Chamber)	300 C	300 C	300 C	300 C	300 C
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Binder World FP720UL-208V Accessories

Choose a Category

Accessories

for the Binder World FP720UL-208V

Binder World 1002-0016 pH-neutral detergent - concentrated, for gentle remove of...

Catalog: 1002-0016

(0)

In Stock!

Add to Cart

Binder World 6004-0002 Rack - chrome plated

Catalog: 6004-0002

(0)

In Stock!

Add to Cart

Binder World 6004-0007 Rack - stainless steel

Catalog: 6004-0007

(0)

In Stock!

Add to Cart

Binder World 6004-0029 Shelf, perforated - Stainless steel

Catalog: 6004-0029

(0)

In Stock!

Add to Cart

Binder World 8012-0531 Rack accessories - Rack accessories fasteners (1 set of 4) for...

Catalog: 8012-0531

(0)

In Stock!

Add to Cart

Binder World FP720UL-208V - Drying/Heating Chamber with Forced Convection and Program Functions, 720 L, 208 V, 3 ph, 60 Hz

Interior volume: 720 L (25.4 cubic feet)
Voltage: 208 V 3 ph 60 Hz
Temperature range: room temperature plus 5 °C to 300 °C
APT.line preheating chamber technology
Adjustable fan speed

A BINDER material test chamber with mechanical convection of the FP series provides reliably short drying times and particularly fast heating - even for chambers under full loads.

Advantages at a glance

Broad Range of Applications

Many different applications can take advantage of the wide temperature range from 5 °C above ambient temperature to 300 °C. The FP and M series also impress with their adjustable air change rates and large power reserves.

Homogeneous Temperature Conditions With Forced Distributions

Long-term operational stability even under full load from the APT.line pre-heating chamber technology.

Convenient Work Environment

BINDER interior concept: highlights rack with tilt protection, no permanent fixtures and stainless-steel inner chamber.

General Specifications
Option model	Standard
Order number	9010-0266
Performance Data Temperature
Heating-up time to 150 °C [min]	35
Recovery time after 30 seconds door open at 150 °C [min]	17
Temperature fluctuation at 150 °C [± K]	0.3
Temperature range +5 °C above ambient temperature to	300 °C
Temperature variation at 150 °C [± K]	2.5
Air change data
Air change (approx.) at 150 °C [x/h]	18
Electrical data
Nominal power [kW]	3.4
Phase (Nominal voltage)	3~
Power frequency [Hz]	60
Rated Voltage [V]	208
Unit fuse [A]	3 x 16
Housing dimensions not incl. fittings and connections
Depth net [in]	30.14
Height net [in]	40.4
Width net [in]	48.7
Internal Dimensions
Depth [in]	20.09
Height [in]	31.52
Width [in]	39.4
Measures
Interior volume [cu.ft.]	14.1
Load per rack [lbs]	77
Net weight of the unit (empty) [lbs]	320
Permitted load [lbs]	198
Wall clearance back [in]	6.3
Wall clearance sidewise [in]	3.94
Environment-specific data
Energy consumption at 150 °C [Wh/h]	1200
Fixtures
Number of shelves (std./max.)	2/10

Incubators
Controls (Life Science)	Digital
Capacity (Incubator/Oven/Chamber)	720 L
Max Temp (Incubator/Oven/Chamber)	300 C
Min Temp (Incubator/Oven/Chamber)	5 C
Test Equipment General Attributes
Unique Features	Standard, Series FP - Drying/heating chambers with forced convection and program functions, 720 L, 208 V 3 ph 60 Hz
Warranty	2 YEARS
Product Weight	428 LBS
Product Height	47.3 IN
Product Length	24.03 IN
Product Width	39.4 IN
Shipping Weight	522.00 LBS
