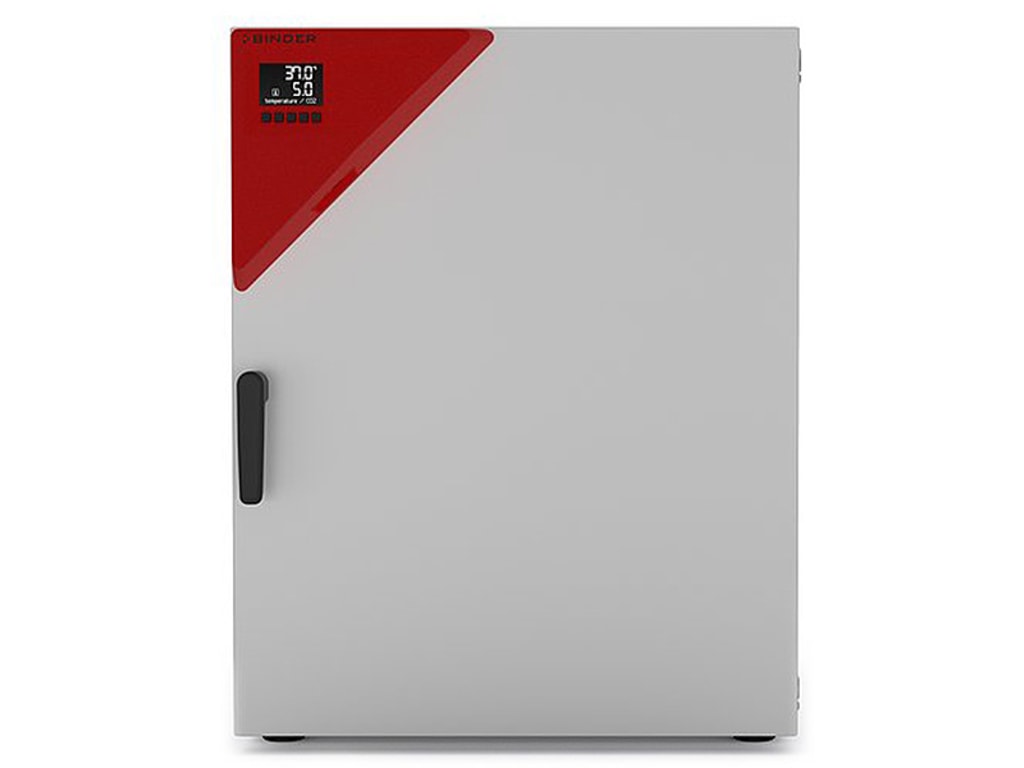

Binder World CBS170UL-120V - CO2 Incubator with Hot Air Sterilization, 170L, 120V 1Ph 50/60Hz

Name: Binder World CBS170UL-120V - CO2 Incubator with Hot Air Sterilization, 170L, 120V 1Ph 50/60Hz
Brand: Binder World
SKU: BinderCBS170UL-120V
Price: 6999.13 USD
Availability: InStock

0 reviews | Catalog: 9640-0002 | Model: Binder World CBS170UL-120V

Images (6) | Videos (4)

Compare

CB-S Solid.Line Series Incubator with Hot Air Sterilization: 100-120V, 50/60Hz, Single phase; 170 L Capacity; Standard

⛟ Freight Shipping Only

Internal volume: 170 Liters
Power: 120V, 1 ph, 50/60Hz
Dimensions: 28.17in x 34.28in x 26.79in
Temperature range: 6 °C above ambient temperature to 50 °C
Humidity range: 90 to 95% RH
CO₂ control range: 0 to 20 vol.% CO₂
Tried-and-tested anti-contamination concept with 180 °C hot air sterilization
Humidification system with condensation protection
CO₂ gas mixing jet with Venturi effect
CO₂ sensor with infrared technology

View Product Details

Items in This Series



Product	Binder World CBS170UL-120V CB-S Solid.Line Series Incubator with Hot Air Sterilization: 10 ...	Binder World CBS260UL-120V CB-S Solid.Line Series Incubator with Hot Air Sterilization: 10 ...
Price
In Stock
Controls (Life Science)	Digital	Digital
Capacity (Incubator/Oven/Chamber)	170 L	267 L
Max Temp (Incubator/Oven/Chamber)	50 C	50 C
Compare	Add to compare	Add to compare

Recommended for you

Binder World CBS170UL-120V - CO2 Incubator with Hot Air Sterilization, 170L, 120V 1Ph 50/60Hz

Internal volume: 170 Liters
Power: 120V, 1 ph, 50/60Hz
Dimensions: 28.17in x 34.28in x 26.79in
Temperature range: +6 °C above ambient temperature to +50 °C
Humidity range: 90 to 95% RH

Series CB-S incubators are suitable for routine cell cultivation applications: They are free from contamination due to 180 °C hot-air sterilization and reliable pH stability thanks to the drift-free infrared CO₂ measurement system.

MINIMAL RISK OF CONTAMINATION

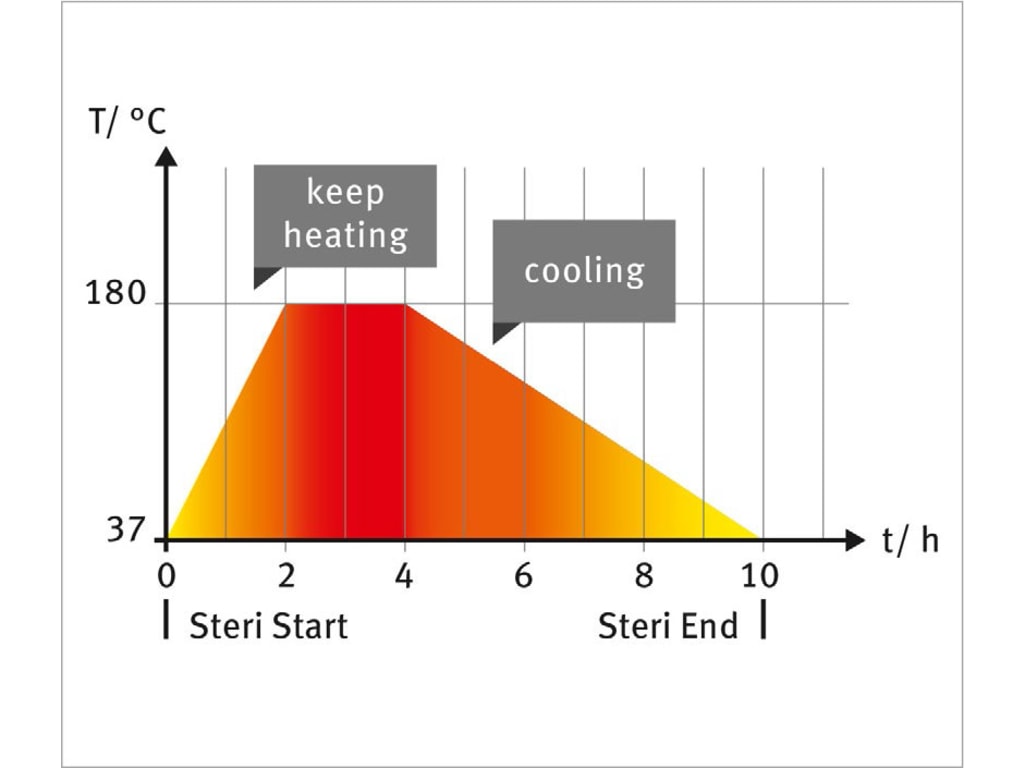

With 180 °C hot-air sterilization, complete sterilization of the entire interior is available at the push of a button. In the CB series, the CO₂ sensor is also sterilized.

OPTIMUM CELL GROWTH

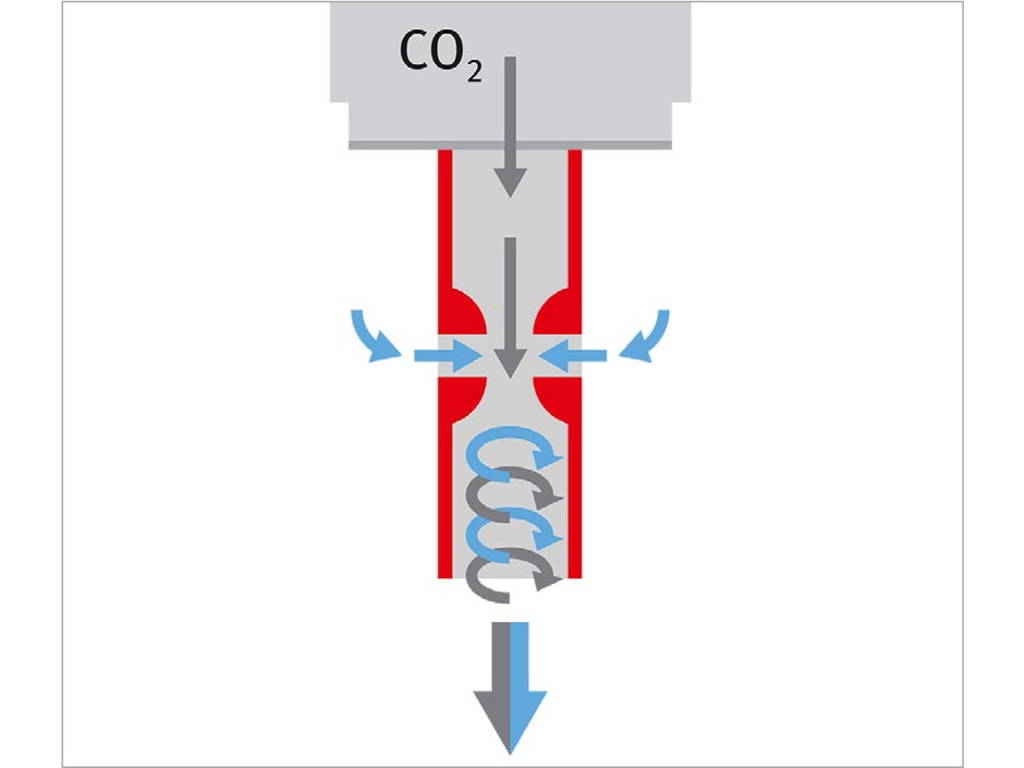

Stable pH values are attained with drift-free CO₂ sensor technology and homogeneous CO₂ distribution using the BINDER gas mixing head according to the Venturi principle.

THE “LESS IS MORE” INTERIOR CONCEPT

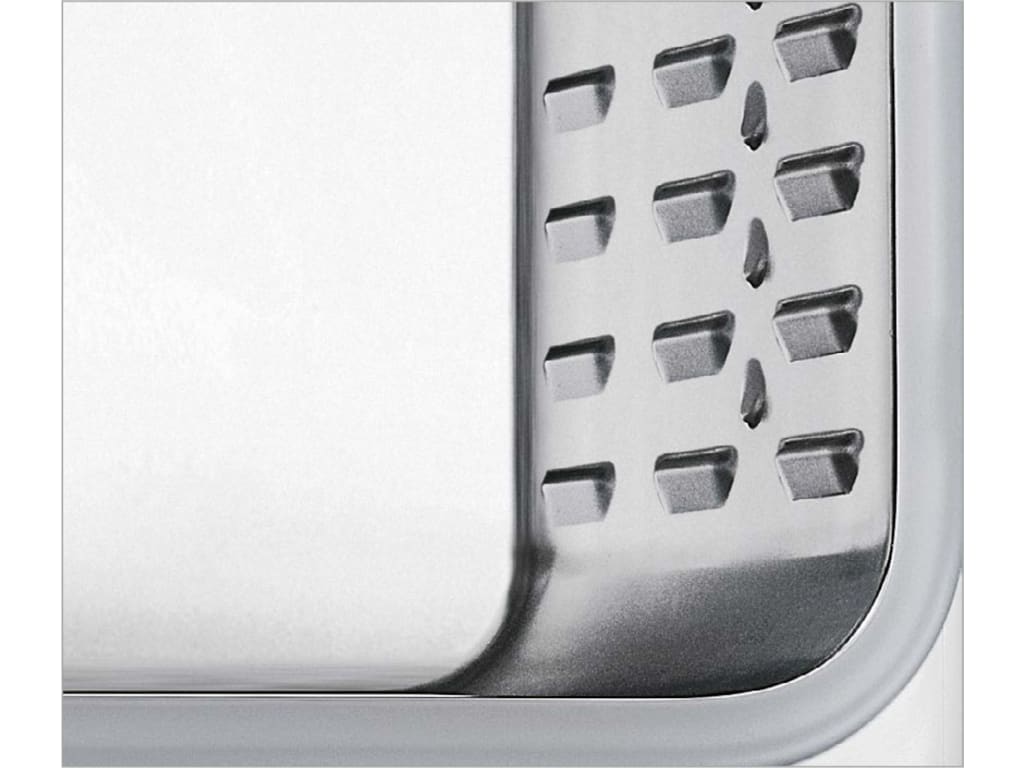

Ensures quick and easy cleaning thanks to the seamless stainless steel inner chamber, without obstructive fixtures. No consumables are required.

Binder World CBS170UL-120V Specifications
Option model	Standard
Order number	9040-0190
Performance Data Temperature
Recovery time after 30 seconds door open at 37 °C [min]	6
Temperature fluctuation at 37 °C [± K]	0.1
Temperature range +6 °C above ambient temperature to	50 °C
Temperature variation at 37 °C [± K]	0.3
Performance Data Climate
Humidity range [% RH]	90…95
CO₂-Data
CO₂ measurement	IR
CO₂ range [Vol.-% CO₂]	0…20
CO₂ Recovery time after 30 seconds door open at 5 Vol.-% CO₂ [min]	5
Electrical data
Nominal power [kW]	1.3
Phase (Nominal voltage)	1~
Power frequency [Hz]	50/60
Rated Voltage [V]	100…120
Unit fuse [A]	16
Doors
Inner doors	1
Unit doors	1
Housing dimensions not incl. fittings and connections
Depth net [in]	28.17
Height net [in]	34.28
Width net [in]	26.79
Internal Dimensions
Depth [in]	19.9
Height [in]	23.64
Width [in]	22.06
Measures
Interior volume [cu.ft.]	6
Load per rack [lbs]	22
Net weight of the unit (empty) [lbs]	198
Permitted load [lbs]	66
Wall clearance back [in]	3.94
Wall clearance sidewise [in]	1.97
Environment-specific data
Energy consumption at 37 °C [Wh/h]	45
Sound-pressure level [dB(A)]	41
Fixtures
Number of shelves (std./max.)	2/6

Incubators
Controls (Life Science)	Digital
Capacity (Incubator/Oven/Chamber)	170 L
Max Temp (Incubator/Oven/Chamber)	50 C
Min Temp (Incubator/Oven/Chamber)	6 C
Test Equipment General Attributes
Unique Features	Incubator with hot air sterilization
Warranty	1 YEARS
Interfaces I/O	LAN / Ethernet, Other, USB
Product Weight	198 LBS
Product Height	34.28 IN
Product Length	28.17 IN
Product Width	26.79 IN
Shipping Weight	227.7 LBS
