Cable Identifier on live cables

Cable Identifier on live cables
Automatic recording and analysis of transmitting pulses (ATP analysis):
- Amplitude
- Interval (time)
- Pulse direction (polarity)
Error-free detection of the pulse direction, even at a high loop resistance of up to 400 Ohm
High pulse current up to 180 A
Fully automatic gain adjustment
Expert mode for manual gain settings for clear cable identification on compact substations or mixed cable routes
Signal uncoupling by means of a flexcoupler for large cable diameters of up to 250 mm
Coupling of the transmitting pulse is effected in a galvanic or inductive manner by means of optionally available clip on current transformers
Current measurement up to 199 A
Essential for active occupational health and safety
Reliable and robust protection technology
Ergonomically designed receiver with integrated LCD display
No batteries required for the receiver
Transmitter with integrated rechargeable battery and possibility of external power supply (12 V port) optionally available

View Product Details

In Stock:

View Payment Options

Chat with us for price

Request Quote

Items in This Series



Product	BAUR/HVT KSG 200 T Cable Identifier on live cables	BAUR/HVT KSG 200 TA Cable Identifier on live cables with integrated batteries	BAUR/HVT KSG 200 A Cable Identifier on disconnected cables with integrated batteries	BAUR/HVT KSG 200 Cable Identifier on disconnected cables
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

BAUR/HVT KSG 200 T - Cable Identifier on Live Cables

Signal uncoupling by means of a flexcoupler for large cable diameters of up to 250 mm
Coupling of the transmitting pulse is effected in a galvanic or inductive manner by means of optionally available clip on current transformers
Current measurement up to 199 A
Essential for active occupational health and safety

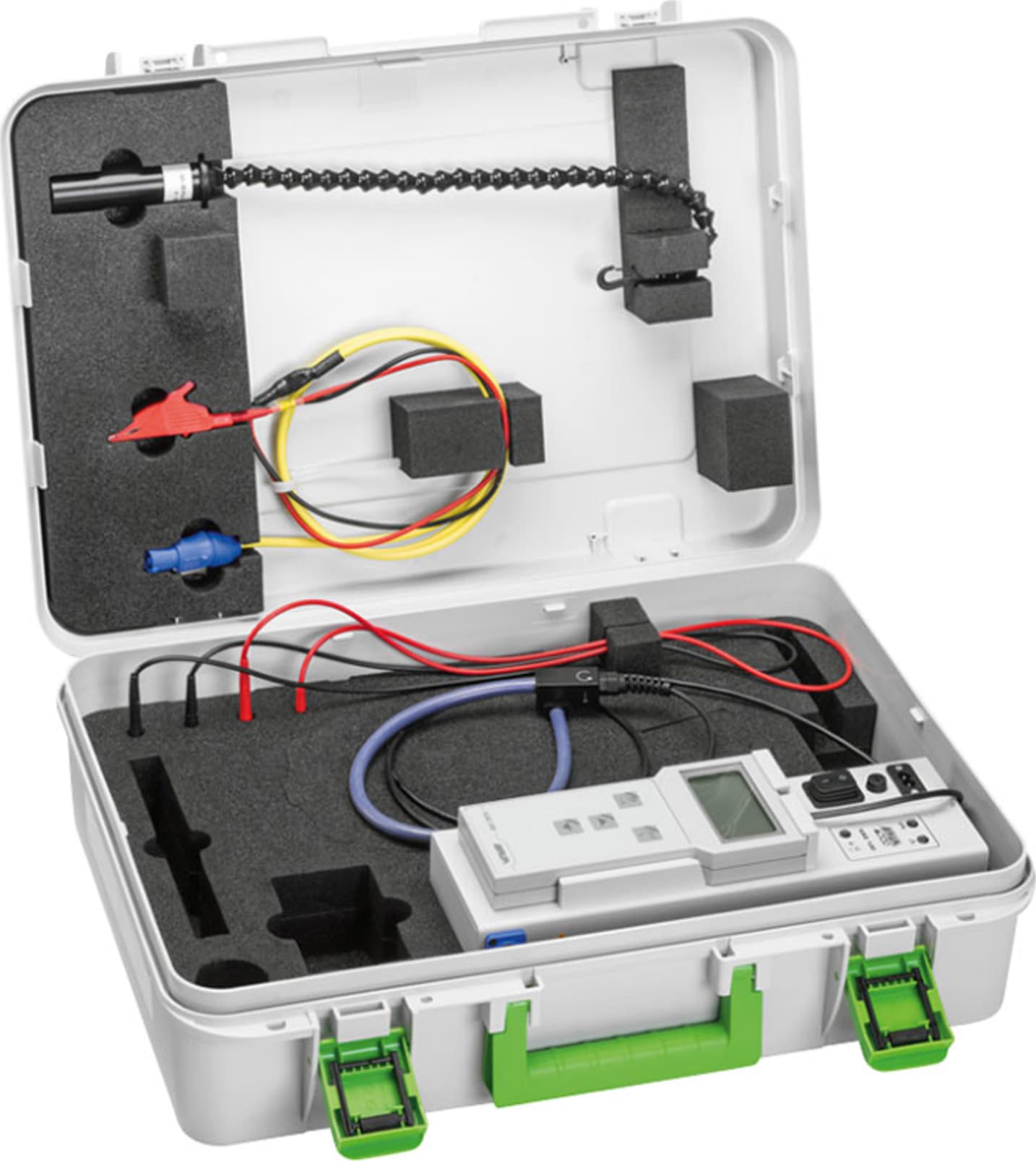

The KSG 200 T cable identification system is used to identify single- and multi-core cables in a cable bundle or cable loom. By using the KSG 200, the risk of accidentally cutting a live phase is significantly reduced.

Clear, safe, and quick cable identification

Cable identification on all types of de-energized cables
Reliable verification of the cable identification by means of the highly precise three-factor-analysis ATP
Safe cable identification on live low-voltage cables
Connection technology according to CAT IV/600 V

The KSG 200 A cable identification system is used to identify single- and multi-core cables in a cable bundle or cable loom.

The cable identification system consists of a transmitter and a receiver with a flexcoupler. Intelligent electronics enable the communication between both components and make an absolutely safe cable identification possible through time and phase synchronizing as well as automatic gain adjustment.

The operator-friendly and intuitive operation of the KSG 200 allows for it to be used immediately without extensively training the operator. The cable identification system is supplied in a convenient and stable transport case.

Functions

Cable identification on de-energized cables
Cable identification on live cables up to 400 V operating voltage
Single- and multi-core cables
Branched networks

General Specifications
Transmitter	KSG 200	KSG 200 A	KSG 200 T	KSG 200 TA
--	For cable identification on disconnected cables		For cable identification on live cables
Pulse voltage	300 V	300 V	300 V	300 V
Pulse current Max.	180A Max. 180	180A Max. 180	180A Max. 180	180A Max. 180
Pulse sequence	15 pulses/min 1	15 pulses/min 1	15 pulses/min 1	15 pulses/min 1
Power supply
Mains voltage	115/230/240 V, 50/60 Hz	--	115/230/240 V, 50/60 Hz	--
External supply	--	DC 12V	--	DC 12V
Rechargeable battery	--	NiMH rechargeable battery 12 V	--	NiMH rechargeable battery 12 V
Electric strength of output	--	--	Max. 400 V, 50/60 Hz	Max. 400 V, 50/60 Hz
Measurement Category	--	--	CAT IV/600 V	CAT IV/600 V
Measurement Category	--	--	Nominal DC or AC (line-to-neutral):600 V
Protection class	II	Not applicable in battery operation	II	Not applicable in battery operation
Degree of protection	IP40	IP40	IP40	IP40
NiMH rechargeable battery (KSG 200 A / KSG 200 TA)
Battery type	NiMH rechargeable battery 12 V (10 cells); 4.2 – 5 Ah
Battery life	Approx. 2.5 – 3.5 h
Charging time	Approx. 4.5 – 5 h
Charger	Power supply 100 – 240 V, 50/60 Hz
Output voltage	DC 10.5 – 20 V, 1 A
General information on the cable identification systems in the KSG 200 series
Ambient temperature (operation)	-10°C to +55°C
Storage temperature	-20°C to +50°C
Case dimensions (W x H x D)	Approx. 594 x 174 x 435 mm
Weight of case with transmitter and receiver	Approx. 6.2 kg (without battery) Approx. 7.7 kg (with battery)
Safety and EMC	CE compliant in accordance with Low Voltage Directive (2014/35/EU), EMC Directive (2014/30/EU), Environmental testing EN 60068-2-ff
Clip-on cureent transformer (optional)
		AZ 10/D 70	AZ 10/D 80	AZ 10/D 125
Inner diameter	D	70 mm	80 mm	125mm
Dimensions	A	133 mm	146 mm	182 mm
	B	336 mm	336 mm	317 mm
	C	126 mm	128 mm	125 mm
KSG 200 / KSG 200 T receiver
Sensor	Flexcoupler Ø 150 mm or Flexcoupler Ø 250 mm
Sensitivity with galvanic impulse coupling with inductive impulse coupling	100% at a loop resistance of 400 Ohm (I = 0.75 A) 100% at loop resistance < 6 Ohm
Load current range	0 – 199 A ± 2%, 50/60 Hz
Display	LCD display
Power supply	Automatic recharging in the holder of the transmitter
Degree of protection	IP52
Dimensions (W x H x D)	Approx. 100 x 25 x 211 mm
Weight
with flexcoupler Ø 150 mm	Approx. 360 g
with flexcoupler Ø 250 mm	Approx. 470 g
