Bluetooth Wireless Hand-Held Scanner with Associated Universal Supply Module, Standard Range
The latest generation of rugged hand-held scanners in the BCS36x8ex series for use in hazardous areas offers outstanding performance for the unparalleled scanning of 1D/2D barcodes, photos, documents, and more. The devices are based on the ZEBRA series “DS3600 Ultra-Rugged Scanners” and are now also available from BARTEC in an explosion-protected version.
The series consists of a corded (BCS3608ex) and cordless (BCS3678ex) Bluetooth version, which is used in the toughest environments in the world - in warehouses and production halls. These scanners don’t just enable every 1D or 2D barcode to be scanned from a distance of up to 21.3 m, but also capture a diverse amount of business information, thereby streamlining everyday business processes, such as OCR, documents, and photos. Irrespective of the type of data your employees need to collect, you now get all the familiar functions from the industrial application for use in a potentially explosive atmosphere. The BCS3600ex series, therefore, offers a new level of reliability for scanners
The result? The most reliable, fastest, and most accurate scanning functionality on the market, setting new standards. The hand-held scanner BCS3600ex-NI is approved for ATEX and IECEx Zone 2/22 and NEC Class I, II, III Div.2.
BCS3608 EX
The corded version is ideal for stationary applications used to collect data from 1D barcodes, 2D barcodes, postcodes, and OCR in a potentially explosive atmosphere. The rugged version offers all highly developed ergonomic and functional features required in industrial applications. The corded version requires a universal supply module to guarantee ex-compliant voltage supply and data communication.

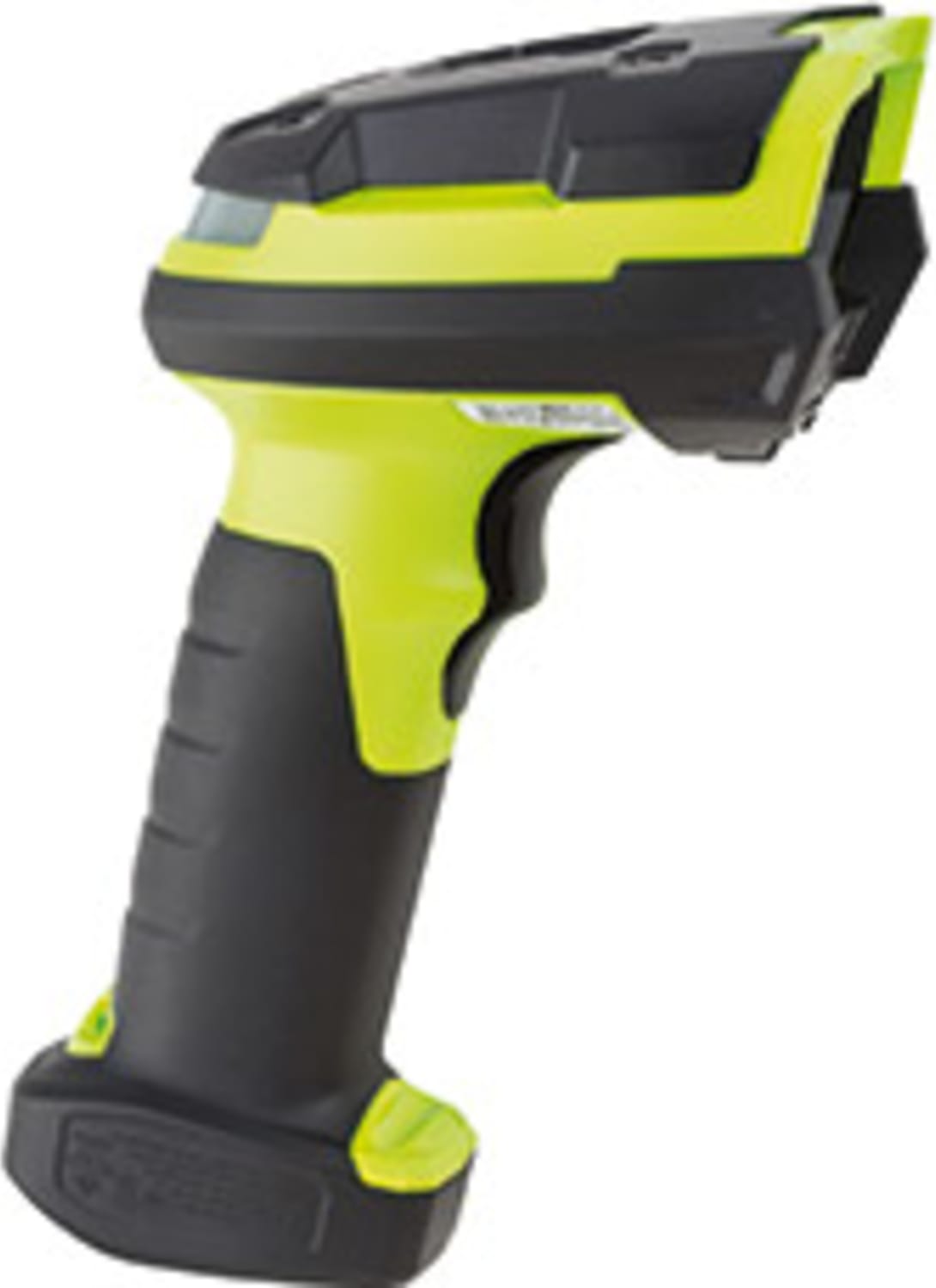

BCS3678 EX
The Bluetooth version is ideal for mobile applications used to collect data from 1D barcodes, 2D barcodes, postcodes, and OCR in a potentially explosive atmosphere. The rugged version offers all highly developed ergonomic and functional features required in industrial applications. For the Bluetooth version, there are several options for data transfer via Bluetooth.
Outstanding scan performance with 1D/2D barcodes in every environment
The advanced imager reads 1D and 2D barcodes on a monitor or labels faster and with a 30 % larger working area than comparable models of this class for unsurpassed productivity. Employees are able to successfully scan virtually any barcode at the first attempt, even if it is damaged, dirty, poorly printed, or under shrink-wrap.
Ultra-rugged - the toughest design in its class
The BCS3608ex/BCS3678ex is Bartec’s most rugged scanner yet. It has the greatest ability to withstand drops and tumbles and has the best seal in its class. Both models are dust-proof, spray-proof, and waterproof in accordance with IP 65.
More than just barcodes capture OCR, photos, and documents
With ZEBRA’s intelligent document capture, photos are taken, refocused, and corrected to make them easier to read. Several OCR typefaces are supported, ensuring fast and simple data transfer (photos can only be transferred to the host PC via the base station).
Capture and processing of up to 20 barcodes simultaneously (Multi Code Data Formatting - MDF)
Many labels have several barcodes which need to be scanned by your staff. Now, one press of the trigger captures the right barcodes and applies the unique data format required for each one for instant transmission to your back-end systems – all with complete control over the order barcodes are processed.
