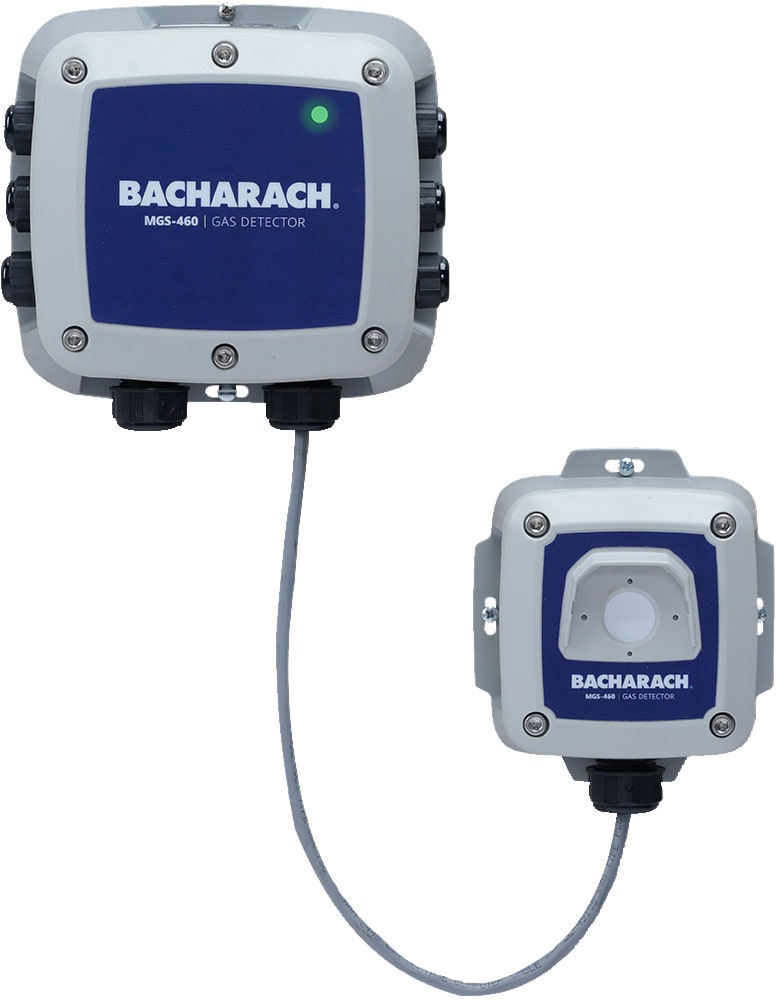

Bacharach 6302-4069 - MGS-460 Gas Detector - NH3, 0-3% Vol, Catalytic Bead

0 reviews | Model: Bacharach 6302-4069


NH3, 0-3% Vol, Catalytic Bead

  • Part number 6302-4069
  • NH3 Gas detector with Catalytic bead sensor
  • Full scale range: 0-3% volume; Alarm range: 1 - 3.0% volume
  • IP66-rated enclosure protects from dust and water ingress

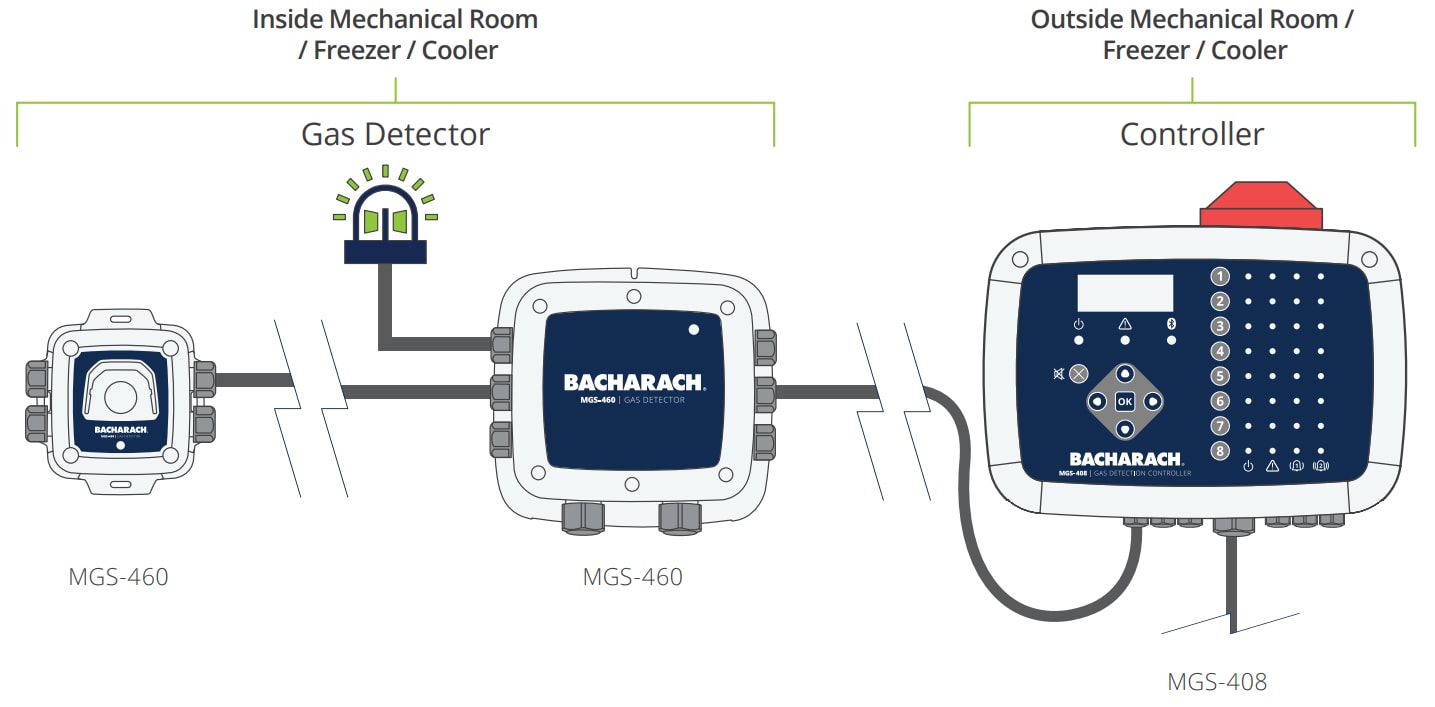

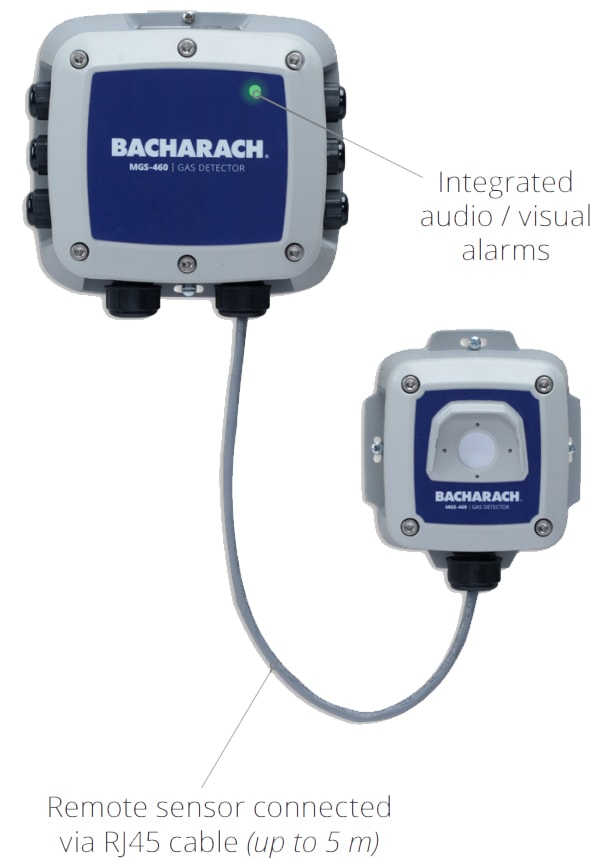

  • Remote sensor allows installation in hard-to-reach / elevated locations
  • Plug-and-play pre-calibrated sensor modules allow for quick, simple sensor replacement
  • Temperature-compensated measurements mitigate false alarms and optimize accuracy in refrigeration applications
  • Configurable analog output (4-20mA, 0-5V, 0-10V, 1-5V or 2-10V) and Modbus communications
  • Three user-configurable relays (fault, low and high alarm)
  • Integrated audible / visual alarms for refrigeration safety compliance - no additional hardware required
View Product Details

List Price: $937.00

Your Price: $881.88

Sign-in for EDU Pricing!

In Stock:
  • Free shipping over $99 - Code: FREESHIP
  • View Payment Options

Have a question? Ask an expert.


Items in This Series

Bacharach 6302-4069Bacharach 6302-4003Bacharach 6302-4026Bacharach 6302-4028Bacharach 6302-4040Bacharach 6302-4041Bacharach 6302-4052Bacharach 6302-4053Bacharach 6302-4054Bacharach 6302-4070Bacharach 6302-4090Bacharach 6302-4091Bacharach 6302-4092Bacharach 6302-4093Bacharach 6302-4095Bacharach 6302-4101Bacharach 6302-4103Bacharach 6302-4105Bacharach 6302-4107Bacharach 6302-4109Bacharach 6302-4111Bacharach 6302-4123Bacharach 6302-4126Bacharach 6302-4152Bacharach 6302-4155Bacharach 6302-4156Bacharach 6302-4157Bacharach 6302-4158Bacharach 6302-4159Bacharach 6302-4160Bacharach 6302-4161Bacharach 6302-4163Bacharach 6302-4164Bacharach 6302-4165Bacharach 6302-4166Bacharach 6302-4167Bacharach 6302-4169Bacharach 6302-4170Bacharach 6302-4301Bacharach 6302-4029Bacharach 6302-4171Bacharach 6302-4172Bacharach 6302-4310Bacharach 6302-4037
ProductBacharach 6302-4069 NH3, 0-3% Vol, Catalytic BeadBacharach 6302-4003 MGS-460 - O2 low alarm 0-30%Bacharach 6302-4026 MGS-460 - NH3 0-100 ppm, LO TEMPBacharach 6302-4028 MGS-460 - NH3 0-1,000 ppm, LO TEMPBacharach 6302-4040 MGS-460 - CO 0-500 ppmBacharach 6302-4041 MGS-460 - NO2 0-20 ppmBacharach 6302-4052 MGS-460 - R600 0-100% LEL*Bacharach 6302-4053 MGS-460 - CH4 0-100% LEL*Bacharach 6302-4054 MGS-460 - R290 0-100% LEL*Bacharach 6302-4070 MGS-460 - NH3 0-100% LELBacharach 6302-4090 MGS-460 - CO2 0-5,000ppmBacharach 6302-4091 MGS-460 - CO2 0-10,000ppmBacharach 6302-4092 MGS-460 - CO2 0-20,000ppmBacharach 6302-4093 MGS-460 - CO2 0-30,000ppmBacharach 6302-4095 MGS-460 - CO2 0-50,000ppmBacharach 6302-4101 MGS-460 - R134a 0-1,000ppmBacharach 6302-4103 MGS-460 - R404A 0-1,000ppmBacharach 6302-4105 MGS-460 - R407A 0-1,000ppmBacharach 6302-4107 MGS-460 - R410A 0-1,000ppmBacharach 6302-4109 MGS-460 - R22 0-1,000ppmBacharach 6302-4111 MGS-460 - R507A 0-1,000ppmBacharach 6302-4123 MGS-460 - R407C 0-1,000ppmBacharach 6302-4126 MGS-460 - R407F 0-1,000ppmBacharach 6302-4152 MGS-460 - R1234ze 0-1,000ppm Bacharach 6302-4155 MGS-460 - R32 0-1,000ppmBacharach 6302-4156 MGS-460 - R448A 0-1,000ppm Bacharach 6302-4157 MGS-460 - R452A 0-1,000ppmBacharach 6302-4158 MGS-460 - R513A 0-1,000ppmBacharach 6302-4159 MGS-460 - R434A 0-1,000ppm Bacharach 6302-4160 MGS-460 - R450A 0-1,000ppmBacharach 6302-4161 MGS-460 - R1234yf 0-1,000ppmBacharach 6302-4163 MGS-460 - R452B 0-1,000ppmBacharach 6302-4164 MGS-460 - R454A 0-1,000ppmBacharach 6302-4165 MGS-460 - R422 0-1,000ppm Bacharach 6302-4166 MGS-460 - R422D 0-1,000ppmBacharach 6302-4167 MGS-460 - R427A 0-1,000ppmBacharach 6302-4169 MGS-460 - R449A 0-1,000ppmBacharach 6302-4170 MGS-460 - R454C 0-1,000ppmBacharach 6302-4301 MGS-460 - R290 0-5,000ppmBacharach 6302-4029 Gas type: NH3, Detection Range: 0-300 ppm, Sensor Type: Electro-Chemic ...Bacharach 6302-4171 Gas type: R454B, Detection Range: 0-1,000ppm, Sensor Type: Semi-conduc ...Bacharach 6302-4172 Gas type: R455A, Detection Range: 0-1,000ppm, Sensor Type: Semi-conduc ...Bacharach 6302-4310 R290, 0-2,500ppm, Semi-conductorBacharach 6302-4037 NH3, 0-5,000 ppm, Electro-Chemical
Price
In Stock
Application (Gas Detection)Toxic GasToxic GasToxic GasRefrigerantCombustible / LELRefrigerantToxic GasRefrigerantRefrigerantRefrigerantRefrigerantRefrigerantRefrigerantRefrigerantRefrigerantRefrigerantRefrigerantRefrigerantRefrigerantRefrigerantRefrigerantRefrigerantRefrigerantRefrigerantRefrigerantRefrigerantRefrigerantRefrigerantRefrigerantRefrigerantRefrigerantToxic GasRefrigerantRefrigerantRefrigerantToxic Gas
Gas SelectionAmmoniaO2AmmoniaAmmoniaCOOtherR-600MethaneR-290AmmoniaCO2CO2CO2CO2CO2R-134AR-404AR-407AR-410A R-22R-507AR-407CR-407FOtherR-32OtherOtherOtherOtherOtherR-1234YFOtherOtherR-422R-422DOtherOtherOtherR-290AmmoniaOtherOtherR-290Ammonia
