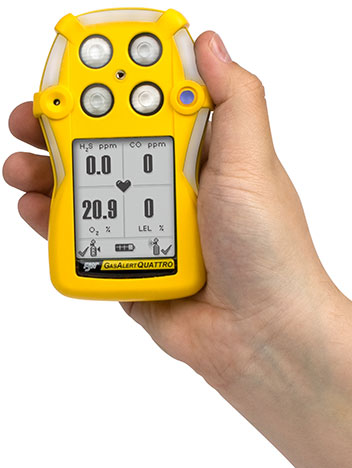

Rugged and reliable, the GasAlertQuattro four-gas detector combines a comprehensive range of features with simple one-button operation. With flexible power options, the GasAlertQuattro is always ready. The graphic LCD displays easy to identify icons that indicate operational information, such as bump test and calibration status for simplified onsite auditing. IntelliFlash provides continuous visual confirmation of detector operation and compliance. Suited to a wide range of industrial applications including confined space entry, the GasAlertQuattro is fully compatible with BW’s MicroDock II automatic test and calibration system.
GasAlertQuattro QT-XUHM-R-Y-NA-CS
The GasAlertQuattro displays real-time gas concentrations readings for up to four gas hazards including hydrogen sulfide (H2S), carbon monoxide (CO), oxygen (O2) and combustible gases (%LEL & % by volume). Audible, visual & vibrating alarms alert users to unsafe conditions while downloadable datalogging provides exposure reporting.
The GasAlertQuattro features IntelliFlash, a green LED confidence flash that verifies normal operation to both the user and supervisors from up to 20 ft. / 6.10 m.

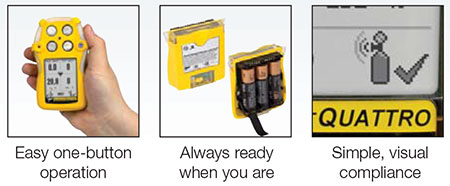

With easy to identify bump test & calibration icons and power options that outlast normal shifts - 20 hours with rechargeable batteries and 14 hours with alkaline batteries.
- Minimize costs and training with one-button operation
- Field-proven SureCell sensors offer an unprecedented performance in even the harshest environments
- Interchangeable power options with extended battery runtimes for longer shifts
Features & Benefits
- Compact and lightweight design makes it comfortable to wear
- Simple one-button operation for ease of use
- Compatible with MicroDock II

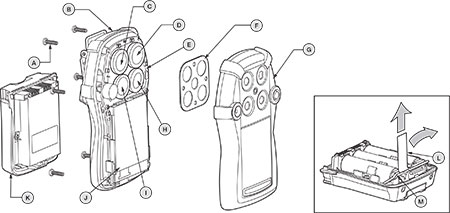

GasAlertMicro 5 Display Elements
| Legend |
Service Parts |
Part Number |
| G |
Replacement front enclosure (yellow) |
QT-FC1 |
| Replacement front enclosure (black) |
QT-FC1B |
| B |
Replacement back enclosure (yellow) with screws |
QT-BC1 |
| Replacement back enclosure (black) with screws |
QT-BC1B |
| E |
Replacement main PCB and sensor PCB kit |
QT-PCB-K1 |
| F |
Replacement quad sensor screen (kit of 2) |
QT-SS |
| Replacement quad sensor screen (kit of 10) |
QT-SS-K1 |
| J |
Replacement LCD kit |
QT-LCD-K1 |
| Replacement vibration motor |
GA-VM-2 |
| A |
Replacement screw kit (kit of 40 screws) |
QT-SCREW-K1 |
How to Replace a Sensor
- With detector OFF, remove battery pack from back of instrument
- Use No. 1 Phillips screwdriver to remove 6 screws from back enclosure (B)
- Lift front enclosure (G) straight up
- Remove sensor (C, D, H, I) from PCB (C) by pulling straight up
- Insert new sensor (C, D, H, I) into socket
- Replace front enclosure (G)
- Replace 6 screws in back enclosure (B) and hand-tighten until firm
How to Replace the Sensor Screen
- With detector OFF, remove battery pack from back of instrument
- Use No. 1 Phillips screwdriver to remove 6 screws from back enclosure (B)
- Lift front enclosure (G) straight up
- Remove sensor screen (F) from front enclosure (G) by pulling straight up
- Insert new sensor screen (F) into front enclosure (G)
- Replace front enclosure (G)
- Replace 6 screws in back enclosure (B) and hand-tighten until firm
How to Replace the Alkaline Batteries in the Battery Pack
- With detector OFF, remove battery pack from back of instrument
- On battery pack, pull on tab (L) until ejector bar (M) releases from the ejector bar holder
- Pull ejector bar (M) straight up (on side opposite of tab) until batteries dislocate from battery pack
- Insert new batteries, one by one, inserting positive (+) end first
- Important: push the ejector bar (M) into the lever holder until fully secured*
- Insert battery pack into detector
*Failure to perform step 5 properly could result in
damage to the batteries, battery pack and/or detector
