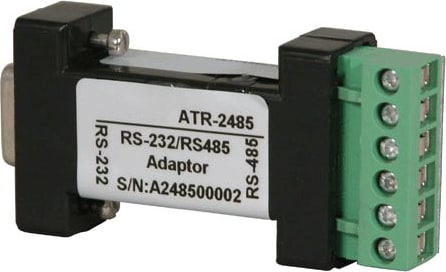

B&K Precision ATR-2485 - RS 232 to RS 484 Adaptor

Name: B&K Precision ATR-2485 - RS 232 to RS 484 Adaptor
Brand: B&K Precision
SKU: BKATR-2485
Price: 99.27 USD
Availability: InStock

0 reviews | UPC: 817050632484 | Model: B&K Precision ATR-2485

Compare

RS 232 to RS 485 adapter for models 1696, 1697 and 1698

No driving software needed
Can directly connected to male RS-232 communication port of your PC
Optical isolated
For models 1696, 1697 and 1698 power supplies

View Product Details

List Price: $109.00

Your Price: $99.27

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded.
View Payment Options

Request Quote

Recommended for you

BK Precision ATR-2485

No driving software needed
Can directly connected to male RS-232 communication port of your PC
Optical isolated
For models 1696, 1697 and 1698 power supplies

RS 232 to RS 484 Adaptor

RS 485 Adaptor to connect multiple power supplies together on one COM port. This converter is designed for connecting your PC with an RS-232 communication port to RS-485 interface programmable power supplies/other equipment. Its transmission length can be up to 1000m.

BK Precision ATR-2485 Specifications
RS-232 side of the Converter	DB-9 female connector
RS-485 of the converter	3-pin connector pin 2: RS-485 (+A) pin 3: RS-485 (-B) pin 4: GND
Connected Speed	up to 9600bps
Transmission Length	up yo 1000m
Dimension	33mm (W) x 17mm (H) x 87mm (D)
Weight	40g

Tech Specs

Test Equipment General Attributes
Product Weight	0.50 LBS
Product Height	1.90 IN
Product Length	3.80 IN
Product Width	3.00 IN
Country of Origin	China
Shipping Height	1.90 IN
Shipping Length	3.80 IN
Shipping Width	3.00 IN
