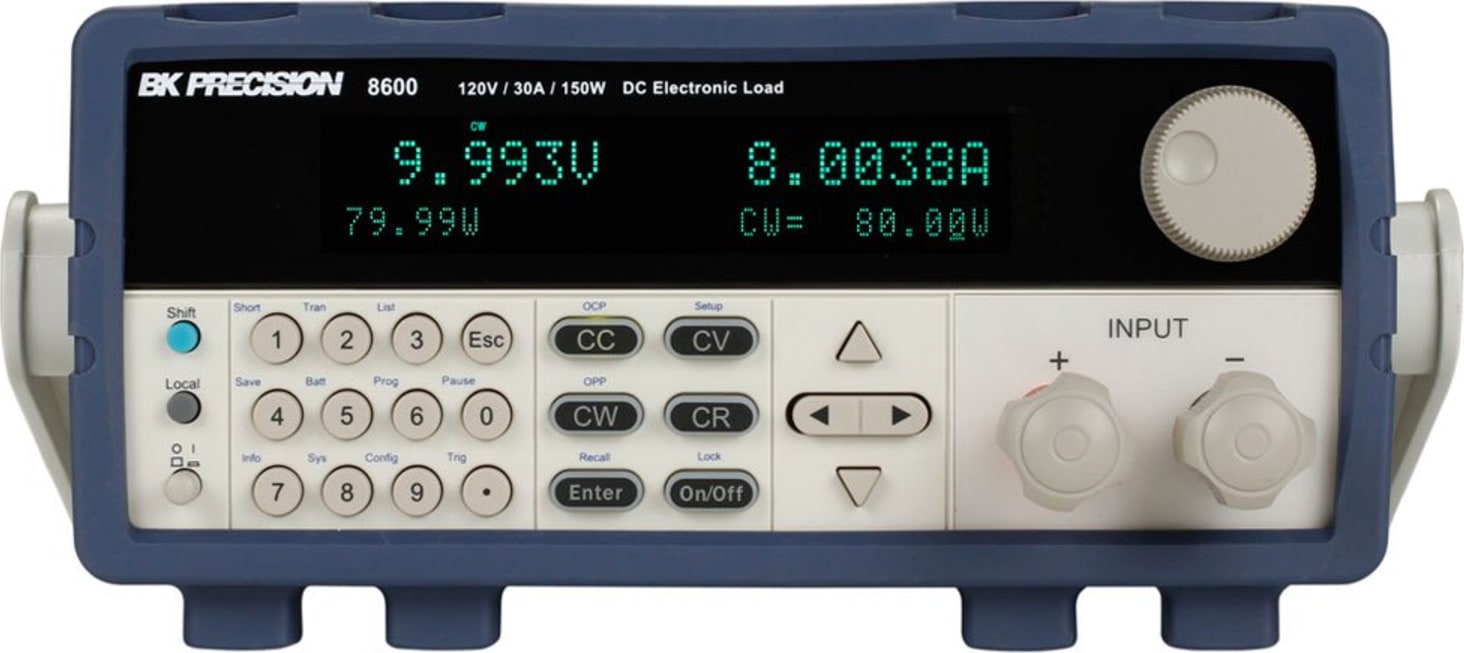

B&K Precision 8600EXD - 150W DC Electronic Load (220V)

Name: B&K Precision 8600EXD - 150W DC Electronic Load (220V)
Brand: B&K Precision
SKU: BK8600EXD
Price: 1050.00 USD
Availability: InStock

0 reviews | Model: B&K Precision 8600EXD

Compare

150W DC Electronic Load (220V)

Power: 150 W
Voltage: 220V
Current: 30A
CC/CV/CR/CW operating modes
Transient mode up to 25 kHz
16-bit resolution voltage and current measurement
List mode function
Adjustable slew rate in CC mode
Short circuit test
Built-in battery test function with voltage level, capacity level, and timer stop conditions
CR-LED mode to simulate the loading behavior of typical LEDs
Remote voltage sensing to compensate for the effect of voltage drop in wires

View Product Details

List Price: $1,050.00

In Stock:

View Payment Options

Recommended for you

BK Precision 8600EXD - 150W DC Electronic Load (220V)

The BK Precision 8600EXD programmable DC electronic load provides the performance of modular system DC electronic loads in a compact benchtop form factor. With fast transient operation speeds up to 25 kHz, and high 16-bit measurement resolution and accuracy, this DC load can be used for testing and evaluating a variety of DC sources such as DC power supplies, DC-DC converters, batteries, battery chargers, and photovoltaic arrays.

This DC electronic load can operate in constant current (CC), constant voltage (CV), constant resistance (CR), and constant power (CW) mode. The instrument provides flexible triggering capabilities, analog current control and monitoring, and standard USB (USBTMC-compliant), GPIB, or RS-232 serial interfaces for remote communication.
